NEJE E80 User Manual

Focus

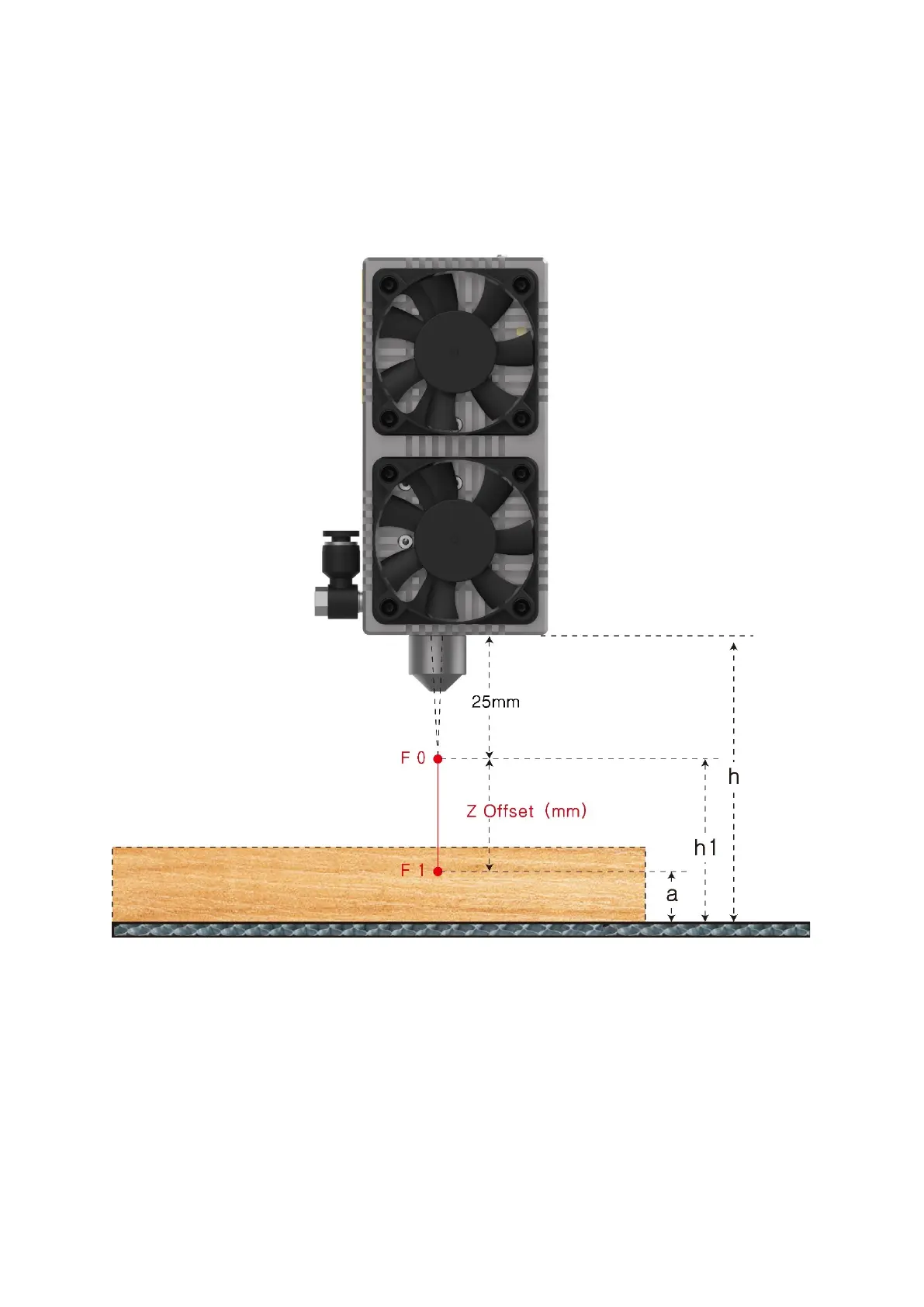

E80 is a fixed focus module, the fixed focus position is 25mm away from the body as shown in the
figure below.
E80 is a quasi-industrial-grade fixed-focus module. Unlike CO2 lasers, the 450nm
semiconductor laser is visible, and the intensity of weak light can be set. Observe the
minimum focus by observing the fluorescence reflected on the surface of the grey
cardboard through protective glasses Location.
NEJE E80 recommends using NEJE Max 4 equipment control, through variable Z-axis multi-
layer sinking settings, cutting from the material surface layer by layer to achieve high
efficiency cutting.
Operation steps controlled by the Z-axis:

NEJE E80 Specifications

General

Input Voltage	DC 12V
PWM/TTL Input	TTL
Adapter plug	5.5mm x 2.1mm
Laser Power	10W
Supported Materials	Wood, Leather, Paper
Connection	USB
Software Compatibility	LightBurn, LaserGRBL
Operating System Compatibility	Windows, macOS, Linux
