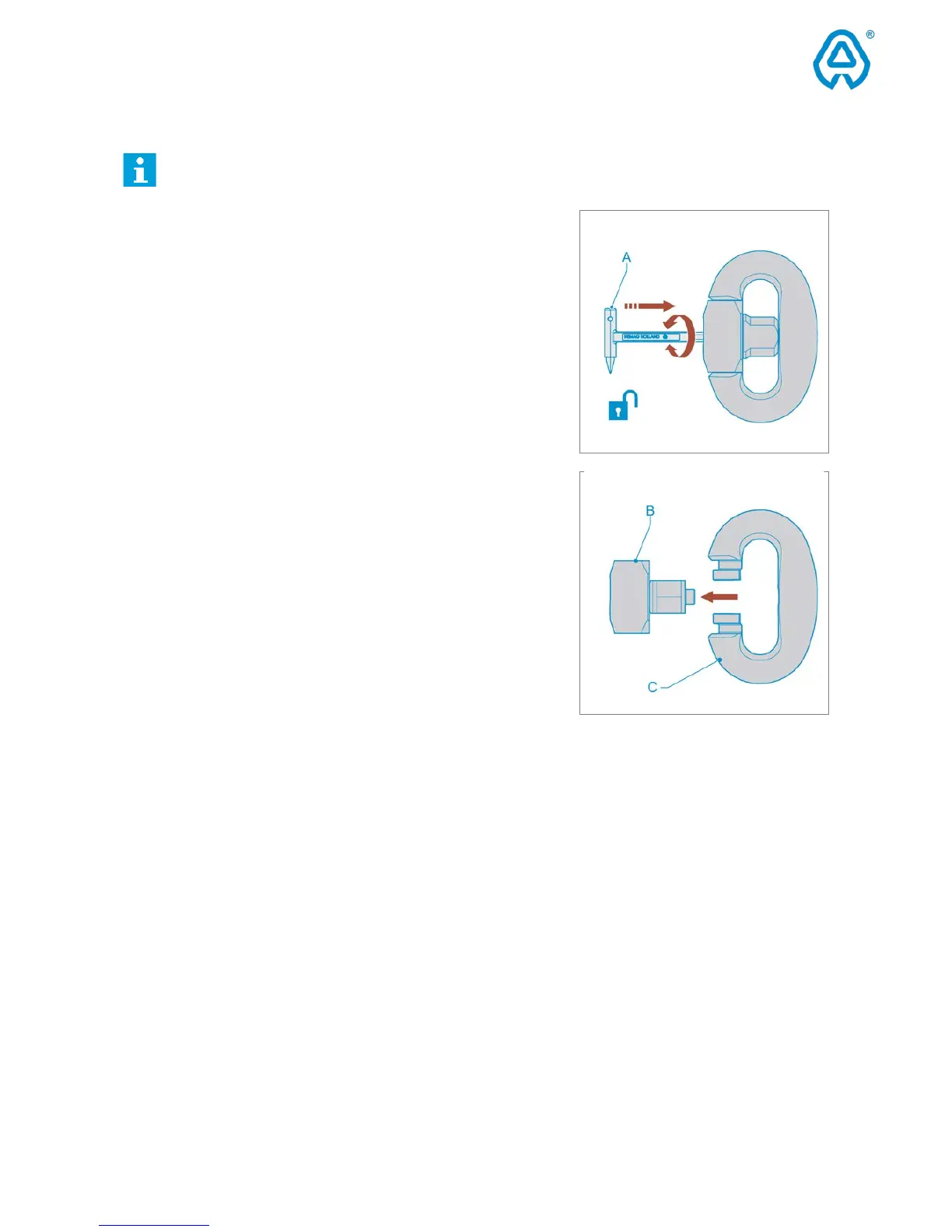

5.2 Remove the locking piece
NOTE
If necessary, use the chisel point of the key
to remove dirt from the inside hexagon bolt of the locking piece.
1.
lace the hexagon tip of the key (A) in the inside hexagon bolt of the locking
piece.
2.
Use the key to push the mechanism inside to the stop.
3.
Keep the mechanism pressed in and rotate the key (A) 90° to the left or to the
right. The locking piece (B) is released.
4.
Take the locking piece (B) out of the ‘C’ section (C).
