5 Operation

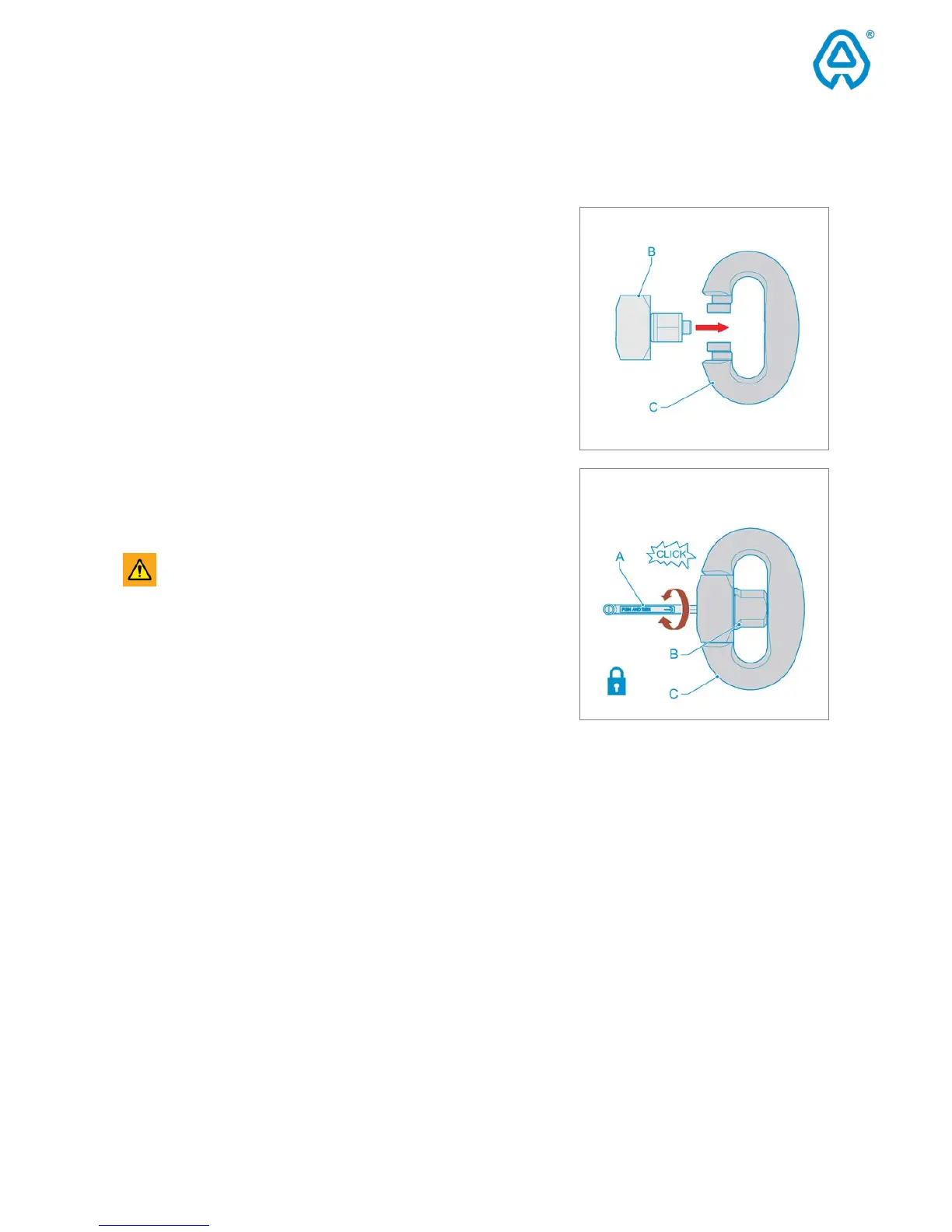

5.1 Install the locking piece
1.
Slide the locking piece (B) on the ‘C’ section (C).
2.
Place the hexagon tip of the key (A) in the inside hexagon bolt of the locking
piece.
3.
Rotate the key (A) 90° to the left or to the right. This locks the locking piece (B)
on the ‘C’ section (C).
WARNING
The locking piece is only safely locked if:
•
A ‘click’ is heard.
•
The inside hexagon bolt cannot be rotated any further with the key.
•
The inside hexagon bolt comes up at least 3.5 mm in the chamber of
the locking piece.
