3 Technical specifications
NOTE
The working load is the recommended maximum load for grabbing operations when NEMAG Quick Release Links and
NEMAG Rope Pear Sockets pass over a wide ‘U’ cable sheave. For other applications, you must adhere to a safety factor that
is in li
ne with official local and international directives.

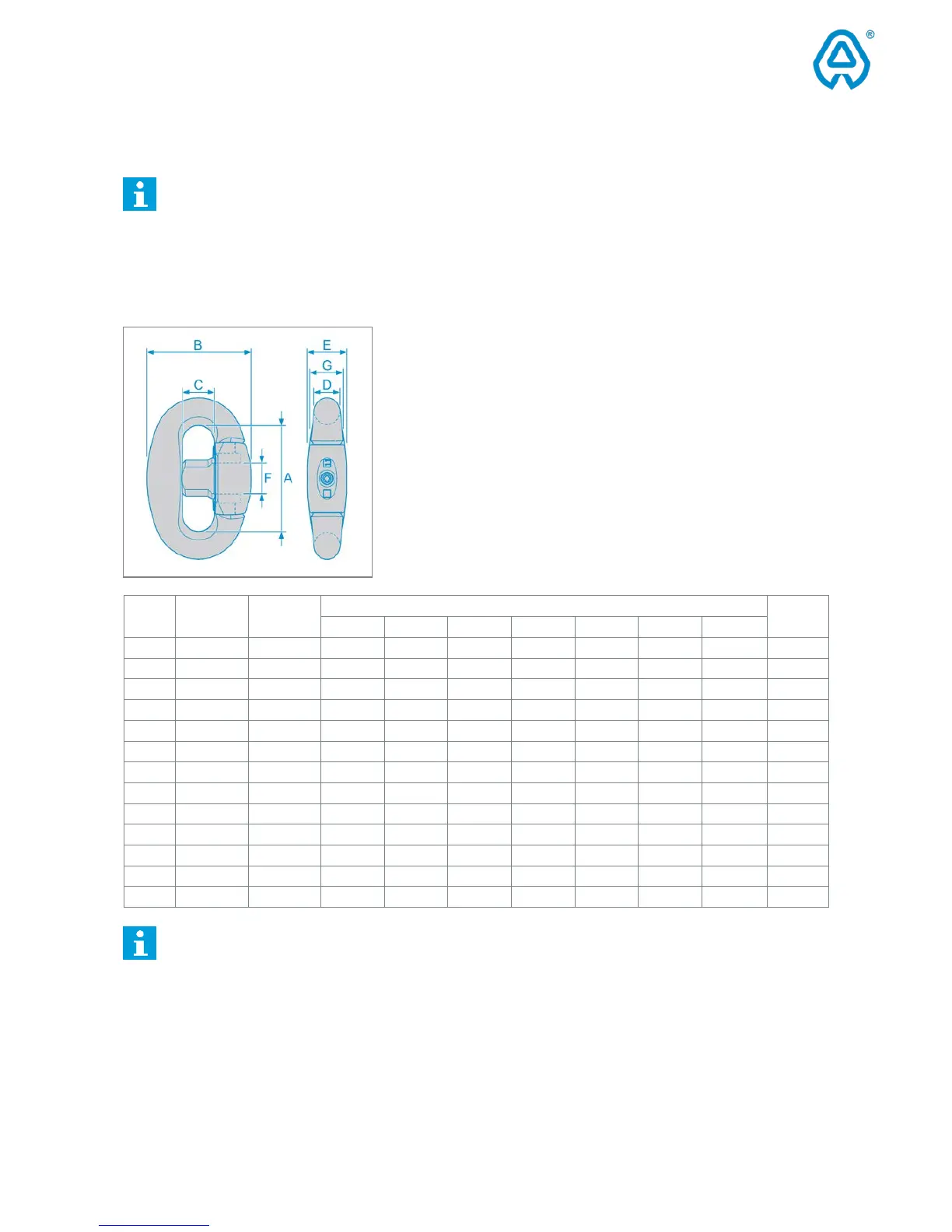

3.1 NEMAG Quick Release Links
Link
size
Working
load (kg)
Breaking
load (kg)
Dimensions (mm) Weight
(kg)
A B C D E F G
4 3,000 25,000 76 76 24.5 19 30 21 25.2 1.0
5
4,500 33,000 84 84 27 21 32.5 23 28 1.3
6
5,000 37,500 92 92 29.5 23 35 25 30.3 1.6
7 7,000 49,000 100 100 32 25 38 28 32.8 2.0
8 8,000 54,000 108 108 34.5 27 40.5 31 35.3 2.6
9 9,500 60,000 116 116 37 29 43.5 34 38 3.0
10
12,000 75,000 128 128 40.5 32 48 37 41.6 4.2
11
15,000 95,000 140 140 44 35 53 40 45.8 5.5
12 17,000 110,000 152 152 47.5 38 57 43 49.6 7.1
13 21,000 135,000 164 164 51 41 61.5 46 53.4 9.1
14 26,000 160,000 176 173 54 44 66 50 58 10.8
15
30,000 175,000 188 188 58 47 70.5 52 61 13.7
17
42,500 260,000 222 222 68 56 84 62 71 22.8
NOTE
The force transmitting parts of the NEMAG Quick Release Link are made of material in accordance with the specifications laid
down in standard EN 1677
-1 Components for slings – Forged steel components – Grade 8.
