Nemag | User Manual | Quick Release Link EN | Revision 1.3
6

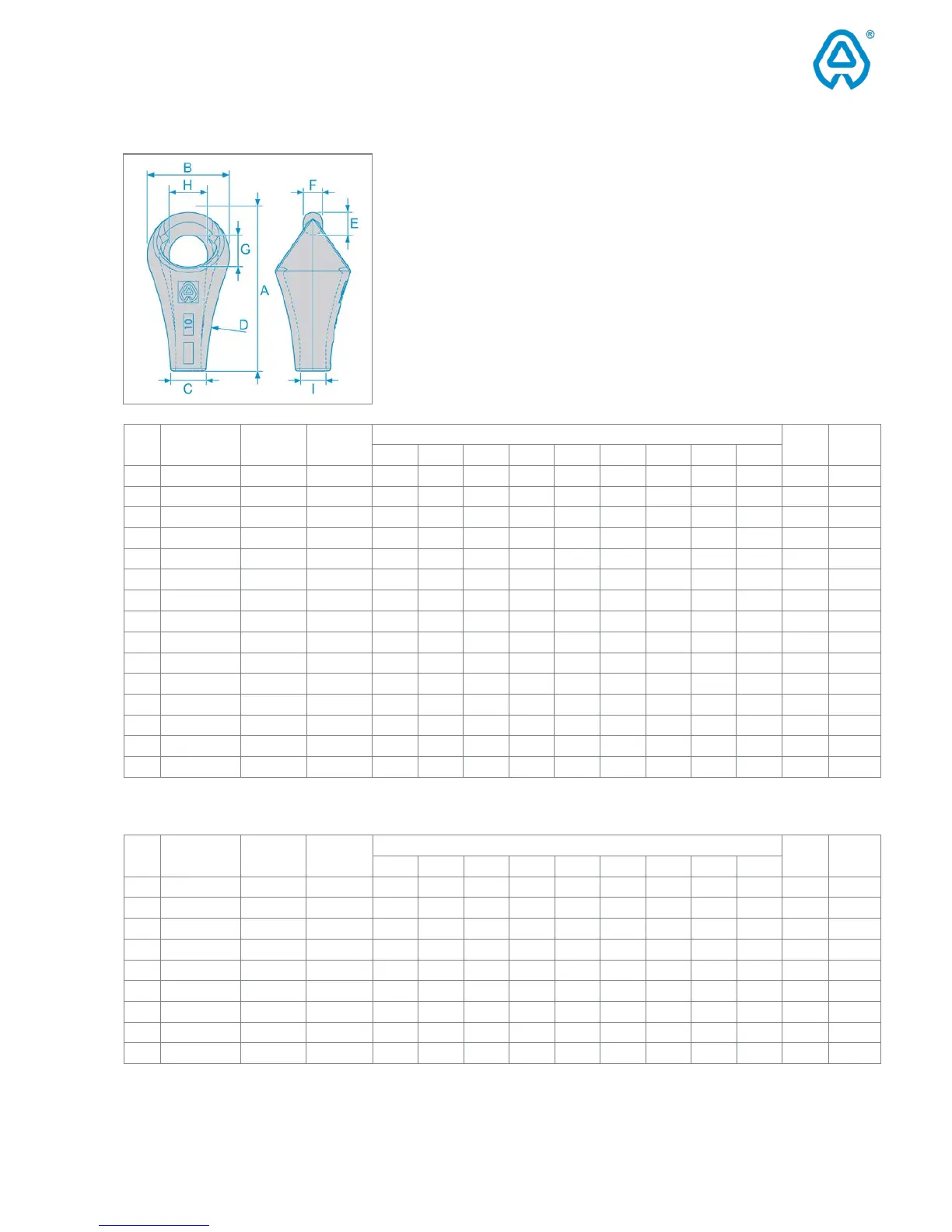

3.2 NEMAG Rope Pear Sockets
Pear
size
Wire rope
diam. (mm)
Working
load (kg)
Breaking
load (kg)
Dimensions (mm)
L
(mm)
Weight
(kg)
A
B
C
D
E
F
G
H
I
2 12-13 2,000 14,000 95 56 25 195 15.5 13.5 22 25 16 41 0.4
3 14-15 2,500 17,500 109 64 28 220 17.5 15.5 24 29 19 48 0.7
4
16-17 3,000 22,500 123 70 31 220 19.5 17.5 26 31 21 58 0.9
5
18-19 4,500 27,500 135 84 33 245 21 19 30 42 23 64 1.4
6
20-21
5,000
35,000
152
84
36
310
23
21
33
38
26
74
1.6
7 22-24 7,000 42,500 166 100 40 310 26 23 37 48 30 78 2.2
8 25-27 8,000 52,500 186 100 43 350 28 25 39 44 32 90 2.5
9
28-30 11,000 70,000 202 120 45 350 32 28 40 58 35 98 3.7
10
31-33 13,000 85,000 222 120 52 445 32 28.5 45 56 39 110 4.0
11
34-36
15,000
95,000
239
142
55
445
36
31.5
50
70
42
110
6.1
12 37-39 17,000 110,000 264 142 60 495 39 34.5 51 64 45 130 6.3
13 40-42 21,000 125,000 285 166 63 555 43 36.5 59 80 48 132 8.8
14
43-45 26,000 155,000 312 166 68 595 47 40 62 72 51 155 10.7
15
46-48 30,000 180,000 337 170 75 595 51 44 66 68 55 170 11.6
17
52-56
42,500
240,000
400
220
84
880
60
54
75
90
63
200
22.1
NEMAG Rope Pear Sockets type S
Pear
size
Wire rope
diam. (mm)
Working
load (kg)
Breaking
load (kg)
Dimensions (mm)
L
(mm)
Weight
(kg)
A
B
C
D
E
F
G
H
I
924 22-24 11,000 70,000 192 133 40 325 31 27 40 58 29 96 4.1
1026 25-27 13,000 85,000 212 143 43 375 35 30.5 43 60 32 108 5.0
1130
28-30 15,000 95,000 239 156 45 400 36 31.5 50 70 35 122 6.0
1232
31-33 17,000 110,000 249 165 52 425 39 34.5 57 72 38 118 8.2
1336
34-36
21,000
125,000
257
184
62
450
43
36.5
60
80
42
118
9.1
1440 37-40 26,000 155,000 297 192 60 475 47 40 62 80 46 142 11.8
3221 42-44 32,500 189,000 314 204 66 425 53 46 70 80 49 144 13.8
1548
46-48 30,000 180,000 329 192 67 575 51 44 66 80 57 157 12.4
1648
46-48 36,000 215,000 343 218 70 500 56 50 75 90 54 157 16.3
