4 Description and function
4.1 Overview

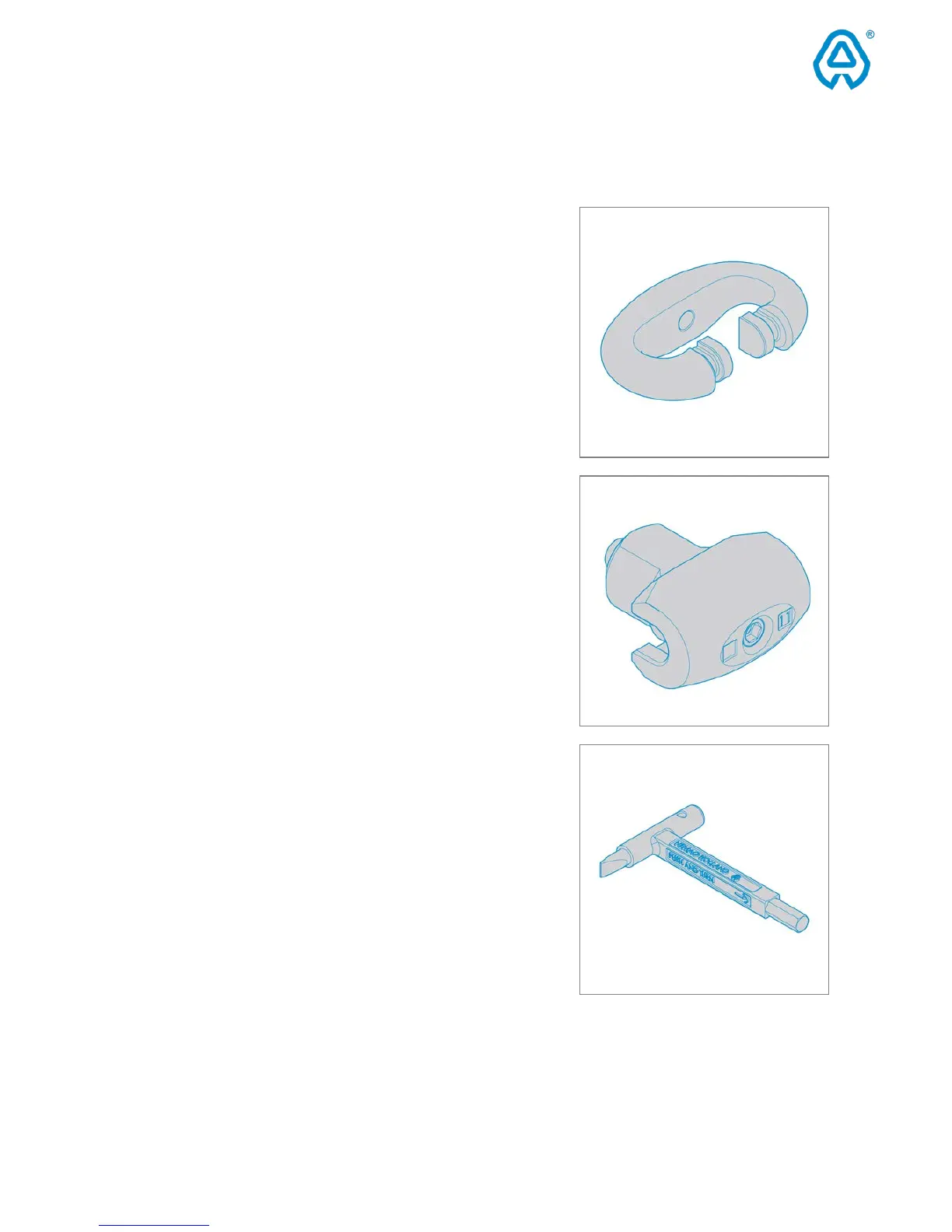

The 'C' section is forged of a steel alloy that is not subject to ageing. It is quenched
and tempered up
to a tensile strength of 1000-1100 N/mm2. The inside of the bow
is induction hardened for extra wear resistance.
The 'C' section has been accurately machined, so that exchange of parts is possible
The locking piece closes the 'C'
section. A spring-loaded bolt that can be operated
swiftly with the key secures the locking piece. The locking piece has these parts:
The force transmitting body, which is forged of steel that is not subject to
ageing. It is quenched and tempered up to a tensile strength of 800-1000
N/mm2.
The locking mechanism, which is made of high-tensile CrMo steel. It is sealed
to prevent the ingress of dirt and lifetime lubricated with a compound lubricant.
The spring-loaded 10 mm inside hexagon bolt, which is fully countersunk in the
body.
The key has a 10 mm outer hexagon tip that fits in the inside hexagon bolt of the
locking piece. The handle is big enough to exert a rotating as well as a pressing
force.
One side of the handle has a chisel point to clean
the inside hexagon bolt if
necessary. The other side of the handle has a hammer face.
