Document No. DOC-IPC-003,
User Manual iPC-Series & nPC300, Rev C Rel. 11-2014 Page 25 of 27
Chapter 3. – iPC CPU and BIOS
Consult the appropriate iPC-Series CPU Board User manuals for more detailed specifications of the CPU
board and BIOS details. This section will concentrate on the features of the iPC-Series units that are
externally accessible.

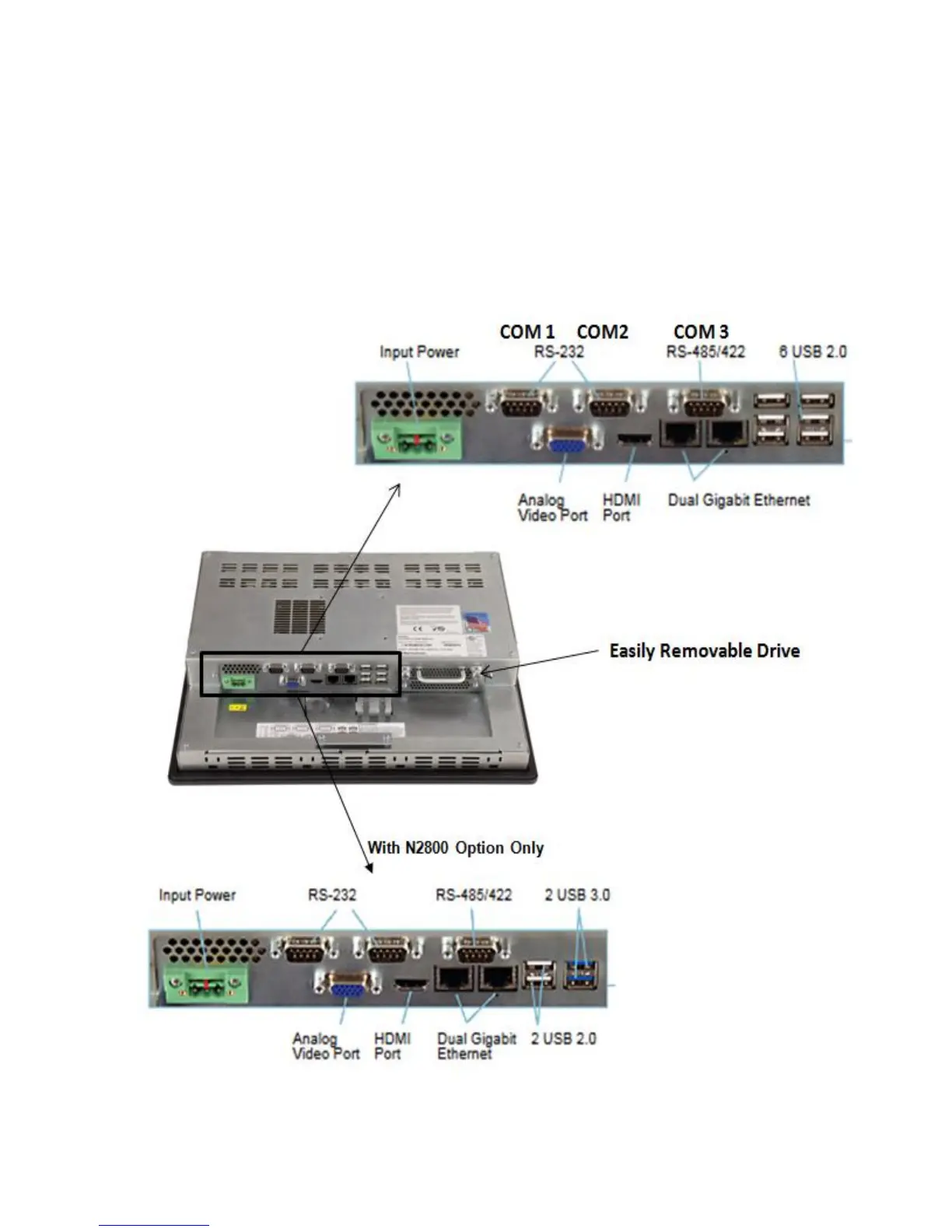

External I/O Connections
The following figure shows the externally accessible connections.
