Specifications
Front Panels
The iPC series has NEMA 4/4X/12 (IP66) sealed front panels when mounted in an appropriate NEMA
rated enclosure. The front panels and required cutouts are exactly the same as the appropriate size ePC-
Series or M-Series units for easy migration to the iPC-Series from the other units. See Chapter 2 for more
details on installation and selection of an appropriate enclosure. All four sizes have very similar front panels
with different dimensions.

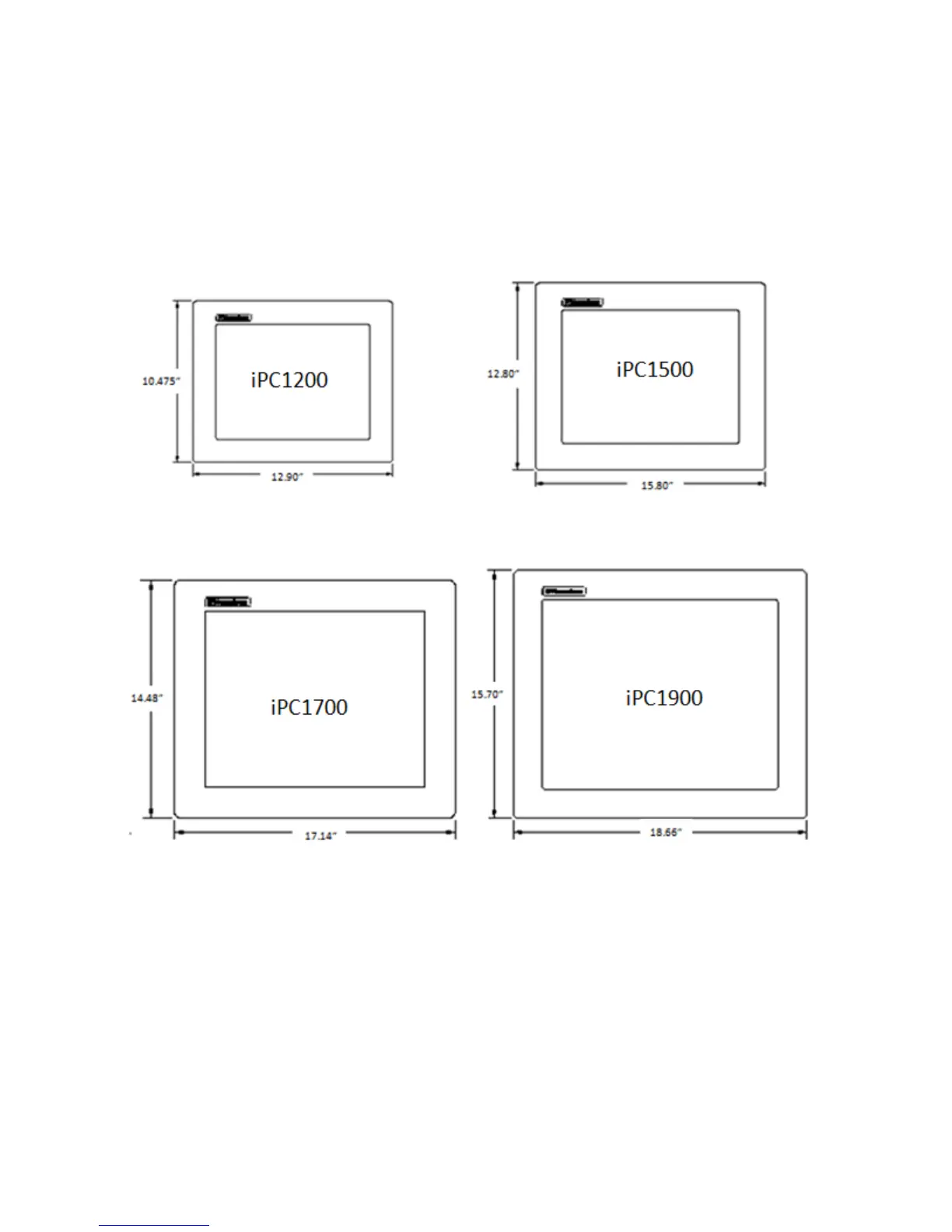

Figure 1.0: iPC Series Front Panel Comparison
The standard front panels are powder coated aluminum. The optional Stainless Steel front panel is type 304
and will not contain a logo pocket or logo on the front. The window area is clear polycarbonate when ordered
without a touchscreen (N/A on ATEX Zone 2/22 configurations). The touchscreen option is heat annealed
glass covered by a polyester overlay. The polyester overlay has better resistance to chemicals than the
polycarbonate window. Depending on the chemicals involved in your application consideration should be
given to choosing the proper window material. In addition there is a Rack Mount front panel option for the
iPC1900 (19” unit) only. This front panel is powder coated aluminum and is 9U high with four rack mount
spaced counter-bored mounting holes on each side of the panel. This panel is not NEMA sealed when
installed.
