Document No. DOC-IPC-003,
User Manual iPC-Series & nPC300, Rev C Rel. 11-2014 Page 5 of 27
I/O Panel
All four versions of the iPC series and the nPC300 have a common Input/Output configuration. Figure 2.0
shows the base configuration of the iPC-Series (not N2800 Fanless) units.
With N2800 Fanless Option Only

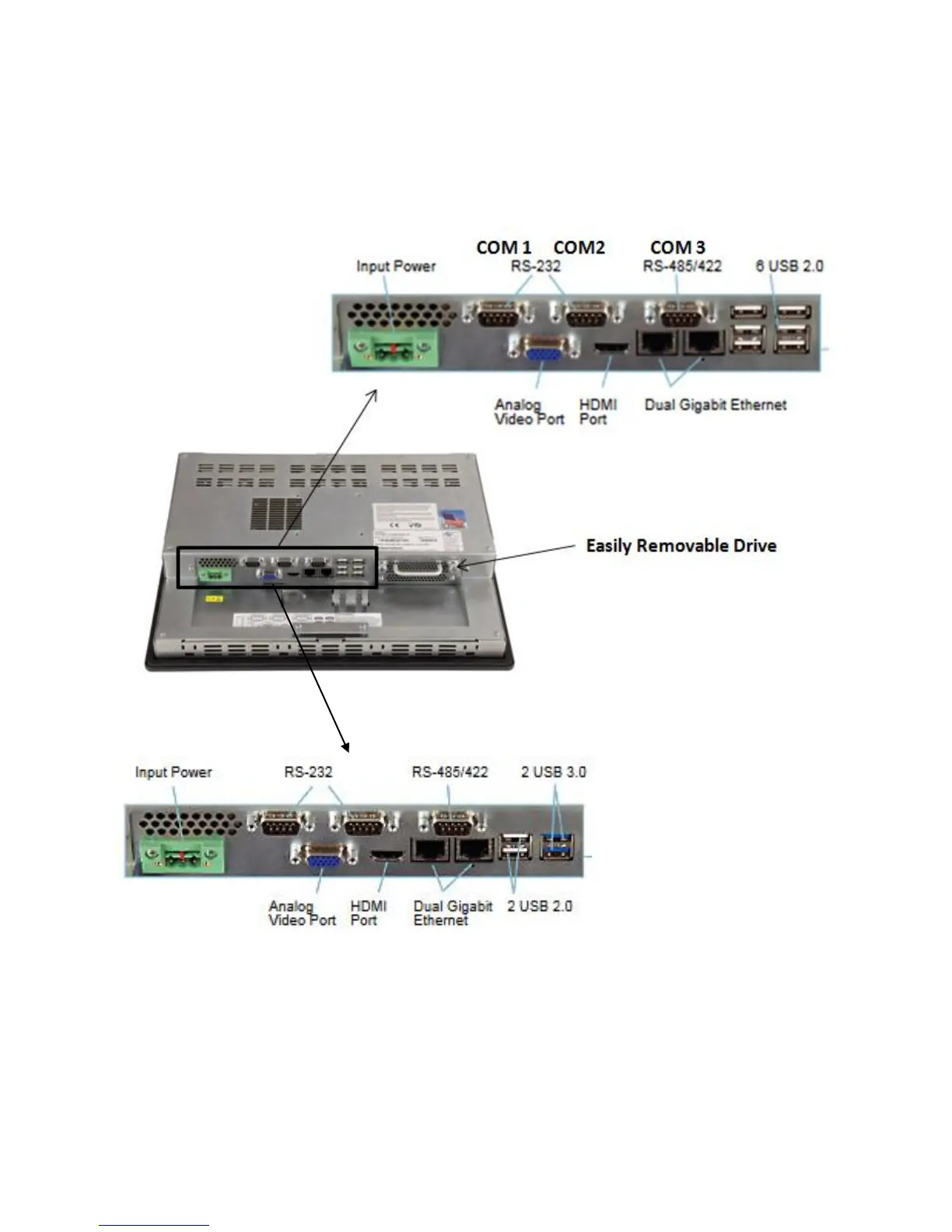

Figure 2.0: iPC Series I/O configuration
