PHYSICAL
iPC1200
iPC1500
iPC1700
iPC1900
Over All
Dimensions
(H x W x D)
10.475” x 12.9” x
3.42”
(266.1mm x
327.2mm x
86.75mm)
12.80” x 15.80” x
2.95”
(325.1mm x
401.3mm x
74.9mm)
14.48” x 17.14” x
3.10”
(367.8mm x
442.0mm x
78.7mm)
15.70” x 18.66” x
3.25”
(398.8mm x
474.0mm x
82.6mm)
Panel Mounting
Depth
3.165” (80.4mm)
2.70” (68.6mm)
2.90” (73.7mm)
3.00” (76.2mm)
Cutout
Dimensions
(H x W)
9.68” x 12.10”
(245.9mm x
307.3mm)
12.00” x 15.00”
(305mm x
381mm)
13.70” x 16.35”
(348mm x
415.3mm)
14.90” x 17.75”
(378.5mm x
450.9mm)
Weight
10.5 lbs (4.76kg)
15.0 lbs (6.80kg)
19.0 lbs (8.63kg)
22.5 lbs (10.22kg)
Shipping
Weight
14.0 lbs (6.35kg)
19.5 lbs (8.84kg)
23.5 lbs (10.67kg)
27.5 lbs (12.49kg)
Option Weight
(-SS)
+2.5 lbs (1.13kg)
+3.5 lbs (1.58kg)
+3.75 lbs (1.70kg)
+4.0 lbs (1.81kg)

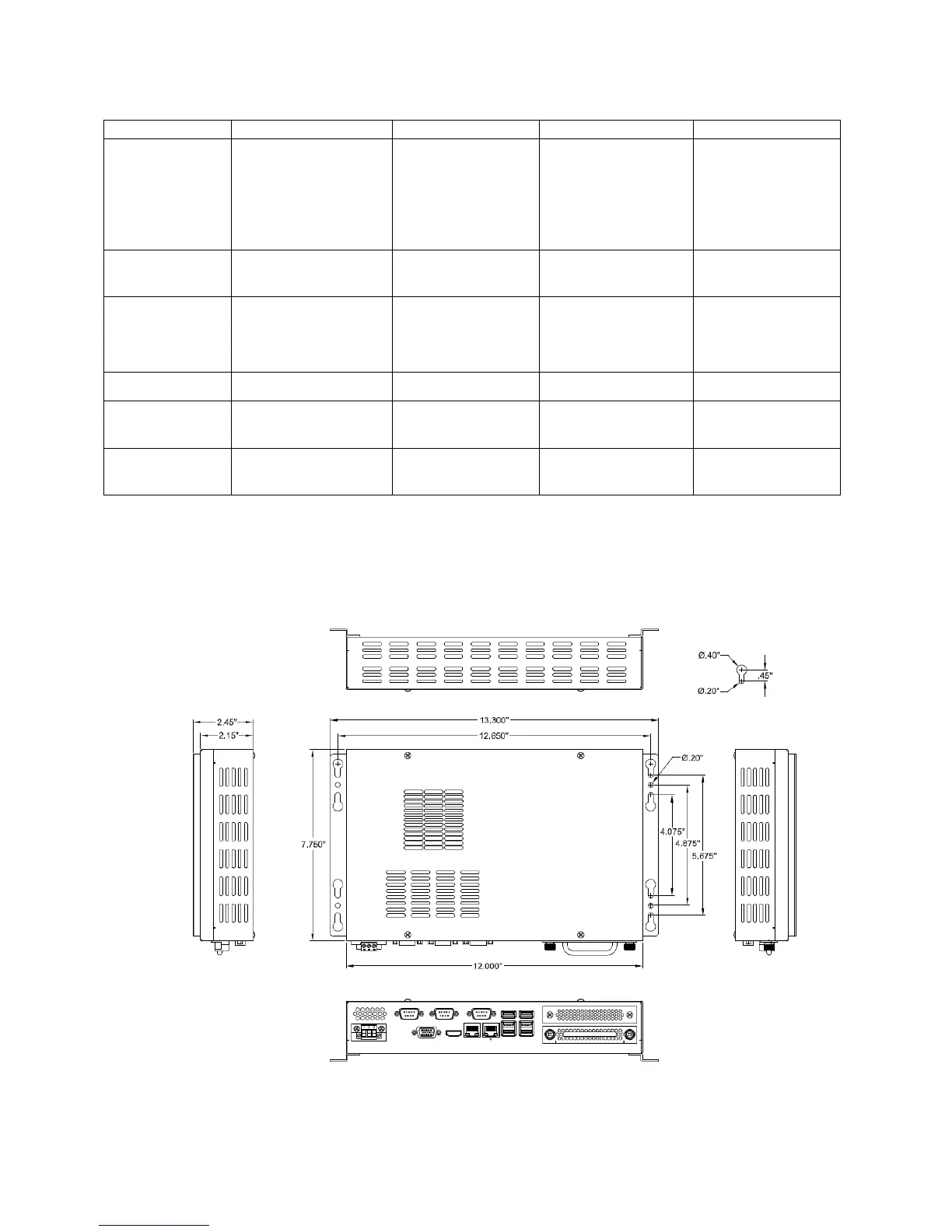

The nPC300 is essentially the rear of the panel mount versions. It is supplied with mounting brackets so that it
can be easily attached to wall or shelf in a NEMA 1 or better enclosure. The nPC300 is not a standalone
device and must be installed in an enclosure to protect operators.
The dimensions of the nPC300 unit are as follows:
