NEO 468 - Parts Description; Scooter Component Identification; Operation; Control Panel Functions

Mercury Neo electric scooters Part Code: Z40948 (Rev A)
Owner’s Handbook Page 9 of 24

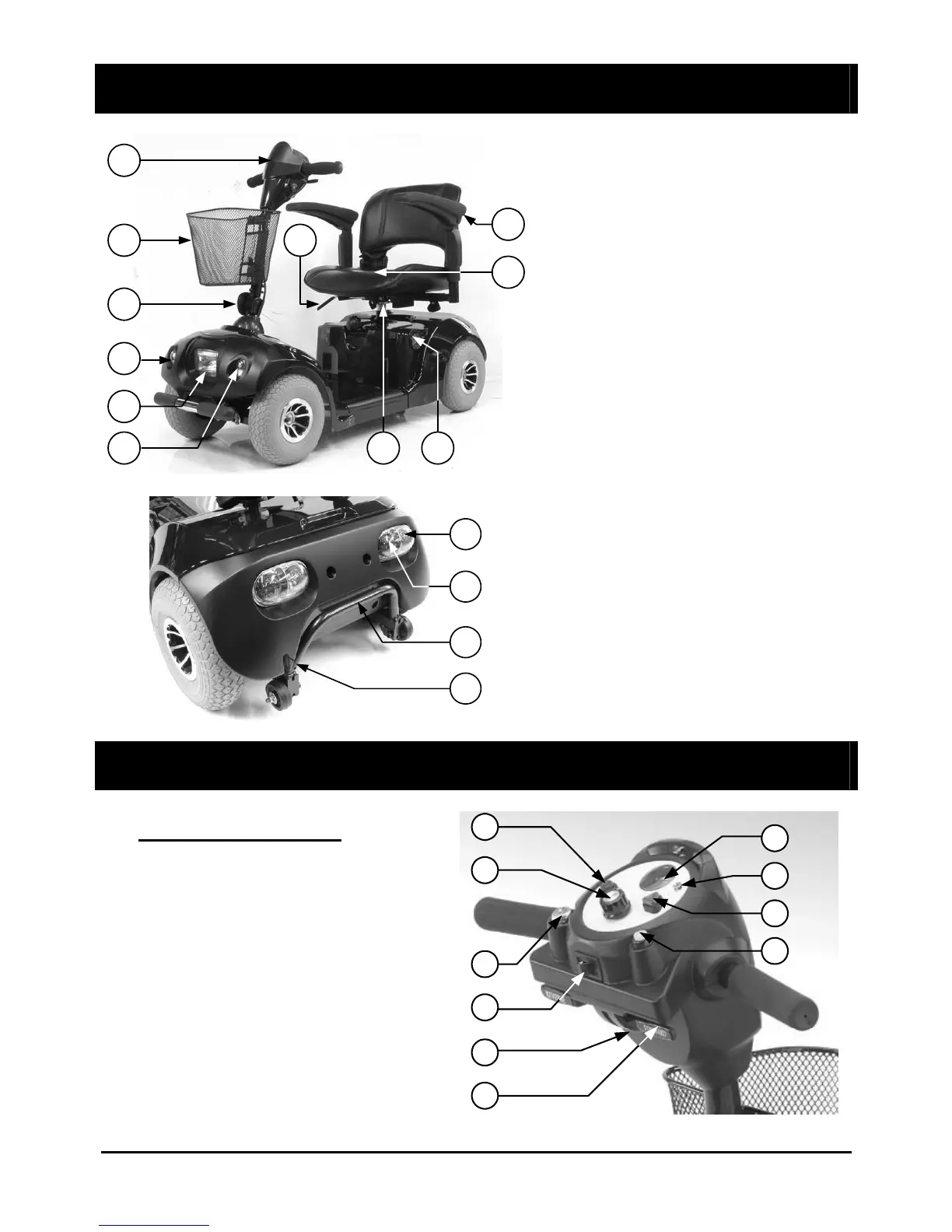

3. PARTS DESCRIPTION
1
4
6
8
7
2
3
5
5 910
12
14
13
15
PARTS DESCRIPTION
1. Tiller head
2. Shopping basket
3. Tiller adjustment knob
4. Head lamp
5. Front indicator light
6. Seat
7. Arm rest
8. Seat lever (for swivelling)
9. Side reflector
10. Seat lever (for legroom adjustment)
11. Rear view mirror (not shown)
12. Rear indicator light (not Neo 4)
13. Rear lamp (on Neo 4, this is
located in the centre of the rear
shroud)
14. Anti tip bar / wheel
15. Freewheel lever
4. OPERATION
4.1 CONTROL PANEL
1. Wigwag paddle
2. Indoor / Outdoor Switch *
3. Indicator Switch *
4. Ignition
5. Speed Dial
6. Headlights Button
7. Battery Gauge
8. Power Eye
9. Hazard Warning Button *
10. Horn Button
* on Neo 6 and Neo 8 only
7
8
9
10
1
4
5
6
3
2
