Mercury Neo electric scooters Part Code: Z40948 (Rev A)
Owner’s Handbook Page 19 of 24

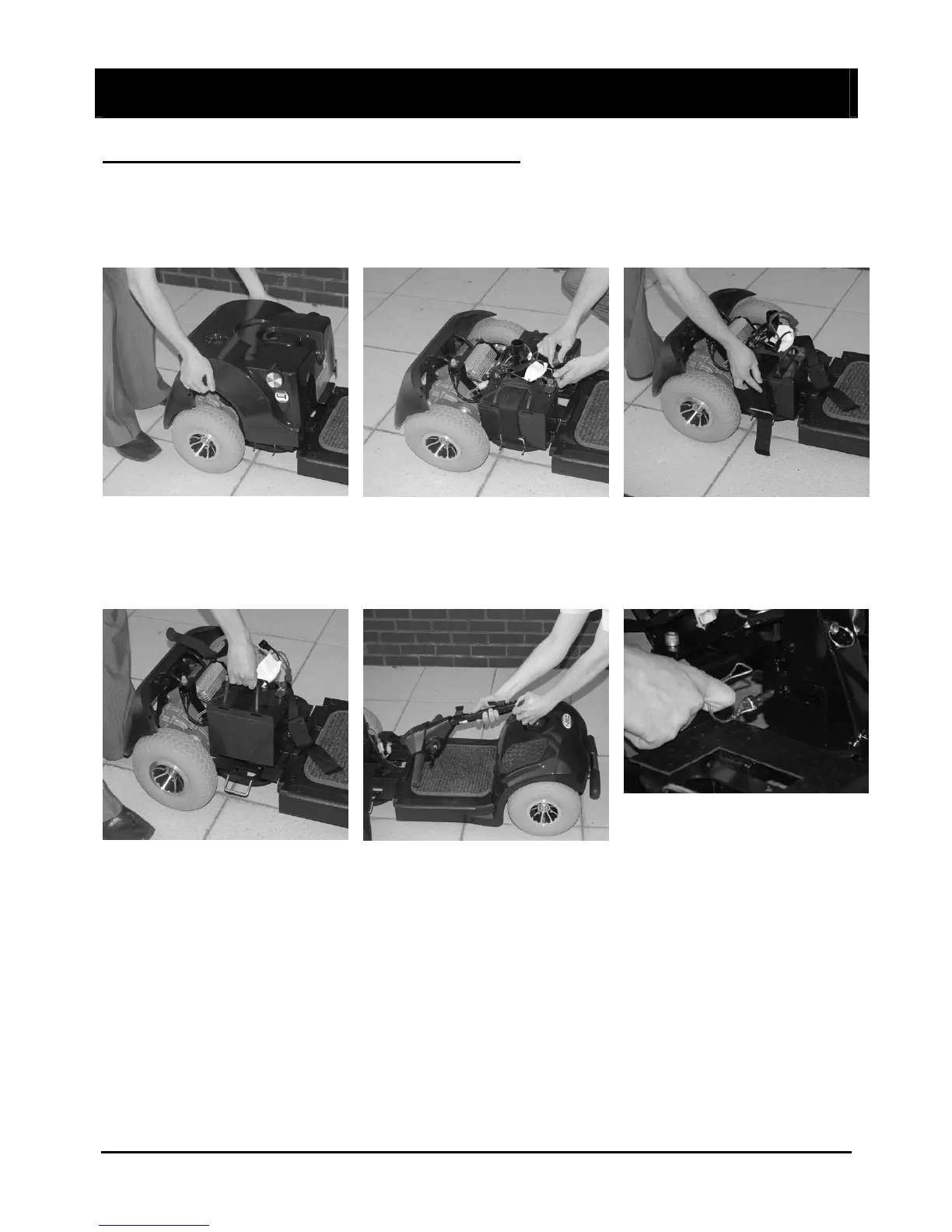

7.1 DISASSEMBLING THE SCOOTER
The scooter can be disassembled into five pieces, the seat (weight 15.3kg), the front section (weight 21.8kg),
the rear section (weight 17.9kg), and two batteries (weight 11.2kg each) without any tools. Please follow the
steps and photographs below:
1. Switch off the scooter, unscrew
the seat hand wheel and remove
seat. Be careful not to let the seat
post drop when removing. Lift up
the rear shroud to remove.
2. Disconnect the batteries by
disconnecting the two red
connectors and two black
connectors.
3. Undo the Velcro straps.
4. Remove the batteries.
5. Loosen the tiller adjustment
knob and fold down the tiller
and retighten knob.
6. Remove the lock pin located to
the rear of the seat post and
between the batteries.
7. DISASSEMBLY AND ASSEMBLY
