Neptune Bath - Page 8

12OV 60HZ
15A GFCI
12OV 60HZ
15A GFCI
GFCI

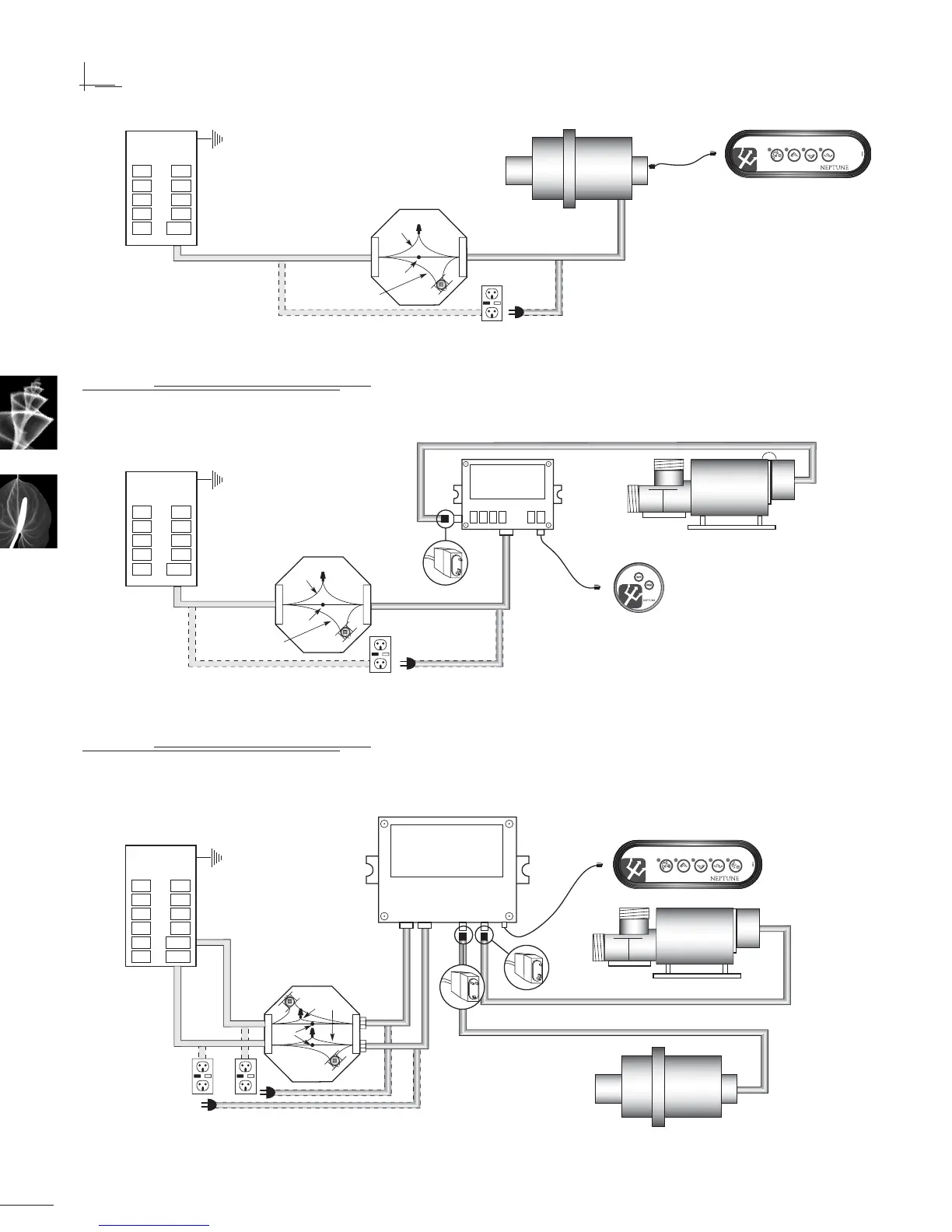

ELECTRICAL
FEED
Blower
MASS-AIR AND ACTIV-AIR
Junction box
Black
White
Green/Copper
CANADA / EUROPE
USA ONLY GFCI
Junction box
Black
White
Green/Copper
CANADA / EUROPE
GFCI
ELECTRICAL
FEED
Pump
WHIRPOOL
USA ONLY GFCI
Sealed control unit
No adjustments
possible
GFCI
GFCI
ELECTRICAL
FEED
COMBINED AND TURBO AIR
12OV 60HZ
Double 15A
GFCI class A
Blower
For 230V 50HZ (EUROPE)
use double 10A GFCI class A
Pump
Junction box
Black
White
Green/Copper
CANADA / EUROPE
Green/Copper
Sealed control unit
No adjustments
possible
USA ONLY GFCI
8
Fig. 17
