Nero 7433301 - Location of Controls; Power Supply and Connections

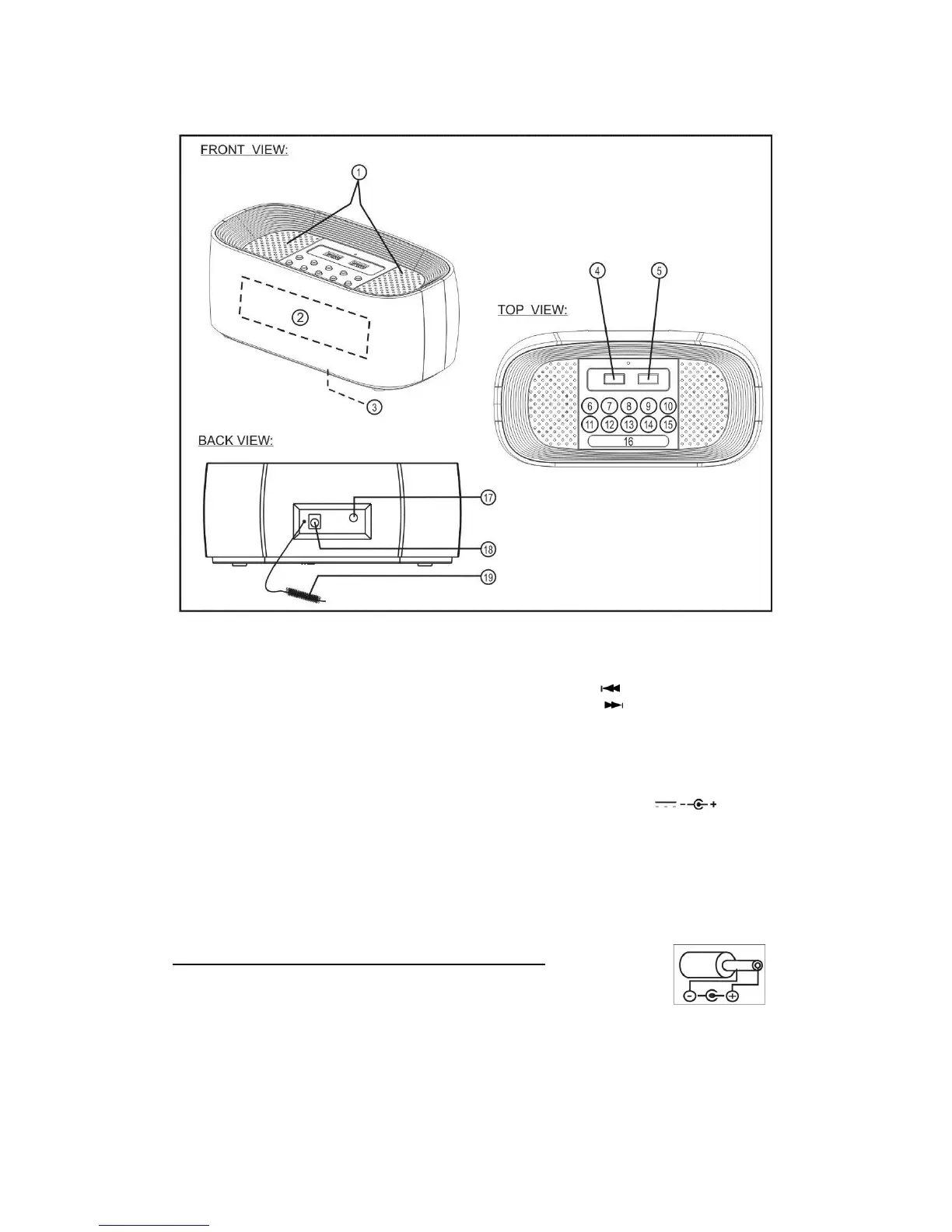

LOCATION OF CONTROLS
POWER SUPPLY
AC OPERATION (EXTERNAL AC-DC POWER ADAPTOR)
- THIS SET IS EQUIPPED WITH A "DC-JACK" CAPABLE OF ACCEPTING
AC-ADAPTORS WITH A RATING OF DC = 5V, 2A, AND WITH A PLUG
WITH THE FOLLOWING POLARITIES AS SHOWN (CENTER POSITIVE) :
- PLEASE USE ONLY THE SUPPLIED AC-ADAPTOR TO OPERATE THE UNIT.
USE OF OTHER ADAPTORS MAY DAMAGE THE UNIT OR CAUSE IT TO
MALFUNCTION.
- PLUG THE TAIL END OF THE AC-ADAPTOR INTO THE DC-JACK (SOCKET)
ON THE REAR OF THE UNIT.
10. ON / OFF KEY
11. SKIP ( - ) / SEARCH ( - ) KEY
12. SKIP ( + ) / SEARCH ( + ) KEY
13. AL-SET/AL-MODE KEY
14. FUNCTION/CL-SET KEY
15. PLAY/ PAUSE/PAIR KEY
16. SNOOZE/DIMMER KEY
17. AUX INPUT SOCKET
18. DC JACK (DC 5V )
19. FM ANTENNA WIRE
1. SPEAKER
2. LED DISPLAY
3. BACK-UP BATTERY
COMPARTMENT (BOTTOM OF UNIT)
4. USB-1 SOCKET
(DC CHARGER: 5V/1000mA)
5. USB-2 SOCKET
(DC CHARGER: 5V/500mA)
6. VOLUME DOWN ( - ) KEY
7. VOLUME UP ( + ) KEY
8. MEMORY KEY
9. SLEEP KEY
