E-4
E-3

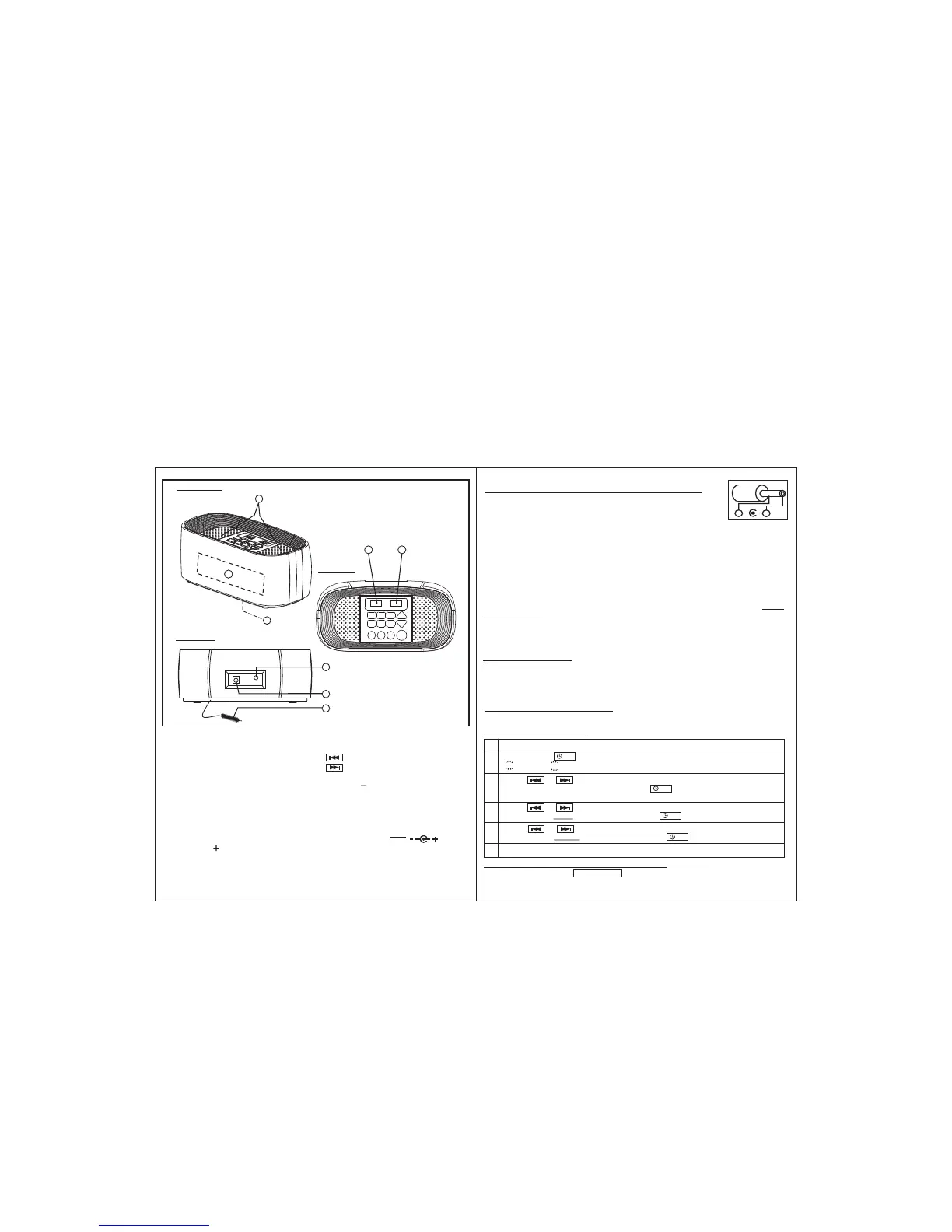

LOCATION OF CONTROLS
1. SPEAKE R
2. LED DI SPLAY
3. BACK-UP BATTERY
COMPART MENT (BO TTOM OF UNIT)
4. USB-1 SOCKET
(DC CH ARGER: 5V/2000mA)
5. USB-2 SOCKET
(DC CH ARGER: 5V/1000mA)
6. SOURCE KE Y
7. FM MEMORY KEY
8. CLOCK SET/ FM MODE KEY
9. VOLUME KEY
10. KEY
11. KEY
12. PL AY/ PAUSE / PAIR KEY
13. VO LUME KEY
14. PO WE R ON/ OFF KE Y
15. ALARM SET KE Y
16. SL EEP KEY
17. SN OOZE/ DI MMER KEY
18. AUX INPUT SOCKET
19. DC JACK (DC 5V
)
20. FM AN TEN NA WIRE
AC OPERATION (EXTERNAL AC-DC POWER ADAPTOR)
POWER SUPPLY
- - -
-
+
FRONT VIEW:
BACK VIEW:
1
TOP VIEW:
3
17
19
18
20
6 7 8
9
10
11 12
13
14
15
16
2
4
5
- THIS SET IS EQUIPPED WITH A "DC-JACK" CAPABLE OF ACCEPTING
AC-ADAPTORS WITH A RATING OF DC = 5V, 3A, AND WITH A PLUG
WITH THE FOLLOWING POLARITIES AS SHOWN (CENTER POSITIVE) :
- PLEASE USE ONLY THE SUPPLIED AC-ADAPTOR TO OPERATE THE UNIT.
USE OF OTHER ADAPTORS MAY DAMAGE THE UNIT OR CAUSE IT TO MALFUNCTION.
- PLUG THE TAIL END OF THE AC-ADAPTOR INTO THE DC-JACK (SOCKET)
ON THE REAR OF THE UNIT.
- INSERT THE PLUG OF THE AC-ADAPTOR INTO A WALL OUTLET WITH AC-POWER.
- PRESS THE "ON/ OFF" KEY TO SWITCH ON THE UNIT.
- THIS UNIT IS DESIGNED TO OPERATE WITHOUT EVER BEING TOTALLY POWERED "OFF". IT
WILL EITHER BE "ON" OR IN "STANDBY MODE".
- IN STANDBY MODE, THE BACK-LIGHT OF THE DIGITAL DISPLAY WILL BE DIMMED
BUT THE DISPLAY WILL SHOW THE CURRENT TIME (CLOCK FUNCTION).
- ANYTIME DURING STANDBY MODE, YOU CAN SWITCH "ON" THE UNIT BY PRESSING
THE "ON/ OFF" KEY.
- SAVE ENERGY BY SWITCHING THE SYSTEM TO "STANDBY" MODE WHEN NOT IN USE. BACK
UP BATTERIES
- OPEN THE BATTERY DOOR AT THE BOTTOM OF UNIT.
- INSERT 2 PCS "AAA-CELL" (UM-4/LR03 TYPE) BATTERIES IN THE BATTERY
COMPARTMENT. THESE 2 BATTERIES ARE FOR BACKUP OF THE "CLOCK"
DURING BRIEF POWER OUTAGES.
D
IMMER FUNCTION
THIS SET HAS A DIMMER FUNCTION TO ADJUST THE BRIGHTNESS LEVEL
OF THE DISPLAY BACKLIGHT. SIMPLY ADJUST IT AS DESIRED BY PRESSING
THE "SNOOZE/ DIMMER" KEY REPEATEDLY (HI-BRIGHTNESS / LOW-BRIGHTNESS / OFF)
THE DISPLAY BACKLIGHT WILL ALWAYS RETURN TO HI-BRIGHTNESS AS THE DEFAULT,
AFTER THE UNIT BEEN RESET.
DIGITAL CLOCK FUNCTION
-
HOW TO
SET CORRECT TIME:
SWITCH UNI T TO "STAND-BY" MODE
PRESS & HOLD KEY FOR 3 SECOND S DISPLAY SHOWS
HOUR OR HOUR (FLASHING)
12H
24H
PRESS OR KEY TO SELECT 12-HOUR OR
24-HOUR CLOCK DISPLAY SYSTEM & PRES S KEY TO CONFI RM YOUR
SELECTI ON.
PRESS REPEATEDLY TO SET
THE CORREC T HOUR IN THE DISPLAY & PRES S TO CONFI RM.
OR KEY
KEY
CORREC T TIME IS NOW SET & WILL BE SHOWN IN THE DISPLAY.
PRESS REPEATEDLY TO SET
THE CORREC T MIN UTE IN THE DISPLAY & PRESS TO CONFI RM
OR KEY
KEY
1.
2.
3.
4.
5.
6.
Set
Set
Set
Set
IN STANDBY MODE PRESS FM MEMORY KEY FOR 6 SECONDS, THE CURRENT TIME
WILL +1HOUR. PRESS AND HOLD FOR 6 SECOND AGAIN FOR -1 HOUR.
ONE TOUCH DAYLIGHT SAVINGS TIME SWITCH
