Nescafe D75 - Remove Lever and Light Barrier

Prodigio service manual Version 1.0 en
50
REPAIRS

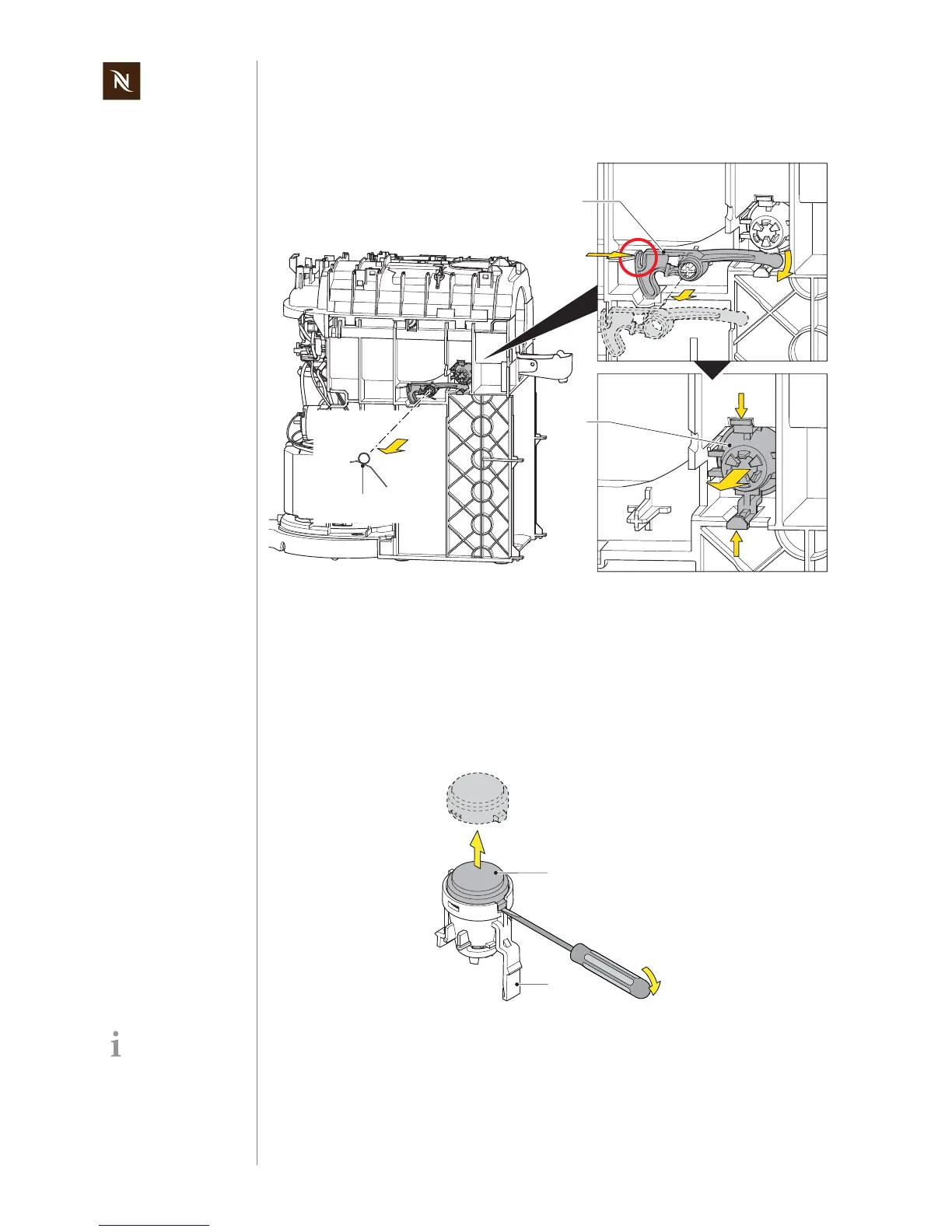

7.4.8 Remove lever and light barrier
• Remove spring (68).
• Remove lever (67) - see upper detail:
• Press latch (circled in red) against lever and turn lever clockwise.
• Pull out lever.
• Remove light guide rack (63) together with lens (62) - see lower detail:
• Release 2 latches of light guide rack.
• Insert a finger in capsule ejection chute and press it against the lens to push out
the light guide rack.
• Lever lens (62) out of light guide rack (63) with a small screwdriver.
• Remove second light guide rack (63) and lens (62) on opposite side of coffee
machine the same way.
68
63
62
67
63
62
Handle with care!
Do not scratch new
lenses.
