Nescafe D75 - Disassemble Brewing Unit Drive

Version 1.0 en Prodigio service manual
67
REPAIRS
7.4.17 Disassemble brewing unit drive

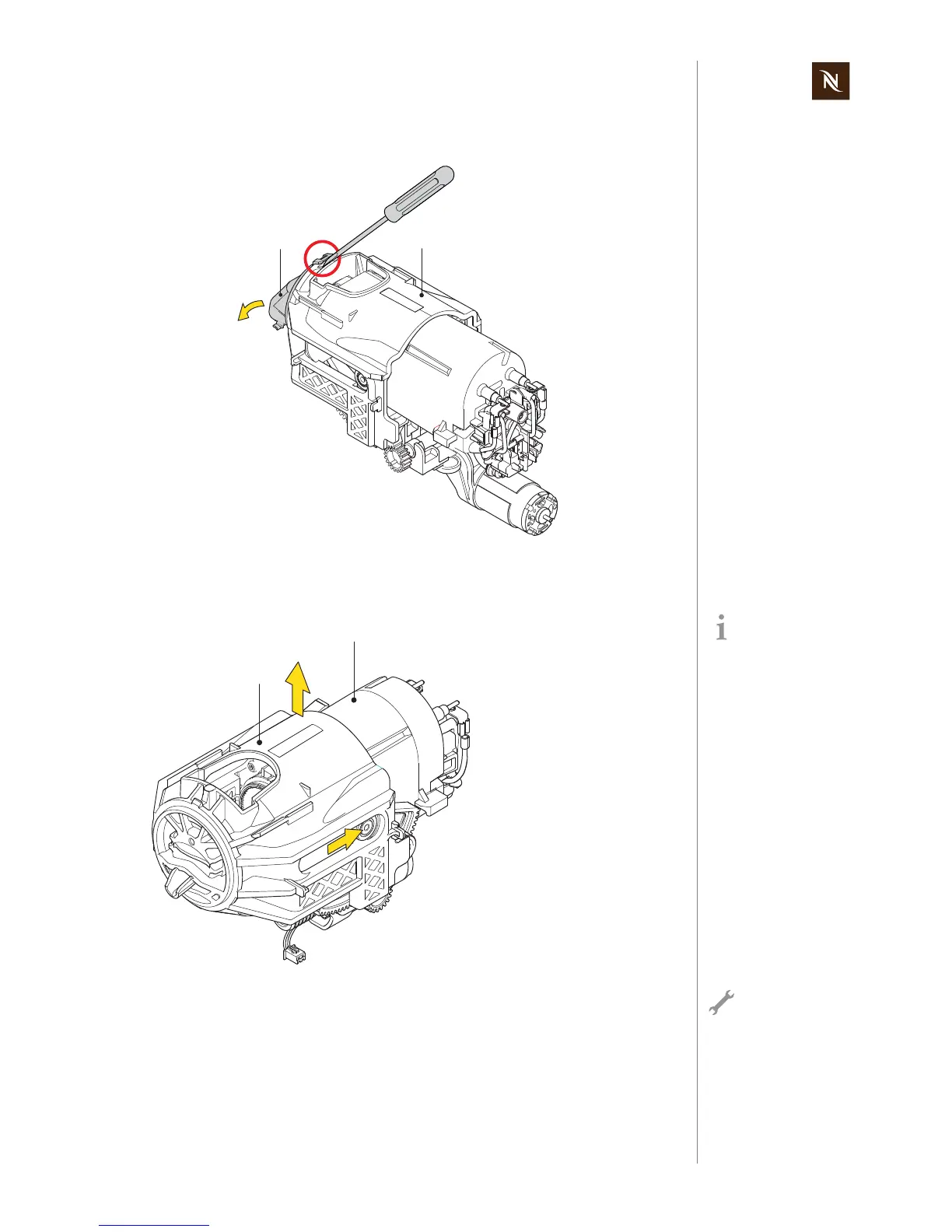

• Release marked clip with a screwdriver and remove steam cover (34) from brewing
unit housing (33).
• Lift up brewing unit housing (33) from thermoblock (35) and capsule cage (38).
34
33
The brewing unit
must be open com-
pletely i.e. the guides are at
the rear and vertically posi-
tioned.
33
35
In case of problems
turn worm gear till
end stop.
