Version 1.0 en Prodigio service manual
55
REPAIRS

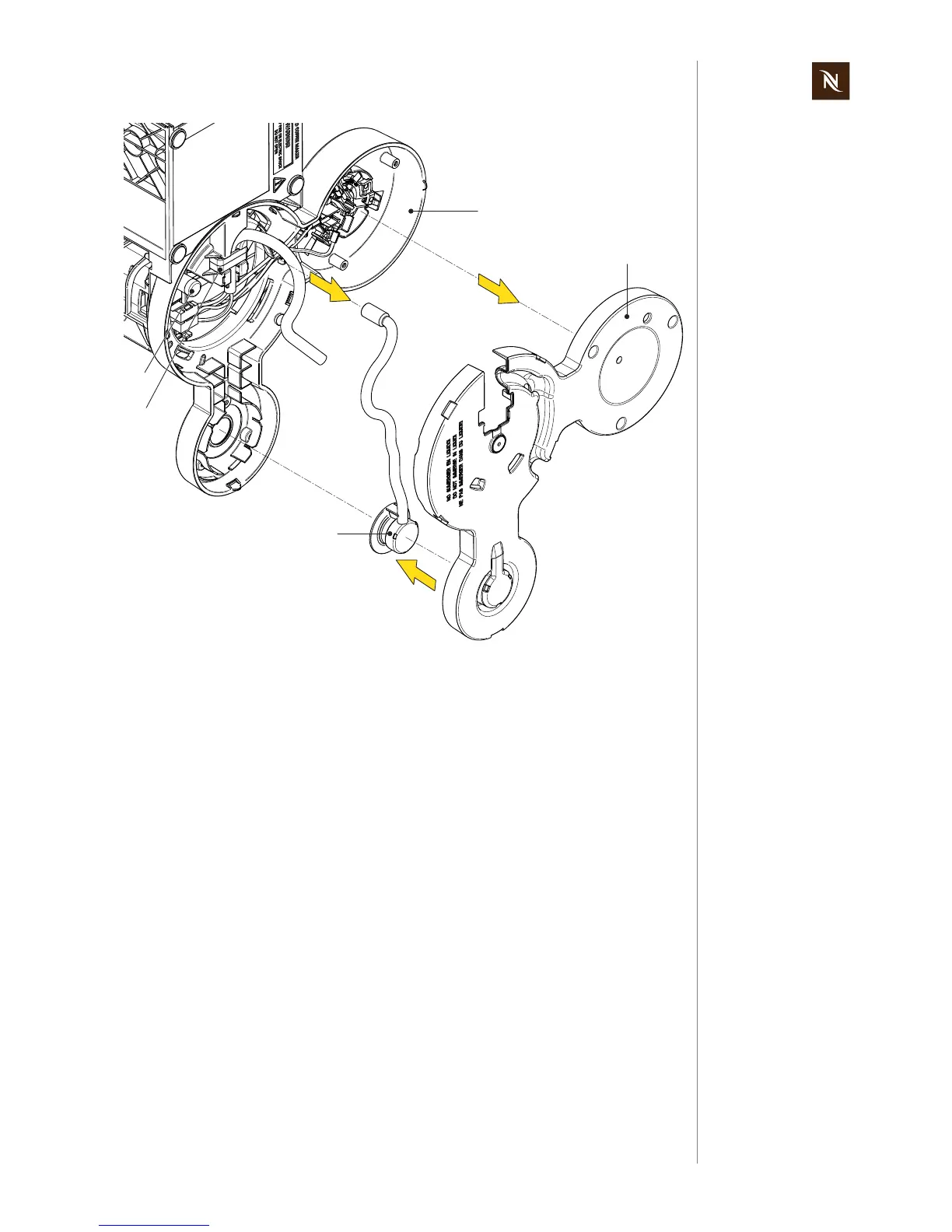

• Remove pivot bottom milk (19) from pivot top milk (17).
• Remove water tank connector (20) from pivot bottom milk and pull off its hose from
flowmeter (22) in electronic module.
• Remove cable bracket (18) - see procedure on page 53.
20
19
17
22
18
