Service Manual EF 473 / EF 474 enVersion 1.0
Repair
General disassembly
Tool:
- Oval screwdriver
)
Empty water system if necessary
(see page 12).

Unplug from the mains before
disassembling machine - appliance
must be isolated!

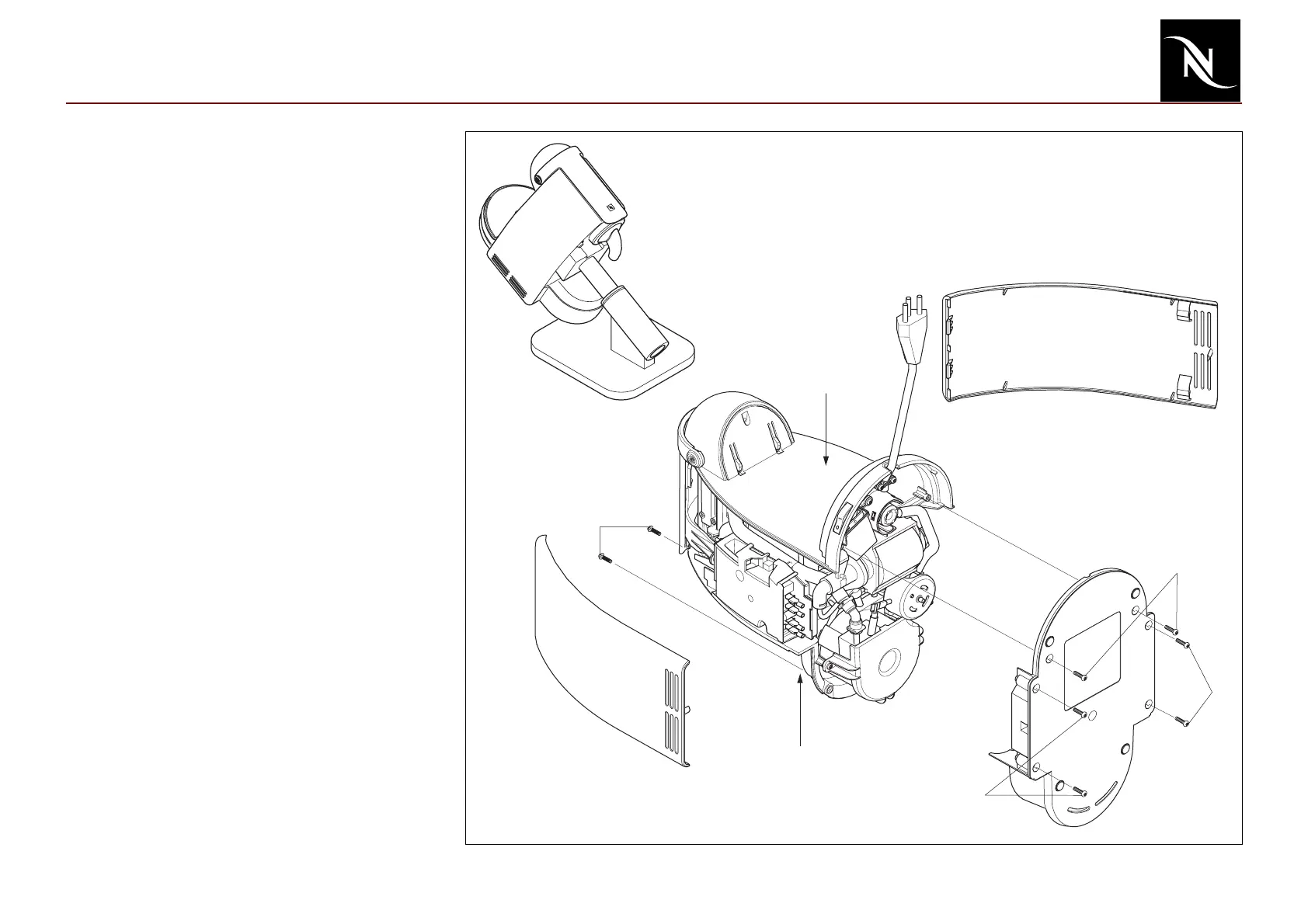

Procedure:
1. Remove water tank (33) and drip tray (8)
together with drip grid (7) and capsule
container (6).
2. Remove 2 screws (2) on the front side of
the machine.
3. Place machine on the repairing/service
holder device (see page 32).
4. Remove 6 screws (2) on the bottom of the
machine.
5. Swing out (EF 473) or snap out (EF 474)
and remove both side panels (5).
6. Remove lower chassis (22).
5
5
33
7 + 8 + 6
2
2
22
2
2
