Nespresso Essenza FS - Water Circuit Diagram

6
Main Components
Service Manual EF 473 / EF 474 enVersion 1.0

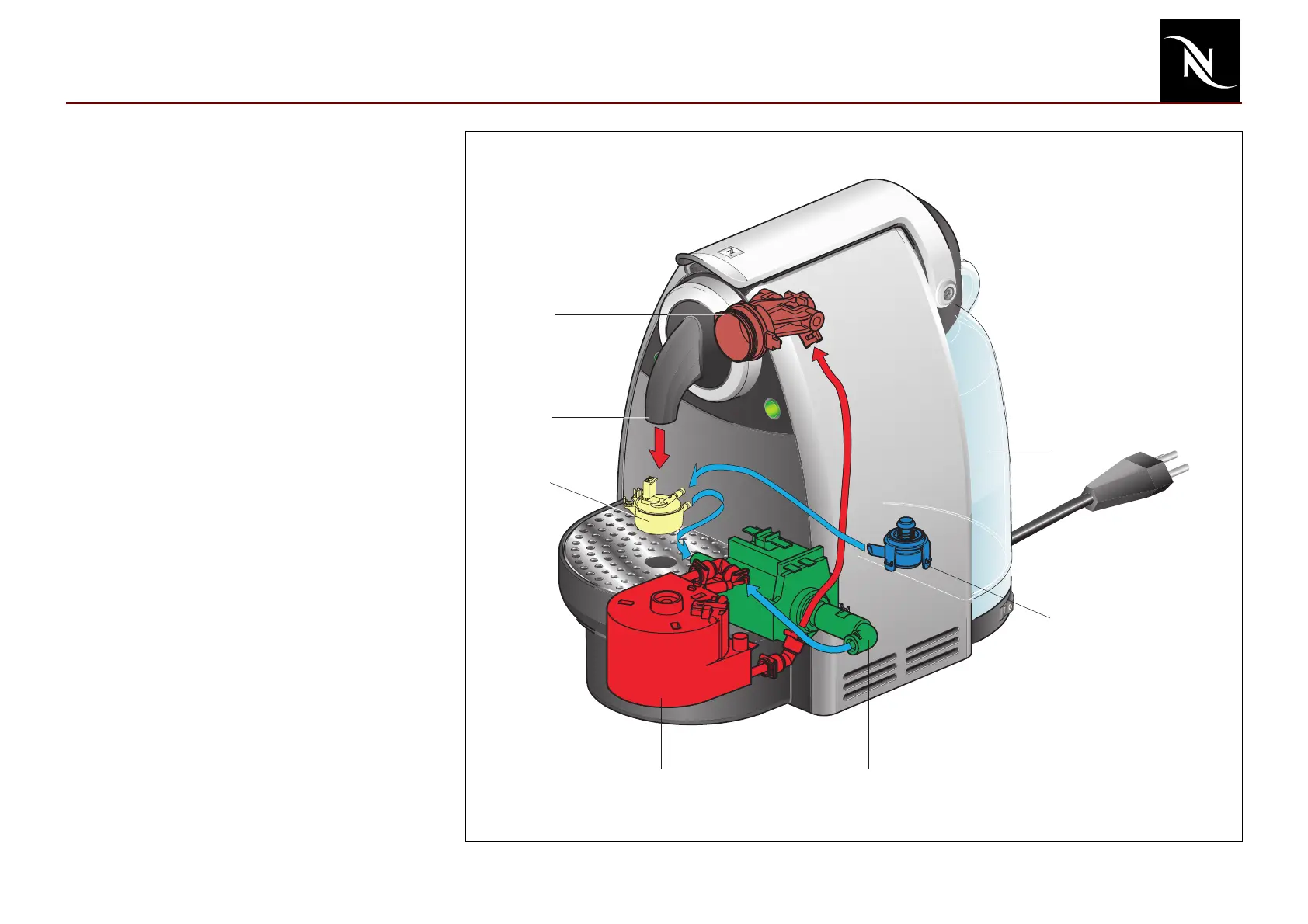

Water circuit
1) Water tank
2) Water tank valve and connector
3) Flow meter
4) Pump
5) Thermoblock
6) Compact brewing unit (CBU)
7) Coffee outlet
6
7
5
4
2
1
3
