Step Perform on each controller module

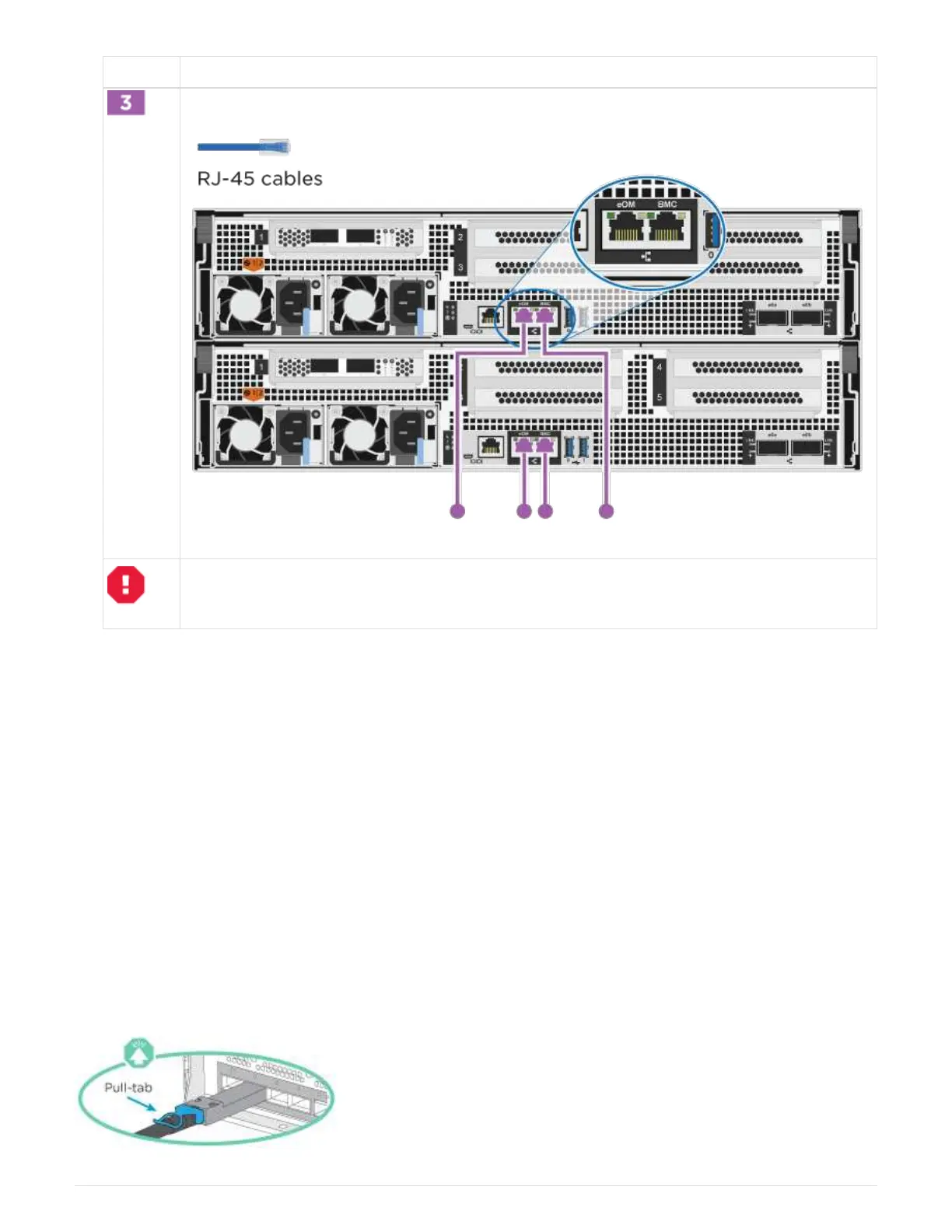

Cable the management ports to the management network switches
DO NOT plug in the power cords at this point.
2. To perform optional cabling, see:
◦
[Option 1: Connect to a Fibre Channel host]
◦ [Option 2: Connect to a 10GbE host]
◦ [Option 3: Connect to a single direct-attached NS224 drive shelf]
◦ [Option 4: Connect to two direct-attached NS224 drive shelves]
3. To complete setting up your system, see Step 4: Complete system setup and configuration.
Option 2: Cable a switched cluster
Cluster interconnect and management network ports on the controllers are connected to switches while the HA
interconnect ports are cabled on both controllers.
Before you begin
Contact your network administrator for information about connecting the system to the switches.
Be sure to check the illustration arrow for the proper cable connector pull-tab orientation.
581
