Locking latch
Locking pin
7. Slide the controller module out of the chassis.
Make sure that you support the bottom of the controller module as you slide it out of the chassis.
8. Place the controller module on a stable, flat surface, and then open the air duct:

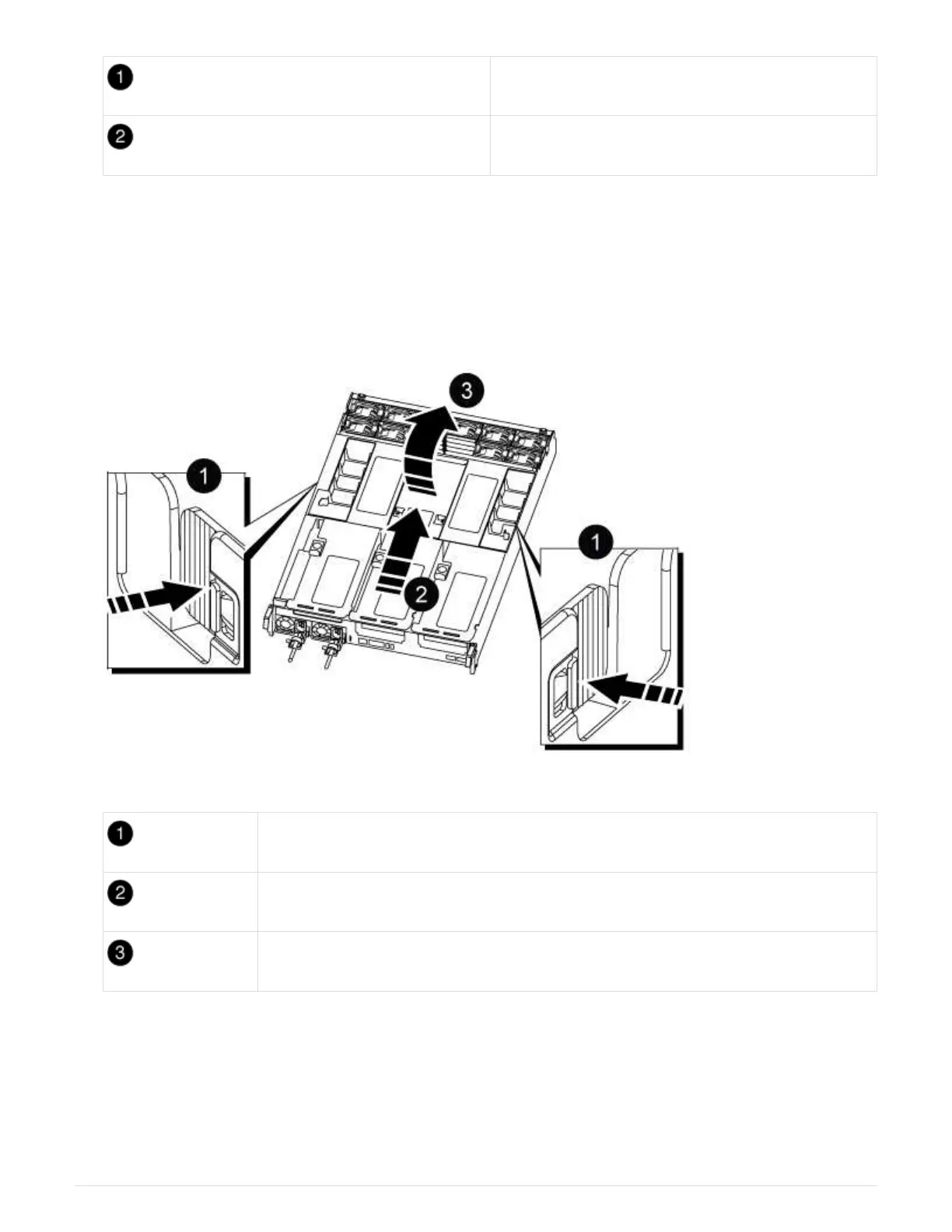

a. Press in the locking tabs on the sides of the air duct toward the middle of the controller module.
b. Slide the air duct toward the fan modules, and then rotate it upward to its completely open position.
+
Air duct locking tabs
Slide air duct towards fan modules
Rotate air duct towards fan modules
Step 3: Replace the NVDIMM
To replace the NVDIMM, you must locate it in the controller module using the NVDIMM map label on top of the
air duct or locating it using the LED next to the NVDIMM, and then replace it following the specific sequence of
steps.
