switches.
Be sure to check the direction of the cable pull-tabs when inserting the cables in the ports. Cable pull-tabs are
up for all onboard ports and down for expansion (NIC) cards.
As you insert the connector, you should feel it click into place; if you do not feel it click, remove
it, turn it around and try again.
Steps

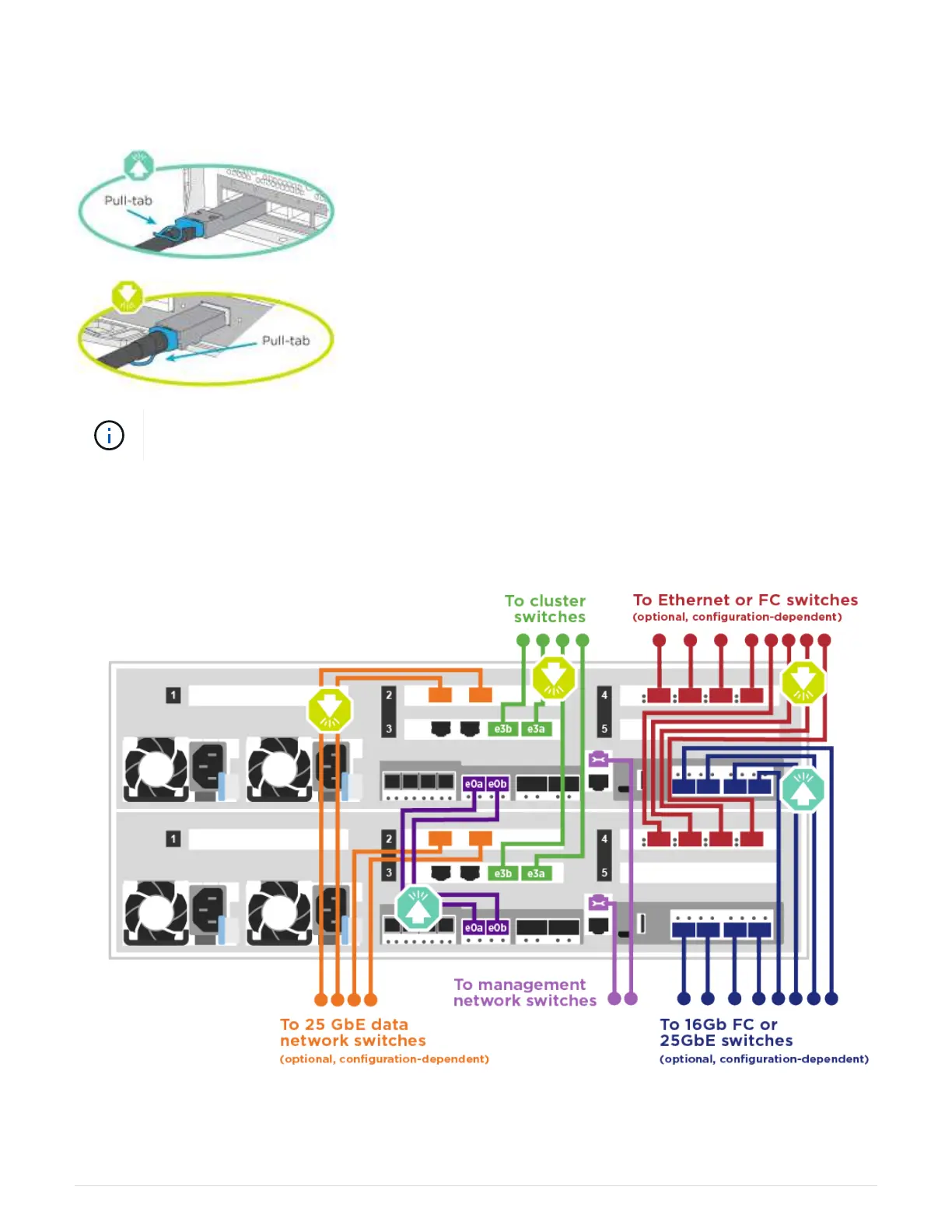

1. Use the animation or illustration to complete the cabling between the controllers and to the switches:
Switched cluster cabling
2. Go to Step 4: Cable controllers to drive shelves for drive shelf cabling instructions.
