Step 4: Cable controllers to drive shelves
You can cable either NSS224 or SAS shelves to you system.
Option 1: Cable the controllers to a single drive shelf
You must cable each controller to the NSM modules on the NS224 drive shelf.
Be sure to check the illustration arrow for the proper cable connector pull-tab orientation. The cable pull-tab for
the NS224 are up.
As you insert the connector, you should feel it click into place; if you do not feel it click, remove
it, turn it around and try again.
Steps
1. Use the following animation or illustration to cable your controllers to a single drive shelf.

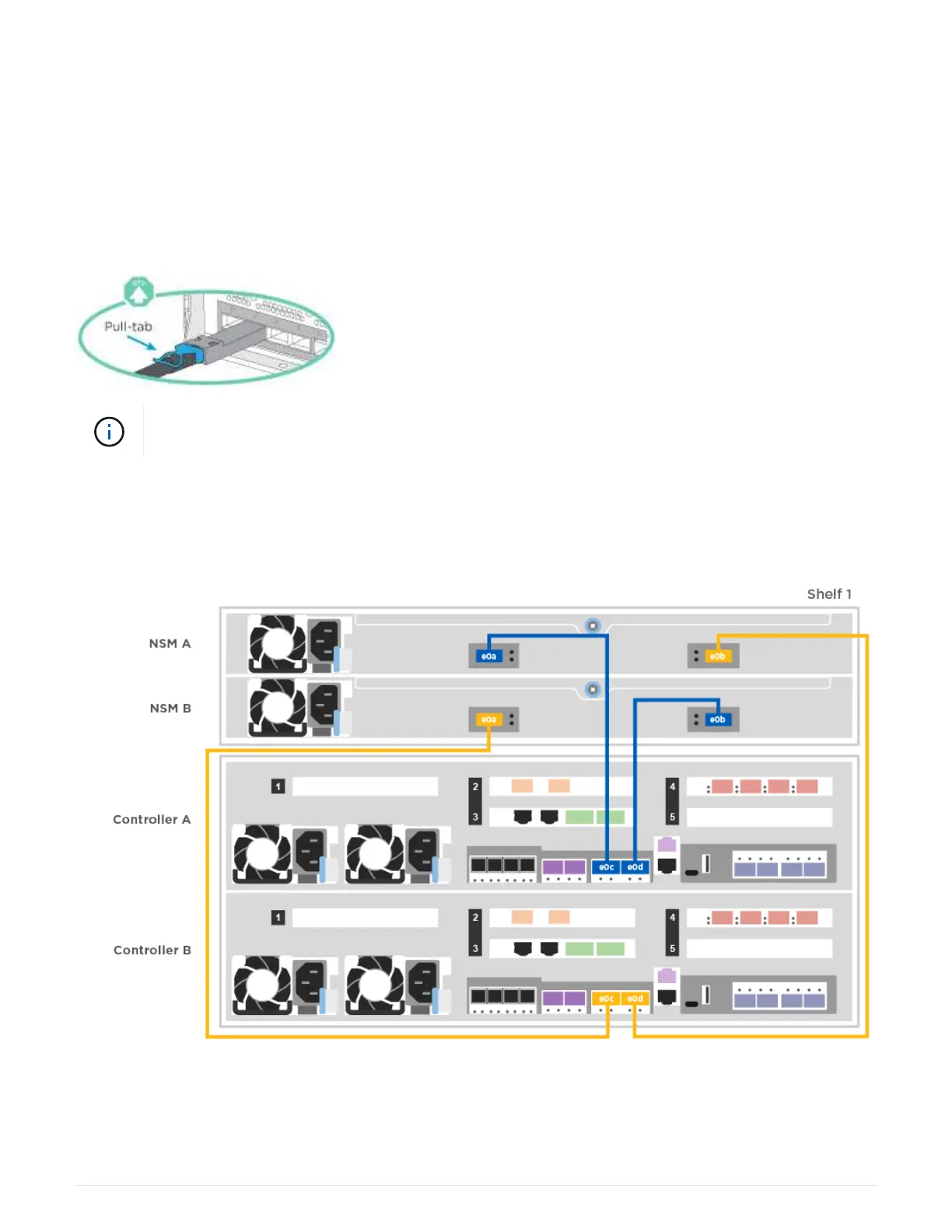

Cabling the controllers to one NS224 drive shelf
2. Go to Step 5: Complete system setup and configuration to complete system setup and configuration.
