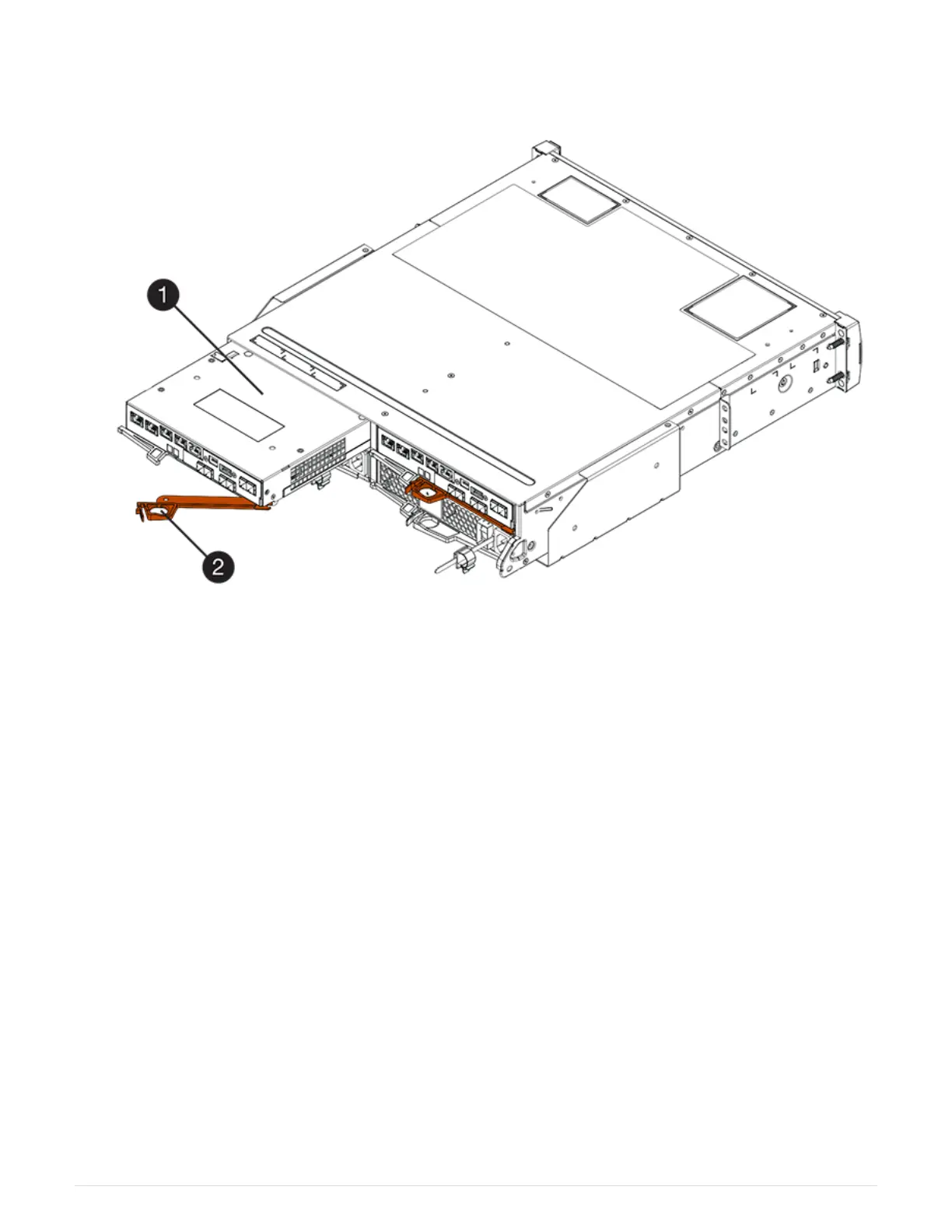

The following figure is an example of an E2812 controller shelf, E2824 controller shelf, or EF280 flash
array:
(1) Controller canister
(2) Cam handle
The following figure is an example of an E2860 controller shelf:
5
