NetComm NF10WV User Manual

VDSL / ADSL N300 WiFi Modem Router with VoIP - NF10WV
PRE-REQUISITES
If you are using a voice service on the same line as your DSL service, you will need a DSL line
lter for each handset on the line. If you have a Naked DSL service, line lters are not required.
INSTALLING THE DEVICE

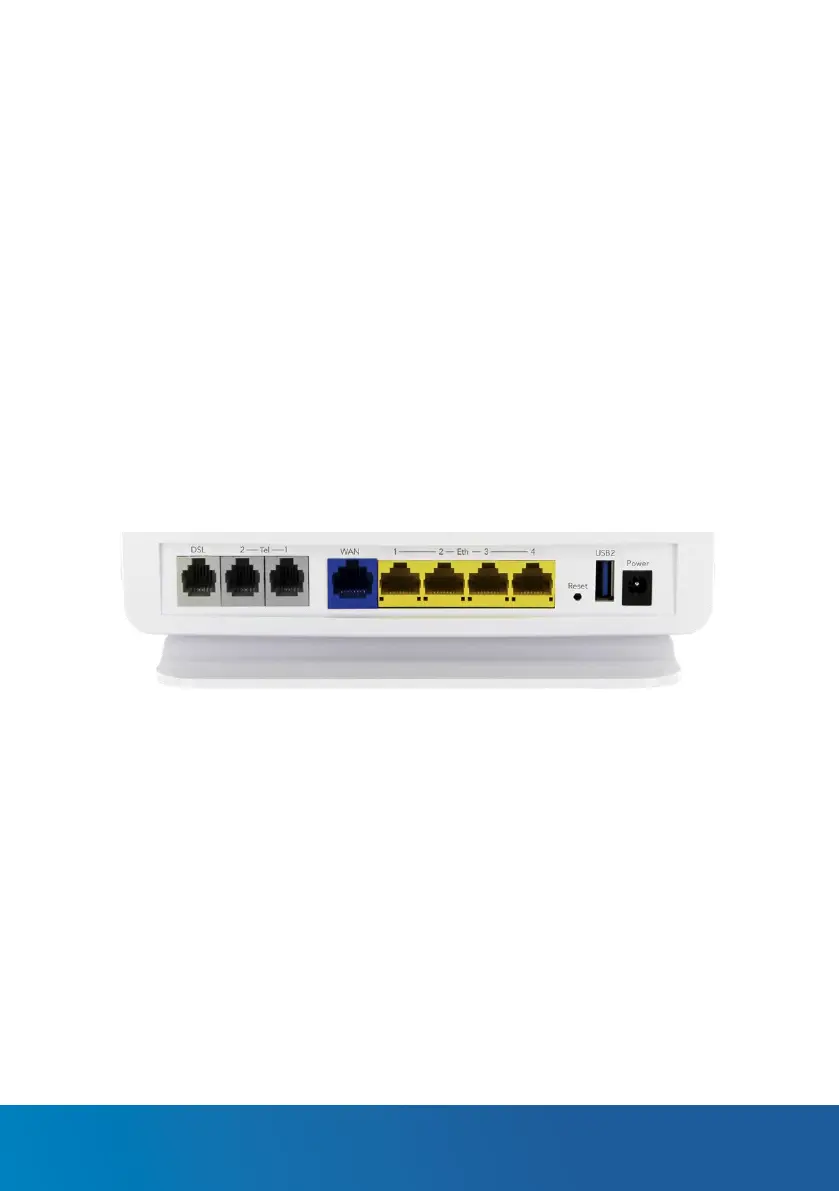

1. Connect the supplied RJ11 cable to the “modem” port of your DSL line lter and then
connect the other end to the DSL port on the back of the NF10WV. Connect the DSL line
lter (not included) to the wall socket and then connect your handset to the “phone” port
of the lter. If you have a Naked DSL service, simply connect the included RJ11 cable
from the DSL port of the NF10WV to the wall socket. If you have a VoIP service, connect
your handset to one of the Tel ports on the back of the router.
2. Connect the supplied RJ45 Ethernet cable from one of the yellow Ethernet ports (1-4) on
the back of the NF10WV to your computer.
3. Connect the included power adapter to the Power jack of the NF10WV and then plug it into
an available wall socket. Press the ON/OFF button to power the router on. The Power light
illuminates in red. When the NF10WV has nished booting up, the Power light turns green.
LOGGING IN TO THE WEB INTERFACE
1. Open a web browser (such as Internet Explorer®, Mozilla Firefox® or Google Chrome™),
type http://192.168.20.1 into the address bar and press Enter.
2. At the login screen, type admin into both the Username and the Password elds and
click OK.

NetComm NF10WV Specifications

General

DSL WAN	No
Ethernet WAN	Yes
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Memory card slot(s)	-
RJ-11 ports quantity	1
USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	4
Product type	Tabletop router
Product color	White
Power source type	DC
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 95 %

Weight and Dimensions

Depth	54 mm
Width	190 mm
Height	146 mm
Weight	326 g
