NetComm NF10WV User Manual

QSG-00084 rev1
CHANGING THE WIRELESS PASSWORD
If you would like to change the wireless password to something easier to remember, follow
these steps.

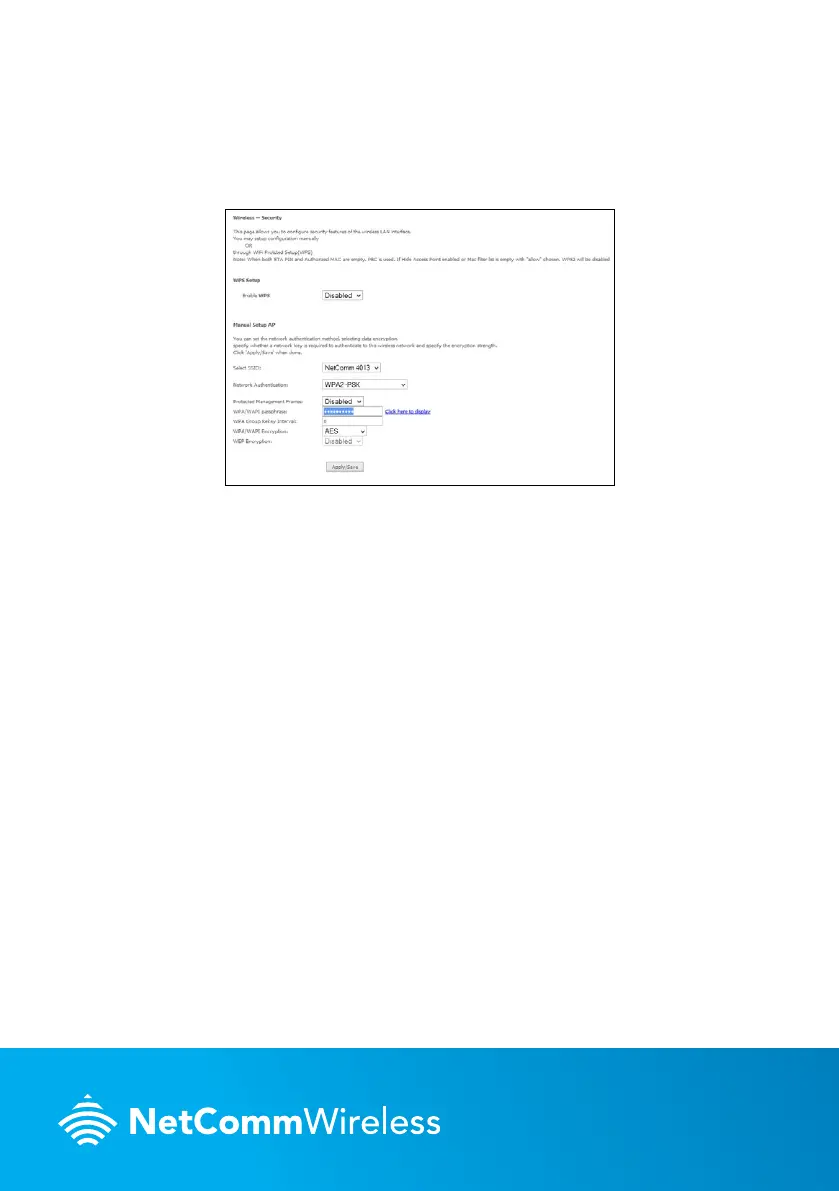

1. Select the Wireless menu from the left side of the screen, then select the Security option
below it. The Wireless Security page is displayed.
2. In the WPA/WAPI passphrase eld, enter the desired password to use for the wireless
network. When choosing a password, try to ensure that it
• is unique;
• is sufciently long (at least 8 characters in length);
• uses a mix of letters, numbers and symbols;
• does not contain any personal information or common words.
3. Click the Apply/Save button.

NetComm NF10WV Specifications

General

DSL WAN	No
Ethernet WAN	Yes
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Memory card slot(s)	-
RJ-11 ports quantity	1
USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	4
Product type	Tabletop router
Product color	White
Power source type	DC
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 95 %

Weight and Dimensions

Depth	54 mm
Width	190 mm
Height	146 mm
Weight	326 g
