NetComm NF10WV User Manual

VDSL / ADSL N300 WiFi Modem Router with VoIP - NF10WV

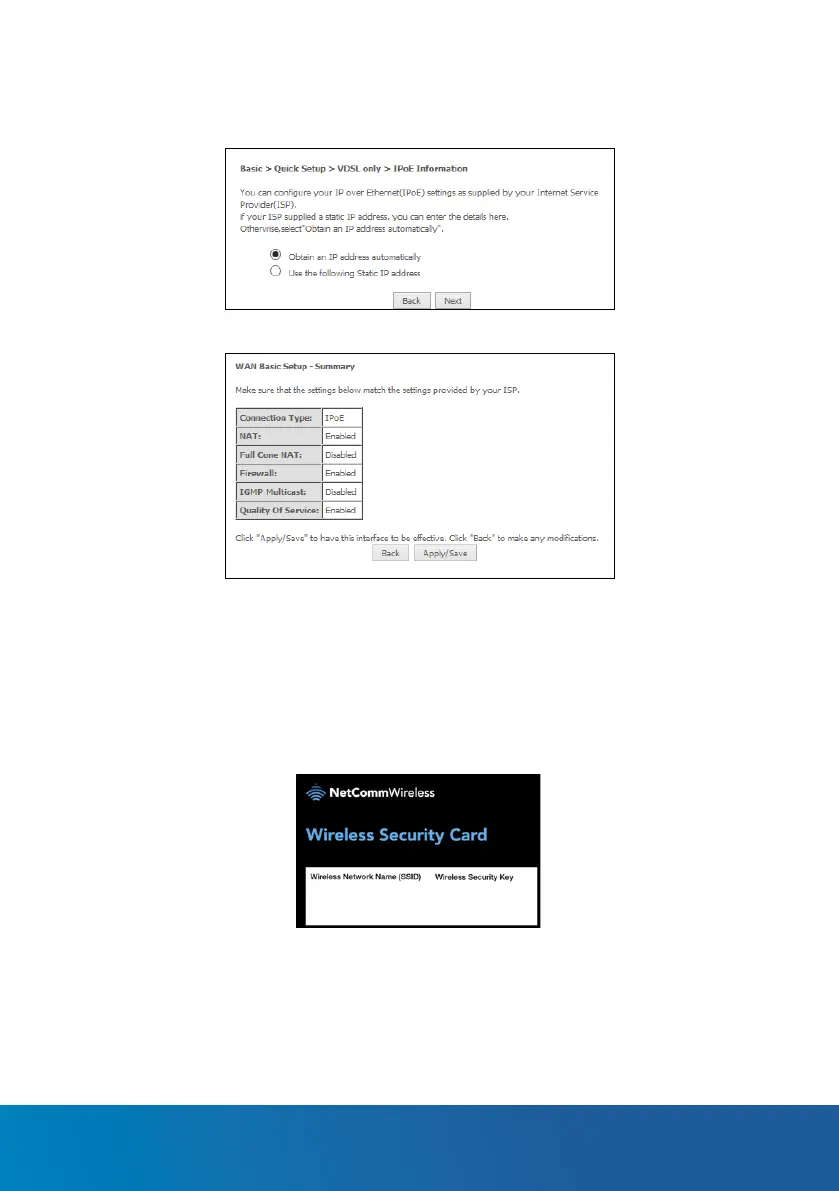

IP over Ethernet (IPoE)
If your ISP has supplied a static IP address, select Use the following Static IP address
and enter the details, otherwise select Obtain an IP address automatically. Click the Next
button.
The settings are displayed in a summary. Click Apply/Save to save them.
CONNECTING WIRELESS DEVICES
The default settings of the router have the wireless function enabled so there is no
conguration necessary in order to use the wireless function, simply connect to the SSID
(network name) listed on the WiFi security card. When prompted, enter the password that
is also printed on the card.
2.4GHz - 2.4GHz -

NetComm NF10WV Specifications

General

DSL WAN	No
Ethernet WAN	Yes
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Memory card slot(s)	-
RJ-11 ports quantity	1
USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	4
Product type	Tabletop router
Product color	White
Power source type	DC
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 95 %

Weight and Dimensions

Depth	54 mm
Width	190 mm
Height	146 mm
Weight	326 g
