NetComm NF10WV User Manual

VDSL / ADSL N300 WiFi Modem Router with VoIP - NF10WV

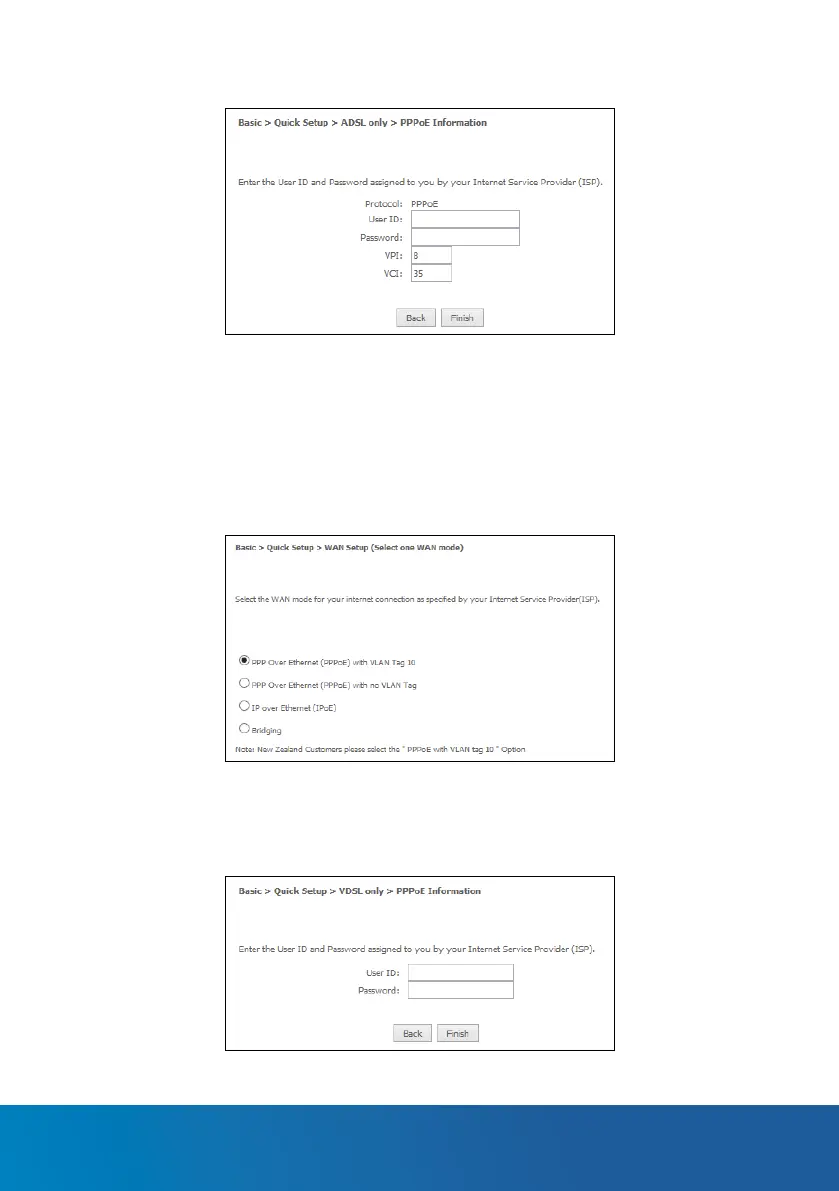

c. In the User ID and Password elds, enter the username and password assigned to you
by your Internet Service Provider (ISP). Click the Finish button.
The account settings are saved and the NF10WV connects to the internet.
VDSL
a. Select VDSL and click the Next button.
b. Select the WAN mode for your internet connection as specied by your Internet Service
Provider (ISP). Click the Next button.
For New Zealand customers, the requirement for VDSL is VLAN tag 10, if you are not sure of
the tagging requirement for your connection, please contact your ISP.
In the User ID and Password elds, enter the username and password assigned to you by
your Internet Service Provider (ISP).
Click the Finish button when you have entered the required details.

NetComm NF10WV Specifications

General

DSL WAN	No
Ethernet WAN	Yes
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Memory card slot(s)	-
RJ-11 ports quantity	1
USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	4
Product type	Tabletop router
Product color	White
Power source type	DC
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 95 %

Weight and Dimensions

Depth	54 mm
Width	190 mm
Height	146 mm
Weight	326 g
