Netgate XG-7100-1U User Manual

Security Gateway Manual XG-7100-1U

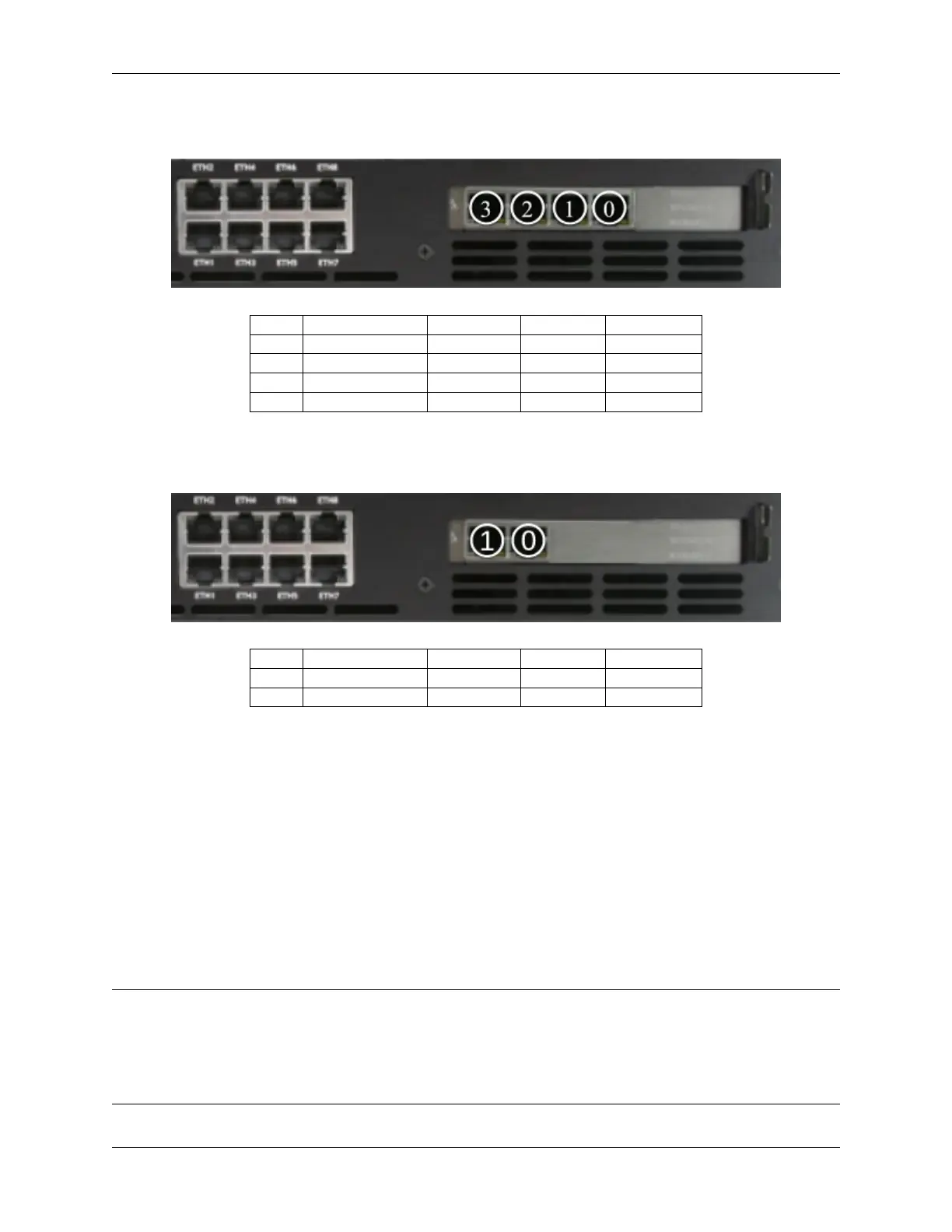

Optional 4-Port Intel 1 Gbps Expansion Card
Num Interface Name Port Name Port Type Port Speed
0 OPT3 igb0 RJ-45 1 Gbps
1 OPT4 igb1 RJ-45 1 Gbps
2 OPT5 igb2 RJ-45 1 Gbps
3 OPT6 igb3 RJ-45 1 Gbps
Optional 2-Port Intel 1 Gbps Expansion Card
Num Interface Name Port Name Port Type Port Speed
0 OPT3 igb0 RJ-45 1 Gbps
1 OPT4 igb1 RJ-45 1 Gbps
Other Ports, Buttons, and Indicators
• Semi-recessed Power (PWR) (performs a graceful shutdown of pfSense® software)
• Recessed Reset Button (performs a hard reset, immediately turning the system off)
• 1x USB 3.0
• Status LED
• Power (PWR) LED (green when powered on, red after a graceful shutdown)
• Console (Mini-USB)
• 2x USB 2.0
Note: When a graceful shutdown is performed, the XG-7100 Power (PWR) LED will turn red but will stay lit. The
Ethernet activity LEDs will turn off. The power supply fan will continue to run. Turning off the rocker switch on the
back of the power supply will eliminate all power to the system.
The power button should be depressed 3-5 seconds to initiate a graceful shutdown or to power on the device when the
PWR LED is red.
© Copyright 2020 Rubicon Communications LLC 22
