Netgate XG-7100-1U User Manual

Security Gateway Manual XG-7100-1U
System

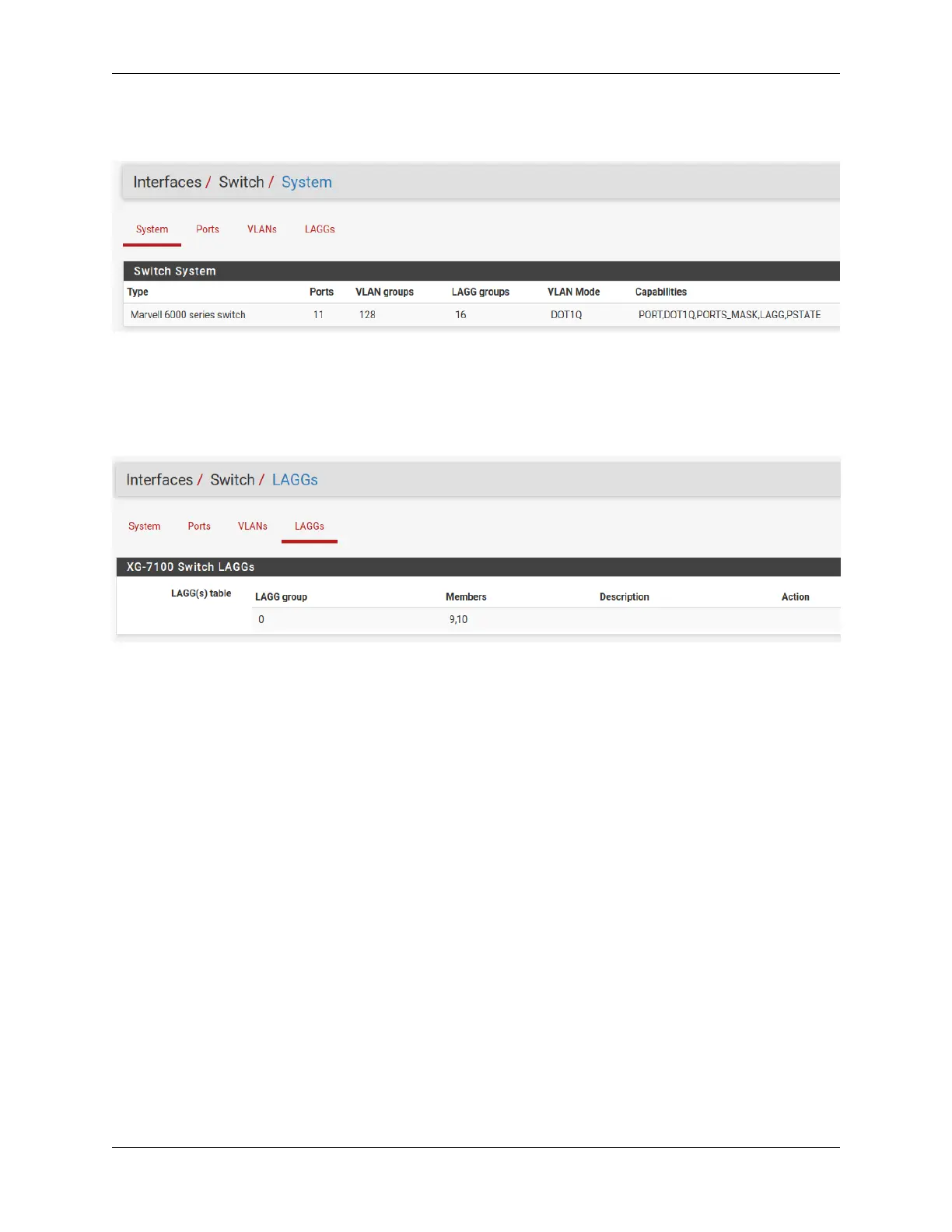

Fig. 1: Information on the Marvell 6000 switch
LAGGs
Fig. 2: Information on members of the switch LAG
Ports
Information on switchport status and port names. If 802.1q is enabled, this section can also be used to specify the
native VLAN ID for each port. The Port VID defined will be used to tag inbound untagged traffic.
VLANs
Enable/Disable 802.1q VLAN mode. Configure VLAN access/trunk interfaces with 802.1q or configure port groups
with Port VLAN Mode.
2.1.2 Interfaces Section
There is also relevant configurations under Interfaces -> Assignments.
