Wireless Cable Gateway CG3000D/CG3100D User Manual
Managing Your Network 4-7
v1.0, September 2009

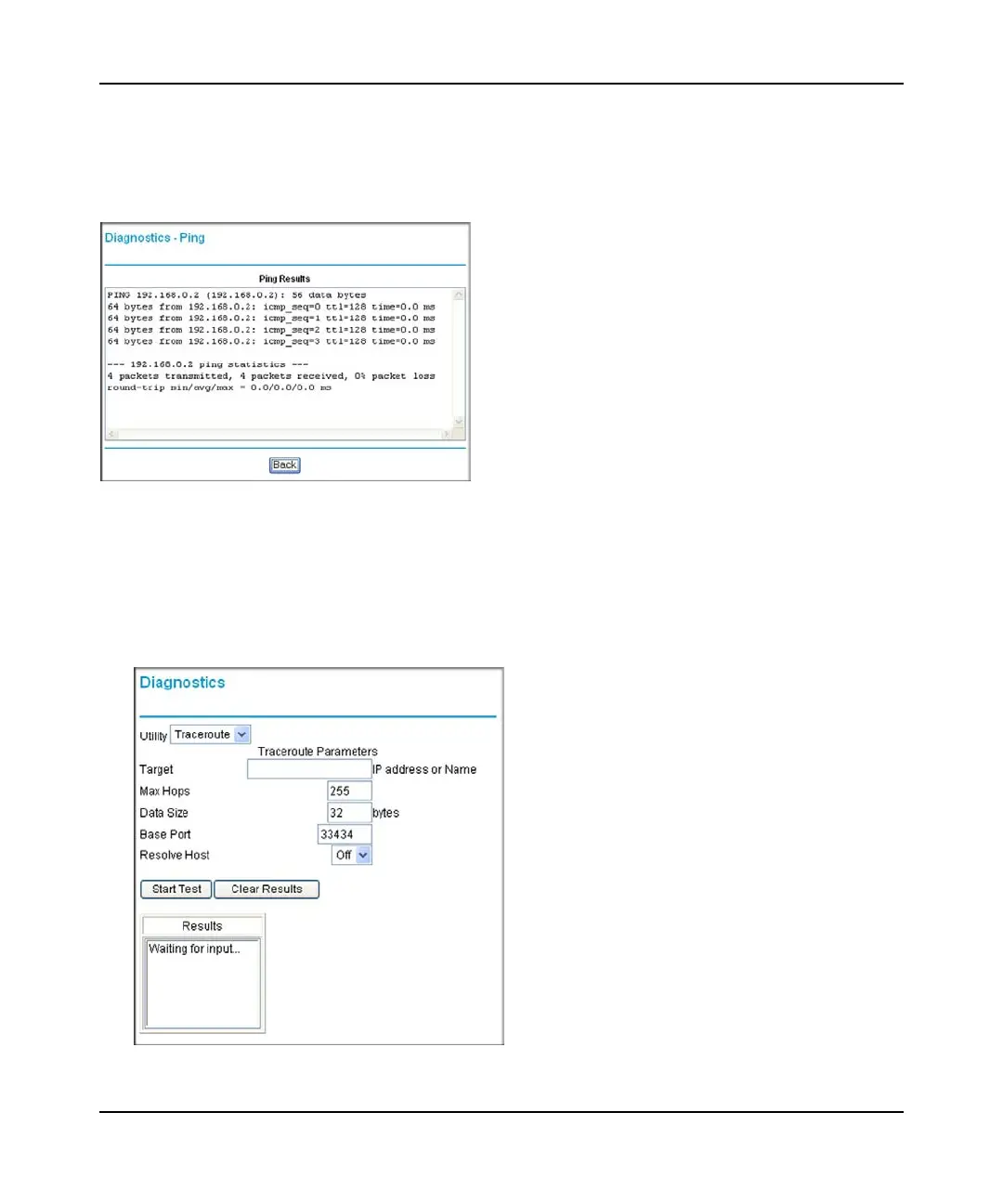

Testing Connectivity with the Ping Command
To start a ping test, enter the IP address in the Diagnostics screen, and click the Ping button. The
Ping Results are displayed:
Figure 4-6
Traceroute
To start a Traceroute test:
1. In the Diagnostics screen, select Traceroute in the Utility field:
Figure 4-7
