Wireless Cable Gateway CG3000D/CG3100D User Manual
Customizing Your Network 5-3
v1.0, September 2009
To configure LAN IP settings:
1. In the main menu, under Advanced, select LAN IP. The LAN IP screen displays.

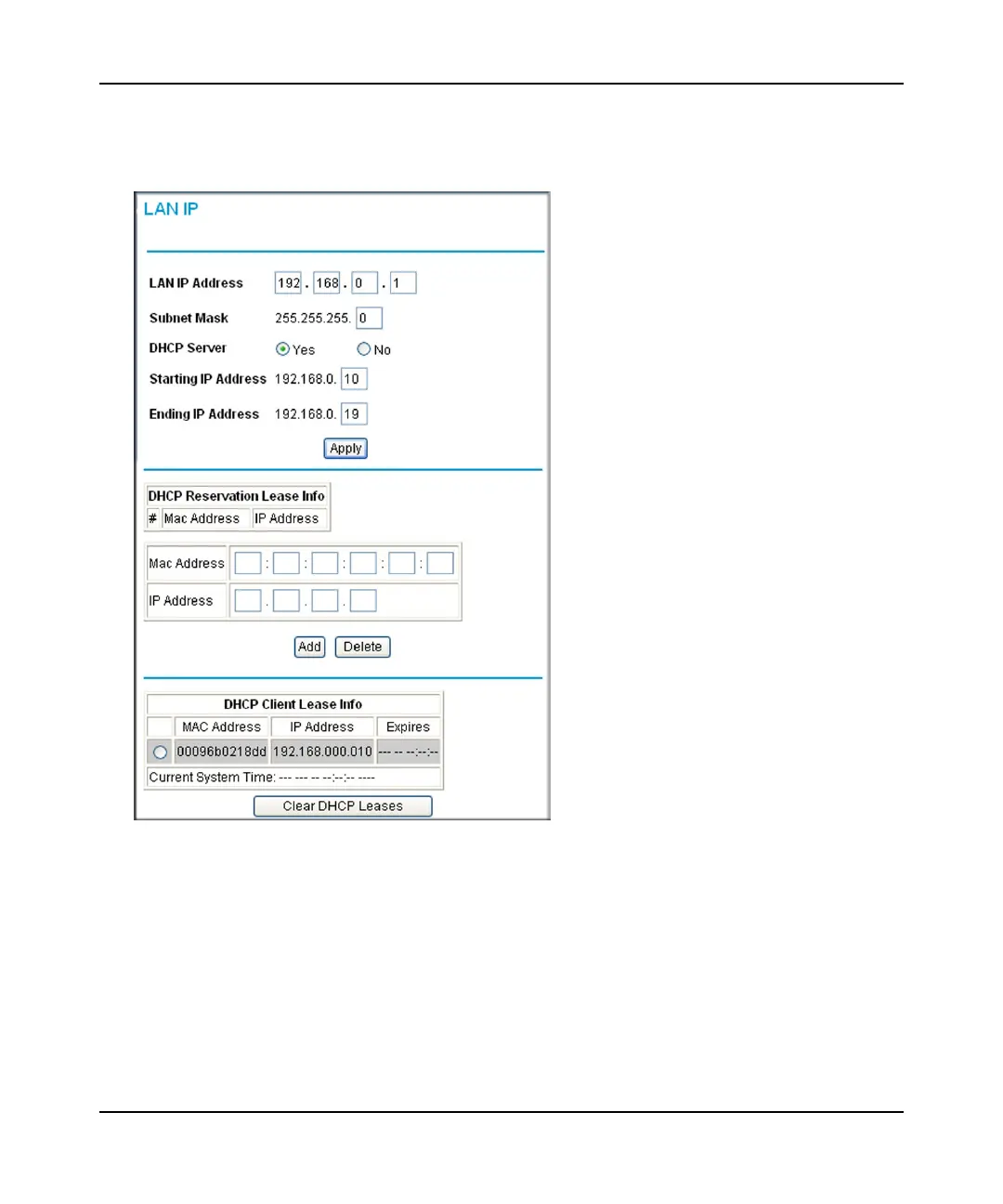

Figure 5-2
2. Enter the following LAN IP settings:
• LAN IP Address. Enter the LAN IP address that you would like to assign for your
gateway in dotted decimal notation. The factory default settings is 192.168.0.1.
• IP Subnet Mask. Enter the network number portion of an IP address. Unless you are
implementing subnetting, use 255.255.255.0 as the subnet mask.
