Administration
92
N750 Wireless Dual Band Gigabit ADSL Modem Router DGND4000

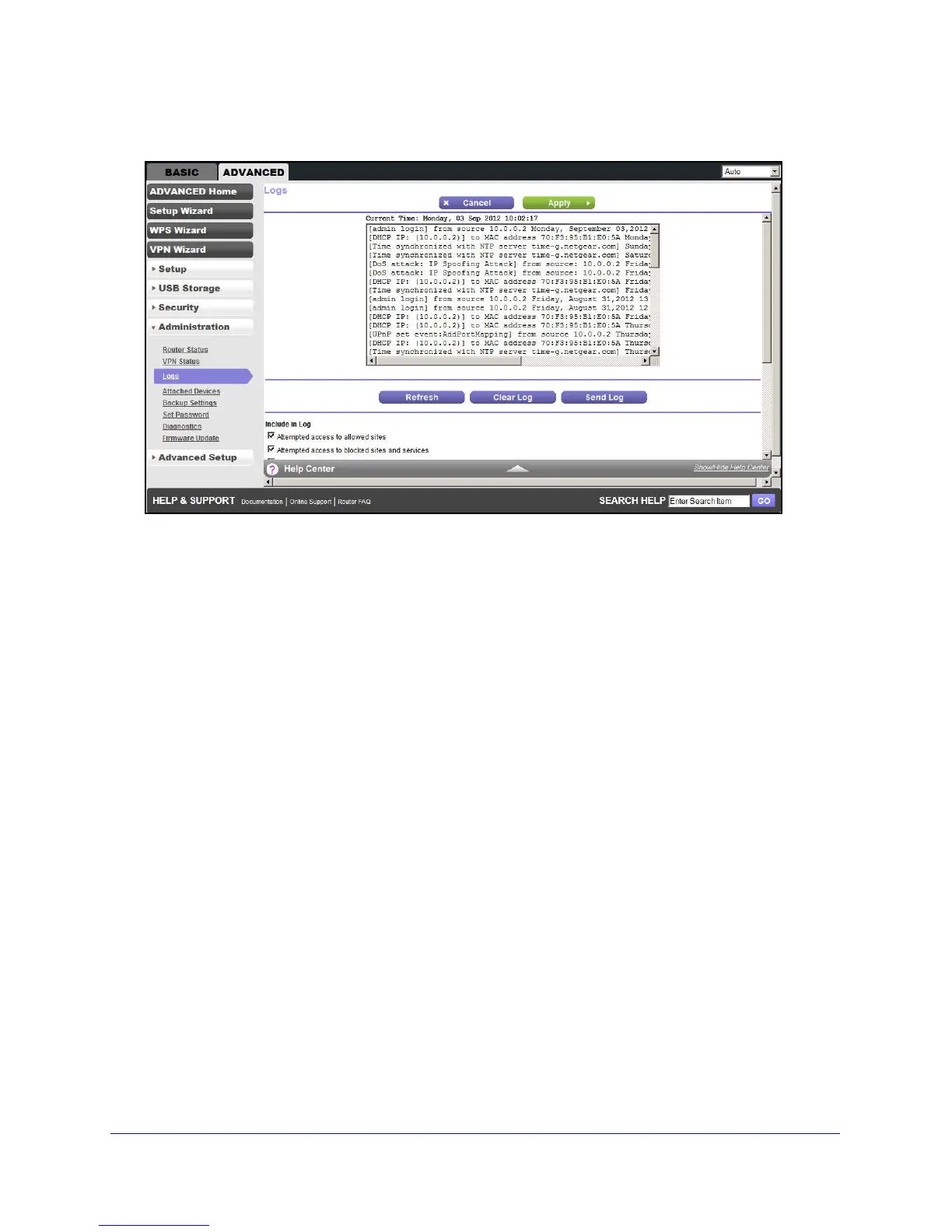

Select ADVANCED > Administration > Logs. The Logs screen displays.
The Logs screen shows the following information:
• Date and time. The date
and time the log entry was recorded.
• Source IP. The IP
address of the initiating device for this log entry.
• Target address. Th
e name or IP address of the website or news group visited or to which
access was attempted.
• Action. Whether t
he access was blocked or allowed.
To refresh the log screen, click the Refre
sh button.
To clear the log entries, click the Clear Log bu
tton.
To email the log immediately, click the Send Log bu
tton.
Attached Devices
See Attached Devices on page 31.
Manage the Configuration File
The configuration settings of the N750 Modem Router are stored within the wireless modem
router in a configuration file. You can back up (save) this file to your computer, restore it, or
reset it to the factory default settings.
