3G Broadband Wireless Router MBR624GU User Manual
1-4 Installing Your Router
v1.0, January 2009

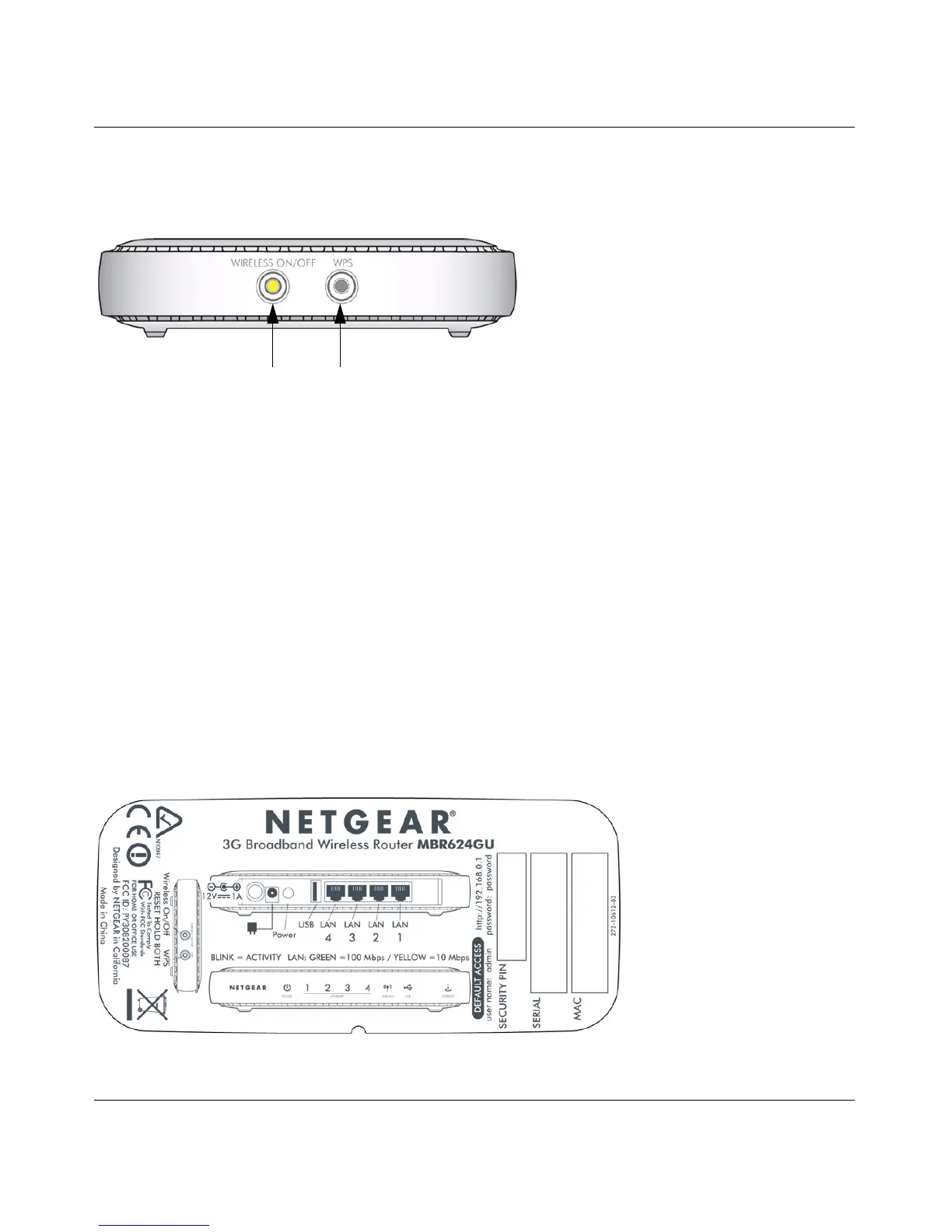

Router Side Panel
The side panel of the router has a Wireless On/Off button and a WPS button.
• WPS. You can use the Wi-Fi Protected Setup (WPS) feature with clients on the network that
are
Wi-Fi certified and WPA capable. See “Using Push 'N' Connect (WPS) to
Configure Your Wireless Network” on page 2-13.
• Wireless On/Off. By default, the router is set up to work as a wireless access point. Pressing
this button turns the wireless access point feature off and on. You can also do this through the
Wireless Settings screen (see the link to your User Manual on the Resource CD.)
• Factory default settings. Pressing both buttons at the same time resets the unit the factory
default settings.
Router Label
The label on the back of the router shows the router’s MAC address, serial number, and factory
default login information.
Figure 1-3
Figure 1-4
