ADSL2+ Modem Router User Manual
16
4.3.1 WAN
4.3.1.1 WAN-(Channel Configuration)
To enjoy the surfing, we should have the most basic configuration of the router at first. In this
chapter, you can set the basic network parameters required to access the Internet.
The router supports the following three common means to access:
Dynamic IP access: ISP (such as China Telecom) assigns IP address to users via DHCP.
Static IP access: ISP provides a static IP address to users.
PPPoE/PPPoA dial-up access(ADSL): use PPPoE/PPPoA virtual dial-up connection to the Internet.

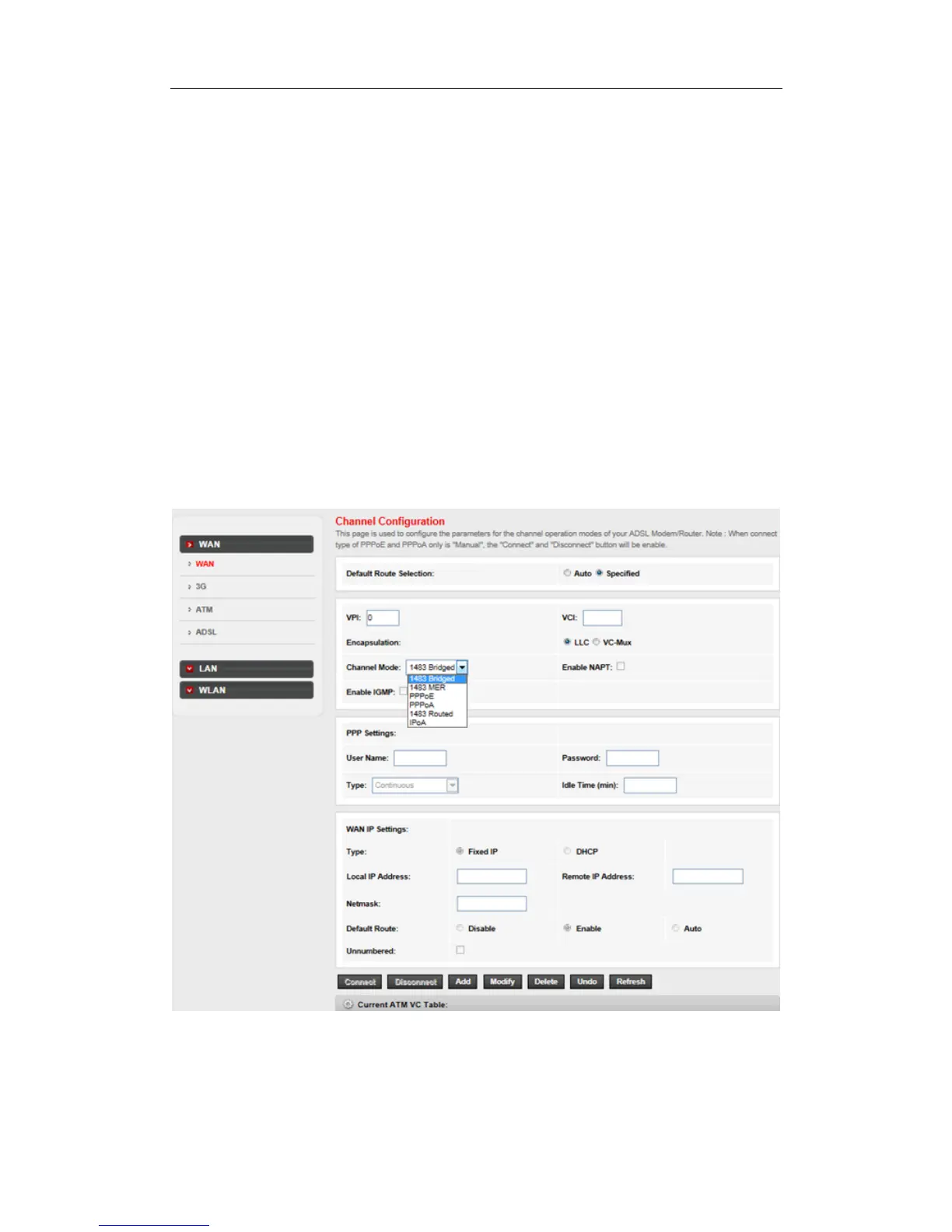

Choose Setup> WAN>WAN menu, you will be able to configure the parameters for the channel
operation modes of your ADSL Modem/Router
There are many parameters on the channel configuration:
VPI: ATM VPI for the PVC channel. The valid range is from 0 to 255. Please input the value
provided by your ISP.
