Netis DL4323D Quick Installation Guide

1.Package Contents
* This QIG is for all netis 150Mbps/300Mbps wireless N ADSL2+ modem routers, including
models- DL4310, DL4310D, DL4311, DL4311D, DL4312, DL4312D, DL4322, DL4322D,
DL4323, DL4323D , etc.
* The product model shown in this QIG is DL4323, as an example.
netis Wireless N ADSL2+ Modem Router Quick Installation Guide
1

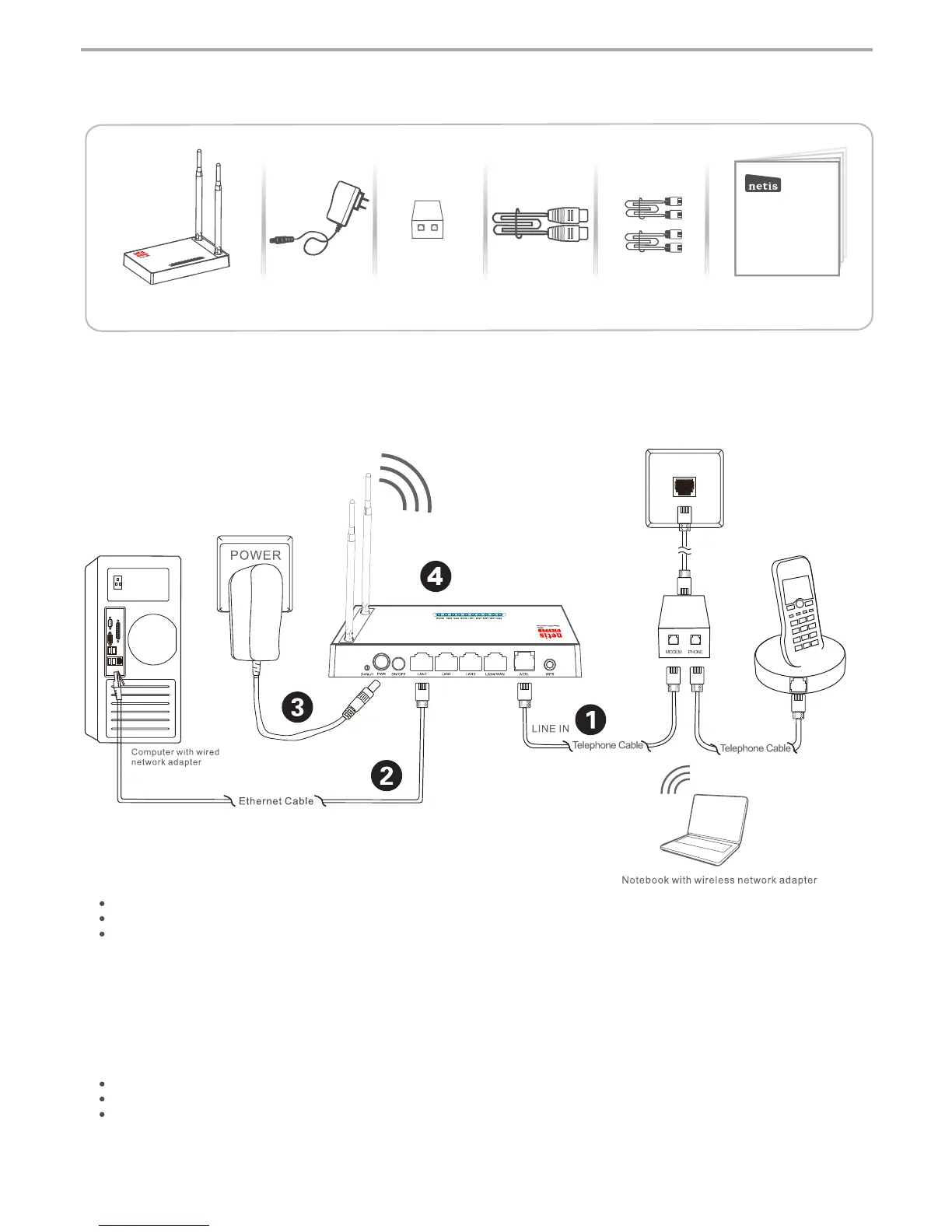

2.Hardware Connection
Wireless N ADSL2+
Modem Router
Power Adapter
ADSL Splitter
Ethernet CableTelephone Cable *2
QIG
MODEM
netis Wireless N ADSL2+ Modem Router
Quick Installation Guide
2.1. Connect the ADSL line with the attached telephone cable.
Connect the LINE port of ADSL Splitter to the wall jack with a telephone cable.
Connect the MODEM port of ADSL Splitter to the ADSL port on netis Modem Router with the other telephone cable.
Connect your telephone to the PHONE port of ADSL Splitter.
Tip: If no telephone is needed, please connect the ADSL port on netis Modem Router to the wall jack with the
phone cable directly.
2.2. Connect your computer to one of the LAN ports on netis Modem Router with an Ethernet cable.
2.3. Plug the provided Power Adapter into the PWR jack of netis Modem Router and the other end to a standard
electrical socket.
2.4. Wait for one minute then check if the LED indicators of the Modem Router display normally.
PWR: Solid on.
ADSL: Solid on when the modem is synchronized.
LAN: Solid on or flashing if the corresponding LAN port is connected.
Tip: If the LED indicators display abnormally, please check if all the cables are well connected. If the ADSL LED is
off or flashing, please contact your ISP (Internet Service Provider) to check the Internet connection.
PHONE

Netis DL4323D Specifications

General

Firewall	Yes
NAT functionality	DMZ Virtual Server ALG NAT Exclude IP Port Trigger FTP ALG Port Nat IP Mapping
Security algorithms	64-bit WEP, 128-bit WEP, AES, HTTPS, SNMP, SSID, TKIP, WPA, WPA-AES, WPA-TKIP, WPA2-AES, WPA2-TKIP
Authentication method	802.1x RADIUS
Certification	CE, FCC
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Cables included	LAN (RJ-45), Phone (RJ-11)
Package type	Box
Receive power	20 dBmW
Antennas quantity	2
Antenna connector type	SMA dipole
Antenna gain level (max)	5 dBi
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro x64, Windows 2000, Windows 2000 Professional, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
VPN support	PPTP, L2TP, IPsec
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Routing protocols	IP, RIP-1, RIP-2
Supported network protocols	IPv6, ATM, PPP, DNS, DDNS, IGMP
Frequency range	2.4 - 2.4835 GHz
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Product type	Tabletop router
Product color	White
LED indicators	ADSL, LAN, Link, Power, WLAN, WPS
Memory card slot(s)	No
RJ-11 ports quantity	1
Ethernet LAN (RJ-45) ports	4
Output current	0.5 A
Output voltage	12 V
Power source type	DC

Weight and Dimensions

Depth	144.5 mm
Width	90 mm
Height	26.5 mm
