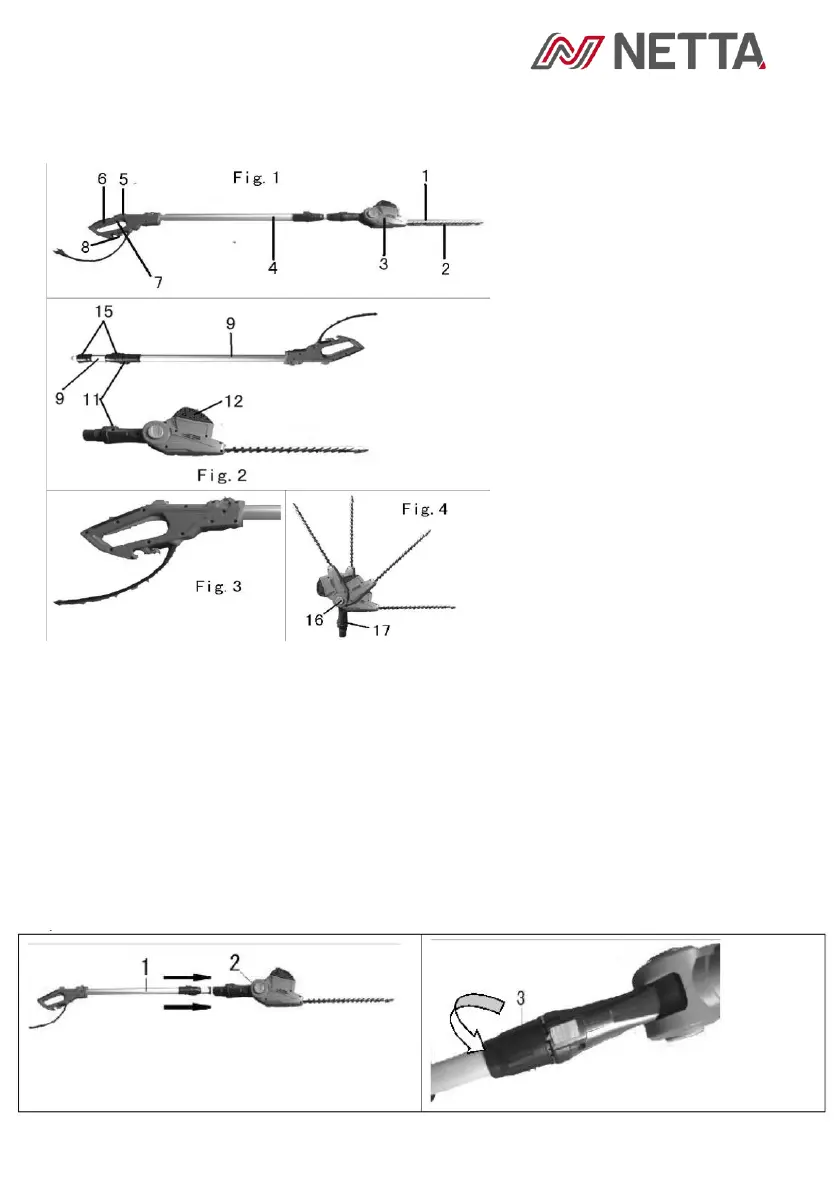

DIAGRAM OF THE PRODUCT
ASSEMBLING THE PRODUCT
Unpack the product and inspect it to ensure no damage has occurred.
Do not discard the packaging until you have inspected and operated the item.
ASSEMBLING THE WORKING HEAD TO THE TELESCOPIC POLE
Insert part 1 into part 2, the tubes are egg-shaped and will only install one way.
Twist part 3 to lock it into place.
Fig. 1
1. Blade Guard
2. Blade
3. Four-Position Pivoting
Head
4. Telescopic Pole
5. Lock-Off Button
6. Rear Handle
7. Switch Trigger
8. Cord Retainer
Fig. 2
9. Packed Tool
11. Collar
12. Trimmer Head
15. Collar
Fig. 4
16. Pivot Button
17. Notches
