Assembly
Loose Parts
Note: Use the chart below to identify parts used for assembly.
DESCRIPTION QTY. USE
Gage wheel
Shoulder bolt
Lock nut 3/8” (with patch on threads)
2
2
2
Install gage wheels
Link Bracket
Washer
Cotter pin
1
2
2
Install link bracket
Adjustable links
Washer
Cotter pin 1” (26 mm)
2
2
2
Install front mount to mower
Grass deflector
Spring
Bolt 3/8– 24 x 3-1/2” (89 mm)
Lock nut 3/8”
1
2
2
2
Install grass deflector
Up stop 1 Install mower up stop
Hairpin cotter–large
Washer 3/4” (19 mm)
Link pin
Hairpin cotter–small
Washer
2
2
1
3
3
Install mower to tractor
Operator’s Manual 1 Read before operating
Important
If you have a 1999 or earlier tractor and are
installing a 2000 or later 52 in. deck, a kit (Part number
TR105D1518) will be needed to install the deck. Obtain
this kit from an Authorized Service Dealer.
Mower Preparation
1. Attach gage wheels to the outside of arms on rear
carrier assembly. Grease fitting on wheel must face in
(Fig. 2).
2. Secure with shoulder bolt and 3/8” lock nut, with
internal locking patch on threads (Fig. 2).
Note: Grease wheels.
4
1
5
3
2

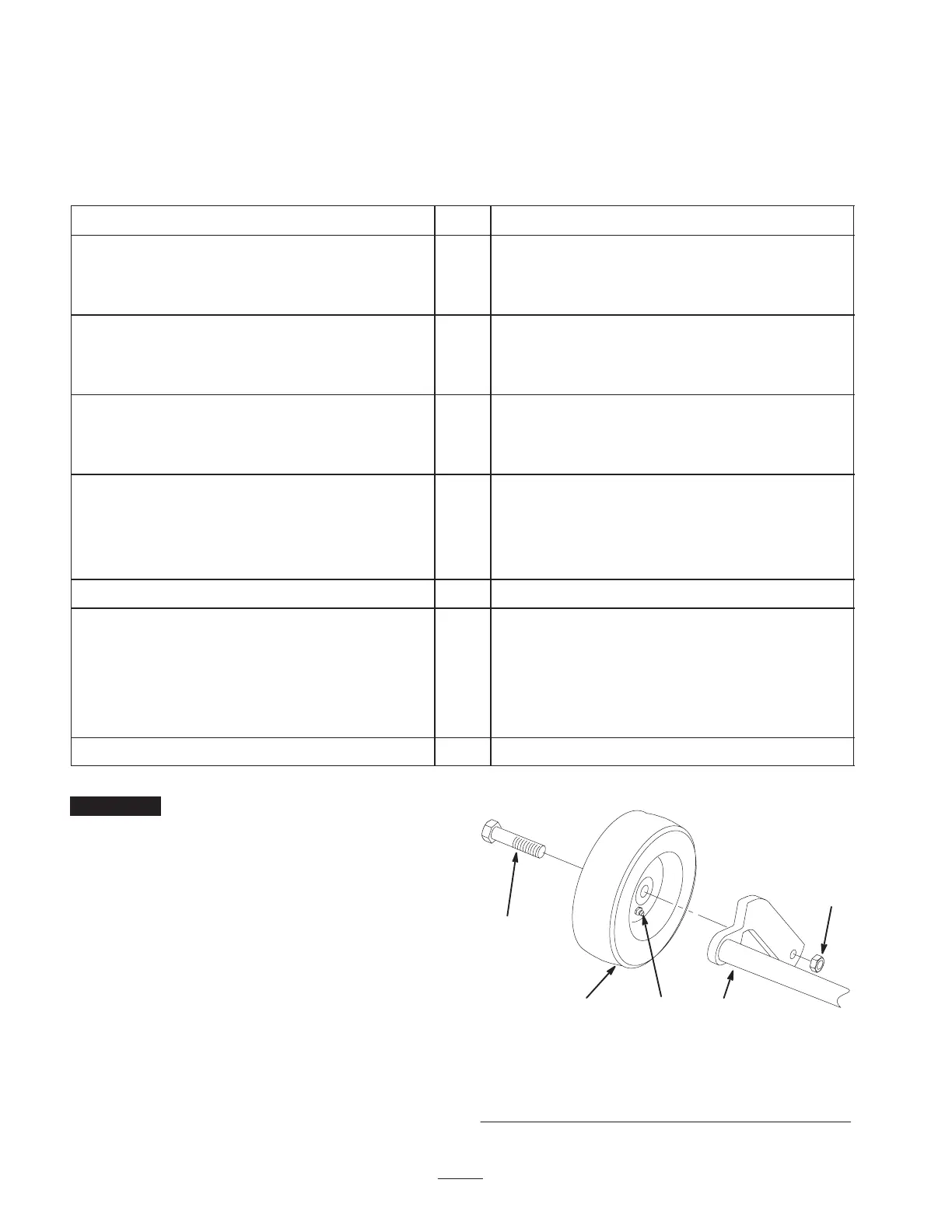

m-4760
Figure 2
1. Carrier arm
2. Wheel
3. Grease fitting in
4. Shoulder bolt
5. Lock nut 3/8” (with patch)
