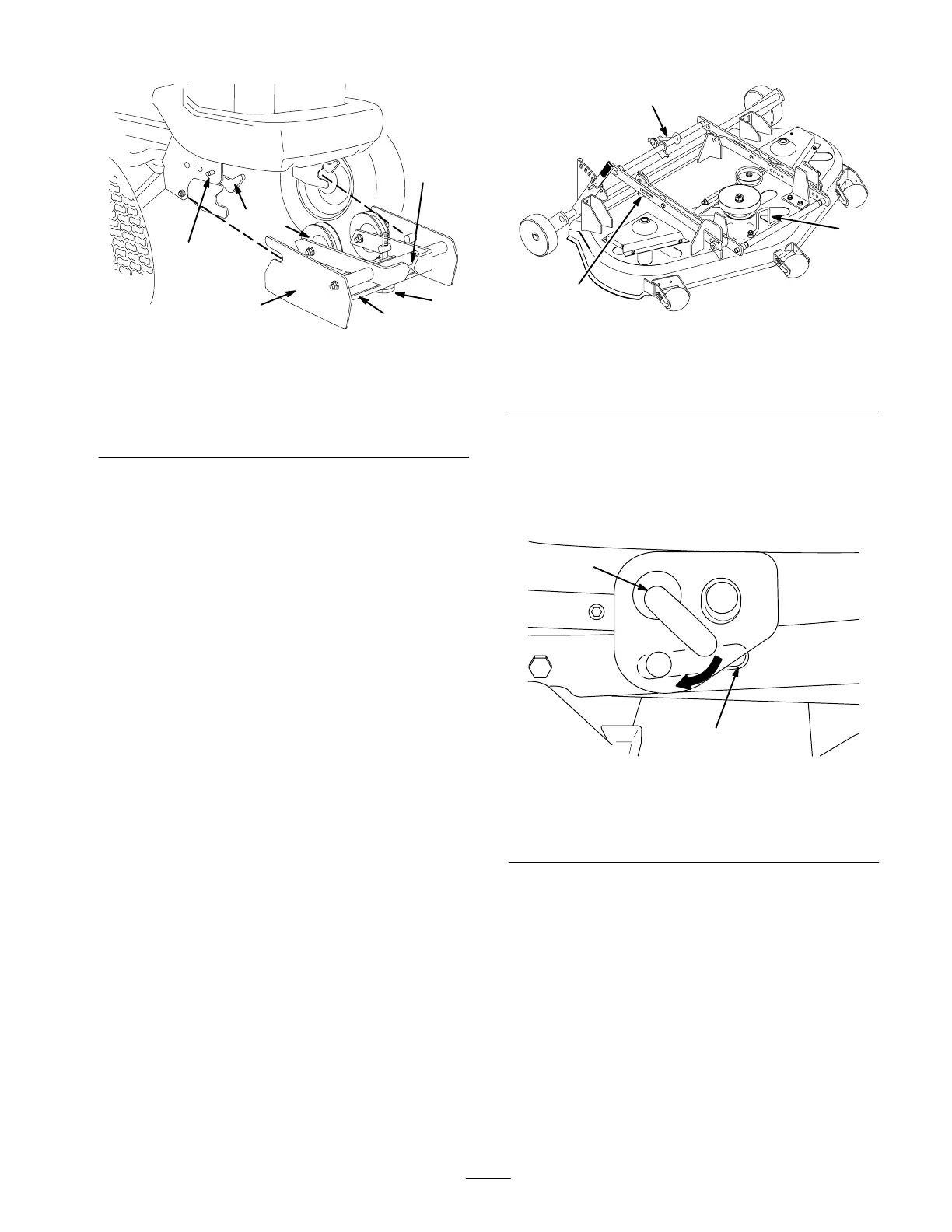

Figure 4
1. Quick attach latches
2. Pulley box
3. Idler pulley
4. Belt tension release arm
5. Belt tension adjustment
knob
6. Belt tension indicators
7. Quick attach buttons (one
on each side)
A. Ensure that the latches on the tractor’s front quick
attach are open.
B. Slide the pulley box into the quick attach latches and
seat it.
C. Close the latches.
Attaching the Mower
1. Make sure the mower wheels are set for low height of
cut.
2. Make sure the attachment lift is in the full up position.
3. Set the parking brake, stop the engine, and remove the
ignition key.
4. From the driver’s right--hand side of the tractor, slide
the mower under the tractor.
5. After sliding the mower under the tractor, position it so
that the slots in the side of each of the mower’s
mounting brackets (Fig. 5) are aligned directly below
the tractor’s attachment lift arm.
m--3514
1
2
3
Figure 5
1. Slots i n the side mounting
brackets (2)
2. Belt guide
3. Front--to--rear adjustment
rod
6. Start the tractor.
7. Lower the attachment lift arm fully and adjust the
deck’s position until you can pull out on the J--pin of the
lift arm and slide it into the slot in the mounting bracket
of the mower (Fig. 6).
m--3456
1
2
Figure 6
Left Side of Tractor Shown
1. J-pin 2. Mower slot in side
mounting bracket.
8. On the left side, pull out the attachment lift J-pin and
slide it into the slot on the other mower mounting
bracket.
9. After the two J-pins are seated through the mower
mounting brackets, using the attachment lift and your
hand on the right front adjustable mower wheel bracket
(Fig. 7), position the mower so its attachment bar fits
into the mid quick attach mount.
