SECTION 10 - ENGINE

10-118

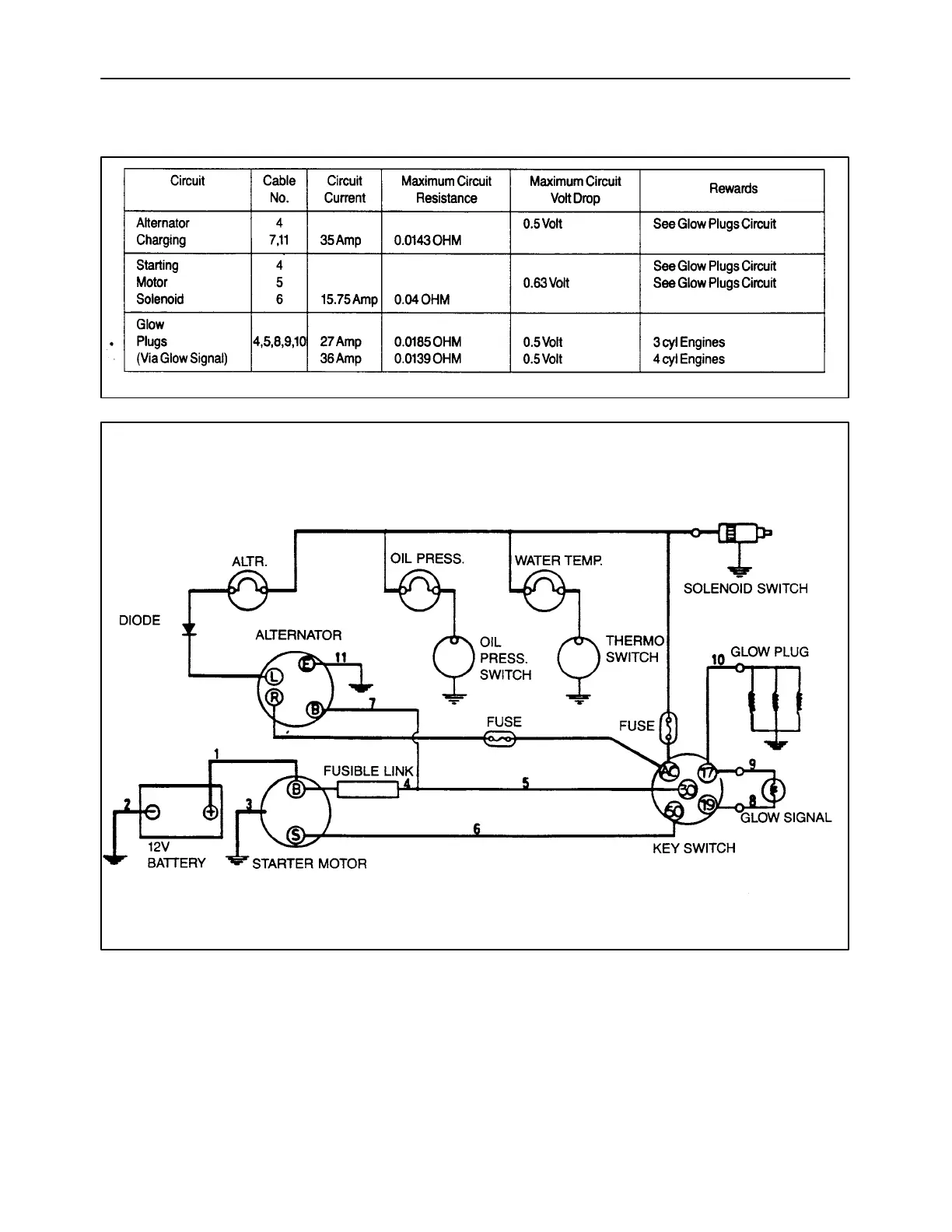

MAXIMUM CIRCUIT RESISTANCE

RESISTANCE OF BATTERY CABLES 1, 2, & 3 NOT TO EXCEED 0.0018 OHM

19992989

208

19992988

* *

209

*Maximum current draw for oil pressure switch is

0.42 amps (5-watt max. bulb).

**Diode capacity: Current 3 amp. Reverse voltage

600 volt.
