New Holland TC24D User Manual

SECTION 2 - OPERATION
2-9

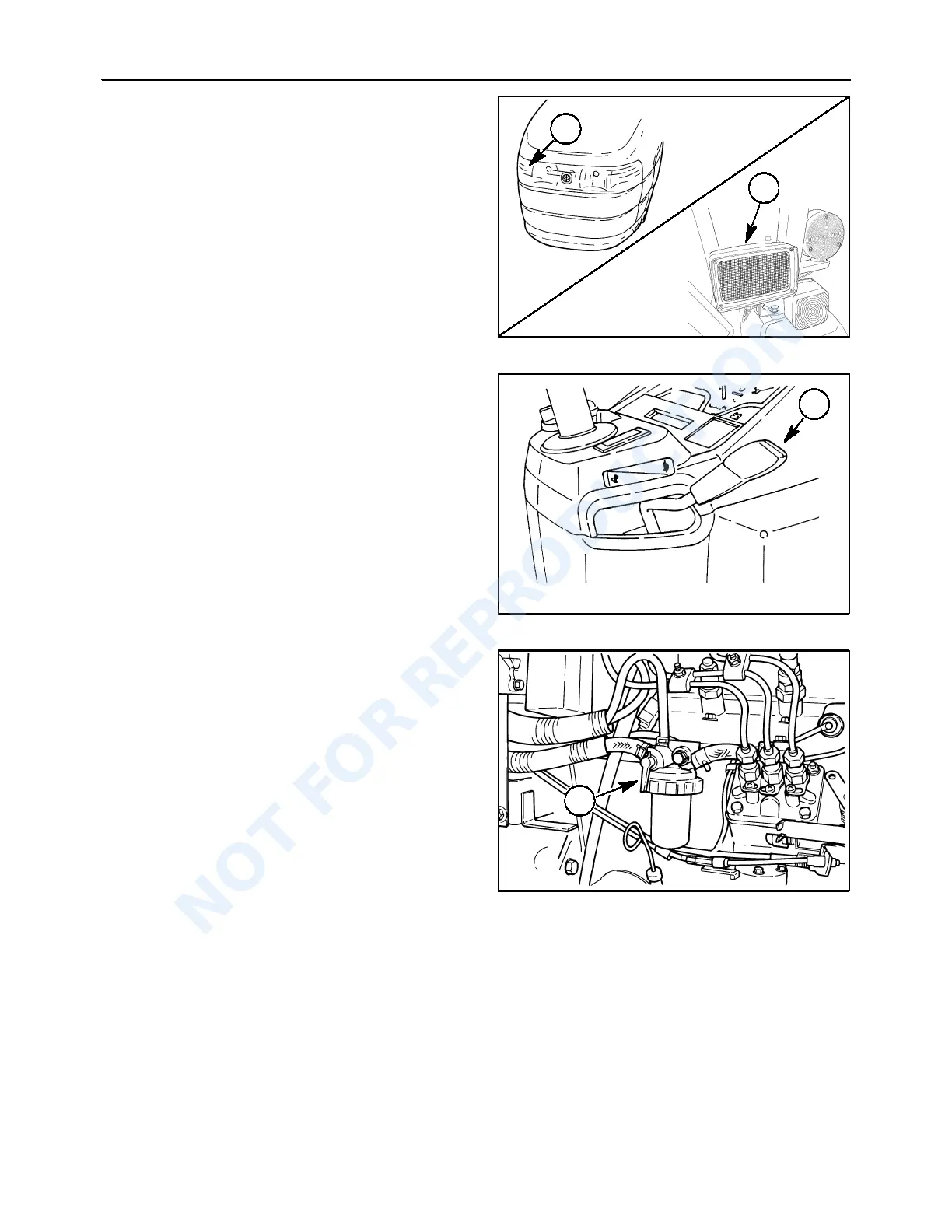

Rear Work Light (Optional)
The optional rear halogen work light is mounted to
the ROPS base and is operated by a push-button
switch located on the light. Key switch and headlight
switch must be in the “ON” position for the rear work
light to operate.
NOTE: To mount a rear work light to ROPS base,
Bracket #SBA355761281 is required.
19984107
40020583
3
4
13
THROTTLE CONTROLS
The hand throttle, 1, is located on the right-hand side
of the console. Pull the throttle rearward to increase
engine RPM. Push the throttle forward to decrease
engine RPM.
19984154
1
14
FUEL SHUTOFF VALVE
The fuel shutoff valve, 1, is found in the fuel line on
top of the fuel filter. The fuel filter is located on the
right-hand side of the engine.
To open the fuel shutoff valve, move the handle until
it points straight up and down. To close the valve,
move the handle to the horizontal position. Always
close the fuel shutoff valve when servicing any part
of the fuel system.
19983651
1
15
NOT FOR REPRODUCTION

New Holland TC24D Specifications

General

Manufacturer	New Holland
Model	TC24D
Category	Tractor
Engine Manufacturer	Shibaura
Engine Model	N843L
Engine Type	Diesel
Cylinders	3
Engine Displacement	1.3 L
Power	24 hp
Rated RPM	2600
Cooling System	Liquid
Fuel Type	Diesel
Transmission Type	Hydrostatic
Number of Gears	Infinite (2-range)
Drive Type	4WD
Hydraulic System Type	Open center
PTO Speed	540 RPM
Three-Point Hitch	Category I
