SECTION 3 - LUBRICATION AND MAINTENANCE
3-29
FRONT -WHEEL DRIVE
FRONT AXLE DIFFERENTIAL CASE AND
FINAL REDUCTION GEAR CASES
Checking the Front Axle Differential Case and
Final Reduction Gear Case Oil Level
NOTE: Check the front axle differential case and final
reduction gear case oil level after every 50 hours of
operation.

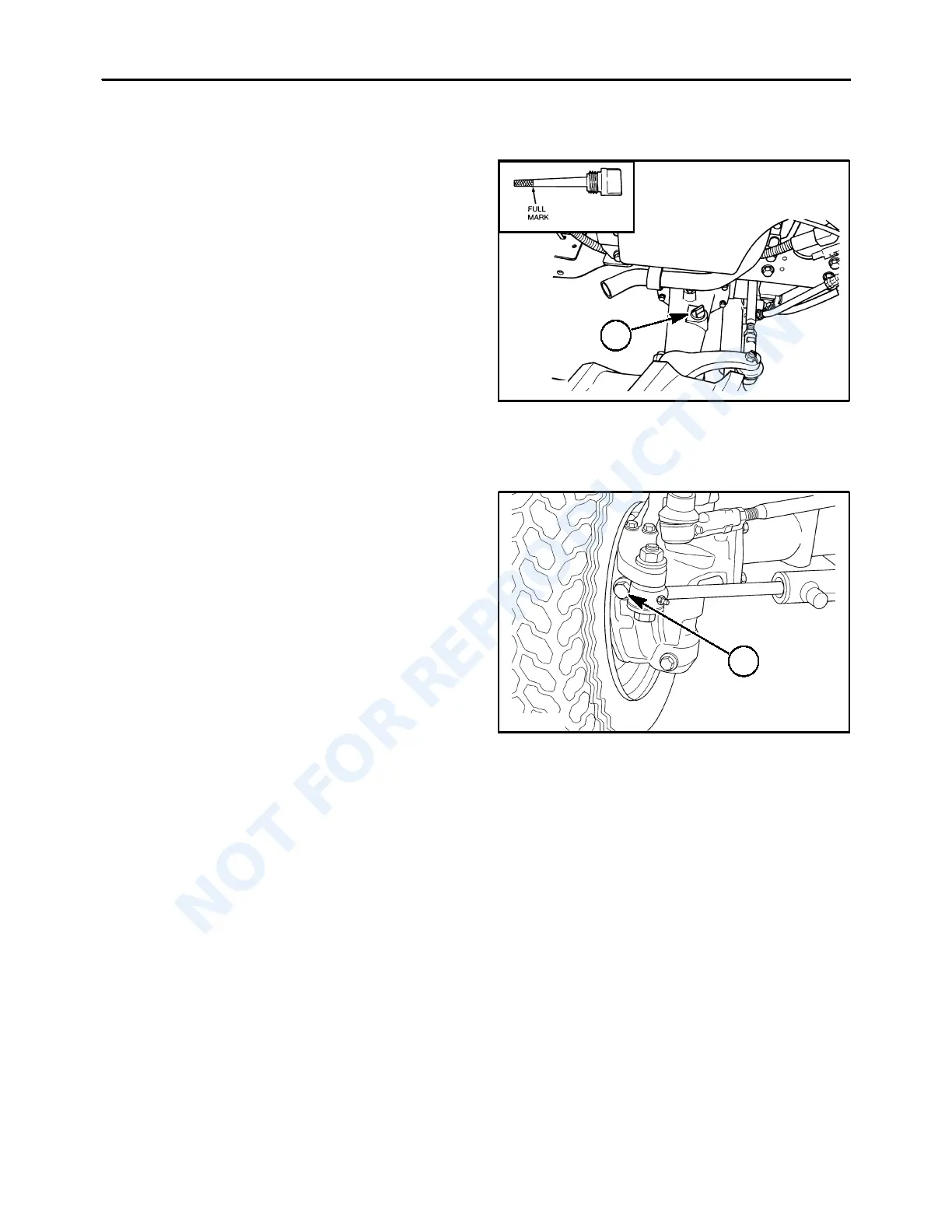

1. With the tractor standing level and the engine off,
check the front axle oil level using the dipstick, 1.
2. The oil is at the correct level when it reads
between the full mark and the lower end of the
dipstick. If capacity is low, add NH 134 hydraulic
oil through the combined dipstick/filler plug. Do
not fill beyond the dipstick full mark, or the front
axle and differential housing will be overfilled.
19981869
1
45
3. Install the dipstick/filler plug.
4. To check the final reduction gear case oil level,
remove the filler plug, 1. The oil is at the correct
level when it is at the bottom of the fill port
opening.
19983633
1
46
NOT FOR REPRODUCTION

New Holland TC24D Specifications

General

Manufacturer	New Holland
Model	TC24D
Category	Tractor
Engine Manufacturer	Shibaura
Engine Model	N843L
Engine Type	Diesel
Cylinders	3
Engine Displacement	1.3 L
Power	24 hp
Rated RPM	2600
Cooling System	Liquid
Fuel Type	Diesel
Transmission Type	Hydrostatic
Number of Gears	Infinite (2-range)
Drive Type	4WD
Hydraulic System Type	Open center
PTO Speed	540 RPM
Three-Point Hitch	Category I
