ADJUSTING THE HANDLE TIGHTNESS
The handle tightness can be maintained by adjusting the tightening nut located
on the lower, left hand side of the house using the socket wrench and Allen key
provided.

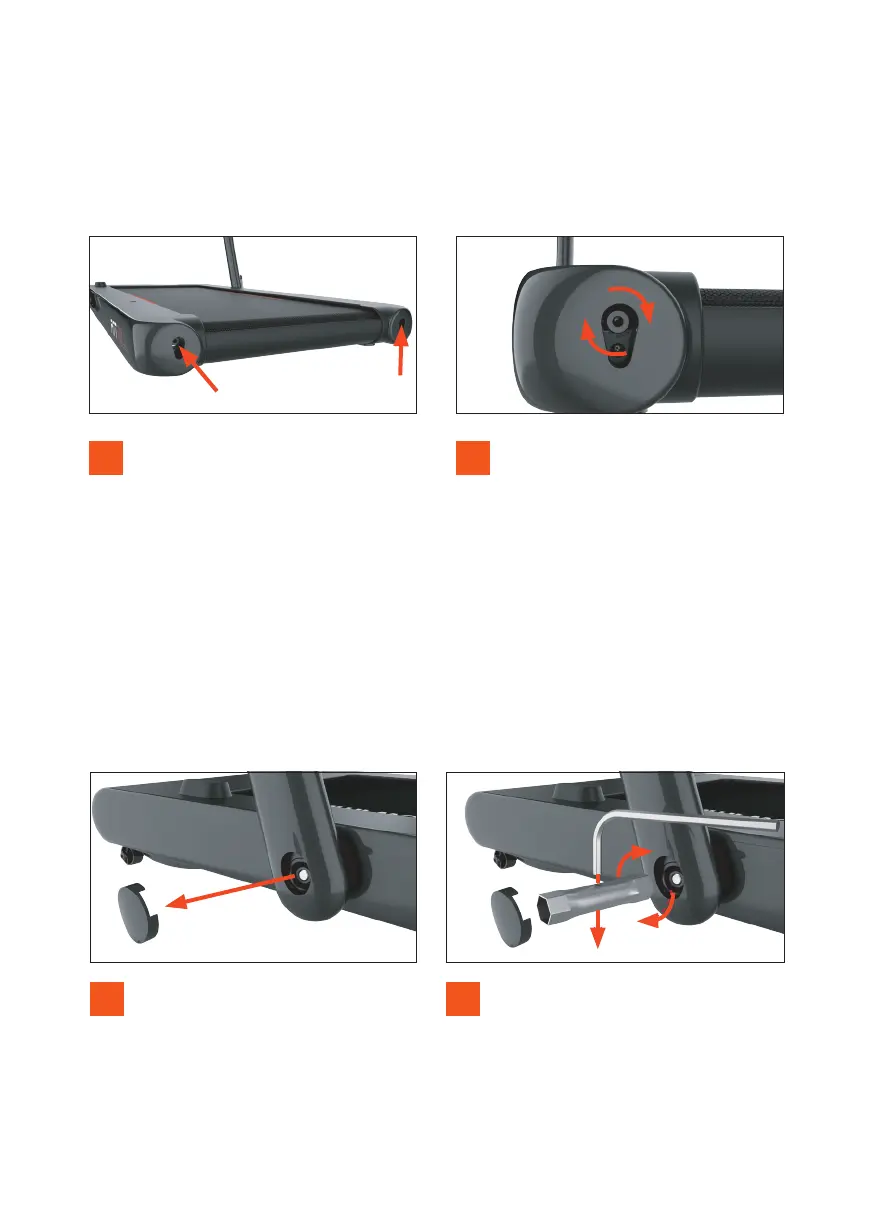

1 2
Remove cap to reveal the
tightening nut.
Insert the Allen key through the
socket wrench and attach to the nut.
Rotate clockwise to tighten or anti-
clockwise to loosen.
This should be done with handle
in the down position and regularly
maintained for safety.
RUNNING BELT ALIGNMENT
To avoid fault or unnecessary wear, always check to ensure the belt is aligned in
the centre of the unit and is running parallel. Two orange strips run parallel on
the running belt and should always be equidistant from each side of the FITT Mill
frame. These should be used a clear indicator if the belt does become misaligned.
2
Once loose this will reduce the tension
of the running belt and allow the belt
to be realigned. Carefully move the
belt in the required direction, making
sure the belt is repositioned to be
equidistant from each side.
1
If the belt is not aligned, use the
Allen key provided to loosen the bolts
as located.
Ensure both are completely loose of
resistance.
11
