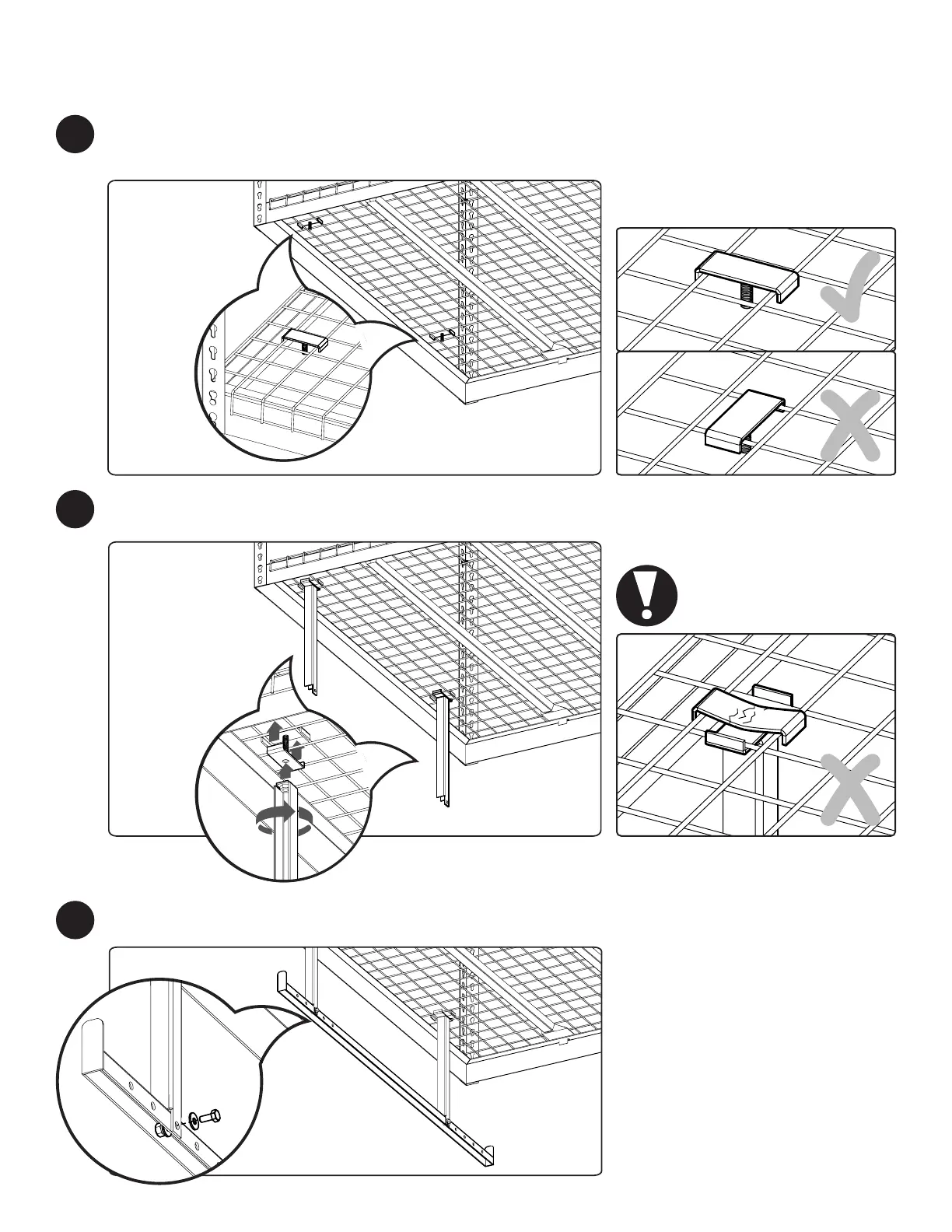

Place the top grid clips on top of the wire grid with the threaded rod facing down through the
wire grid sections. These should be placed where you will be installing the vertical drop bars of the
drop bar assembly.
Hanging Bar Assembly Installation
Fasten the hanging clothes bar to the vertical drop bars using one 5/16” dia x 3/4” bolt and 5/16”
lock nuts with two 5/16” washers per side.
3
2
Fasten the bottom grid clips and the drop bar C-channels to the bottom side of the wire grid. The
bottom grid clips should be orientated perpendicular to the top grid clips.
Warning:
Do not overtighten drop
bars to grid clips.
Note: Install grid clip on top layer of
wires, not bottom wires.
