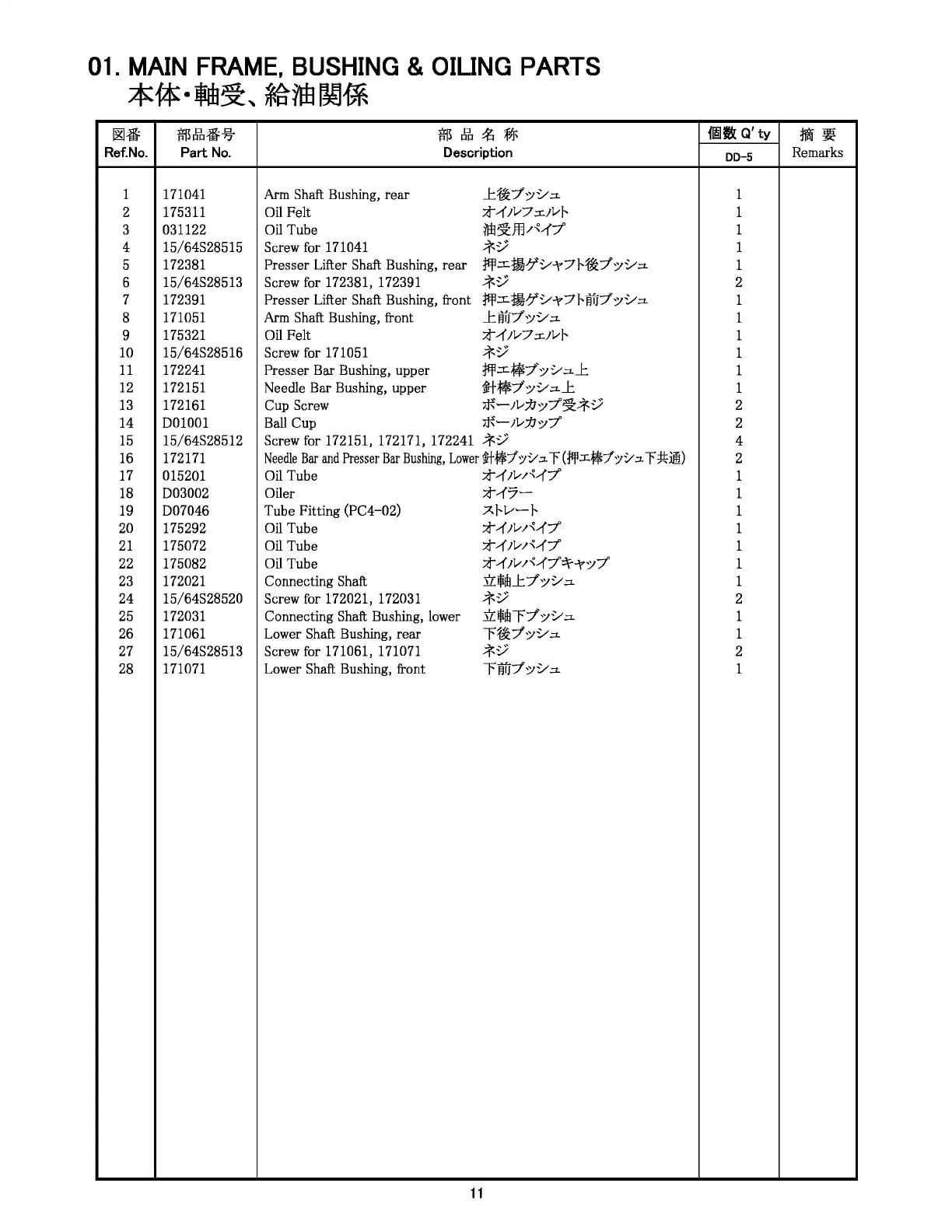

01. MAIN FRAME, BUSHING & OILING PARTS
Ref.No. Part No. Description
1 171041
Arm Shaft Bushing,
rear
2 175311 Oil Felt
3 031122 Oil Tube
4 15/64S28515 Screw for 171041
5
172381 Presser Lifter Shaft Bushing,
rear
6
15/64S28513 Screw for 172381, 172391
7
172391 Presser Lifter Shaft Bushing, front
:/-Y
8
171051 Arm Shaft Bushing, front
9
175321 Oil Felt
10
15/64S28516 Screw for 171051
11 172241 Presser Bar Bushing, upper
12 172151 Needle Bar Bushing, upper
13 172161 Cup Screw
14 D01001
Ball Cup
15 15/64S28512 Screw for 172151, 172171, 172241
16 172171
Needle Bar and Presser Bar Bushing, Lower
17 015201 Oil Tube
7.)-
18 D03002 Oiler
19 D07046
Tube Fitting (PC4-02)
20 175292 Oil Tube
-1
21 175072 Oil Tube
22 175082 Oil Tube
23 172021
Connecting Shaft
24 15/64S28520
Screw for 172021, 172031
.:=f 1/
25 172031
Connecting Shaft Bushing, lower
li!liillr-f-::;y.::,.
26 171061
Lower Shaft Bushing,
rear
r~7o/:/;:t.
27 15/64S28513
Screw for 171061, 171071
.:=f 1/
28 171071
Lower Shaft Bushing, front
rtrJ-f-::;y.::,.
11
ffil!( Q' ty
118i lJf
DD-5
Remarks
1
1
1
1
1
2
1
1
1
1
1
1
2
2
4
2
1
1
1
1
1
1
1
2
1
1
2
1
