ELECTRICAL
Outside The Coach
House battery and disconnect fuses are located in the
compartment with the shore power cord. This fuses
control the battery boost, battery disconnect, keyless
entry, hydronic heat, and LP detector. In this same
location, there are also 12 volt circuit breakers that
provide power to the house fuse panel, slideout motors,
and power awnings.
Fuse Panels
This article provides information and the location of the house and chassis fuse panels.
Fuse Panels on Super C Coaches Built on a Freightliner
Chassis
This article provides information and the location of the house and chassis fuse panels on Freightliner Super C coaches.
An additional fuse panel is located under the carpeted
floor access panel between the driver and passenger
seats.
Inside The Coach
On a Super C coaches, the house fuse panel, which
controls most of the components and appliances inside
the coach, is located in the bathroom, in the front
overhead next to the 120 volt breaker panel, or in the
rear wardrobe. This panel contains fuses and breakers
that are connected to the main appliances in the coach,
from the refrigerator and television to the lights in the
bedroom and slideouts.
There are also some external components that are fused
in the house fuse panel. For example, the fuses for the
water pump, water heater, security lights, and basement
storage lights may be located in this panel.
Additional chassis circuit fuse panel(s) are located under
the hood of the coach. The Freightliner chassis manual
contains detailed information on what fuses are located
under the hood.

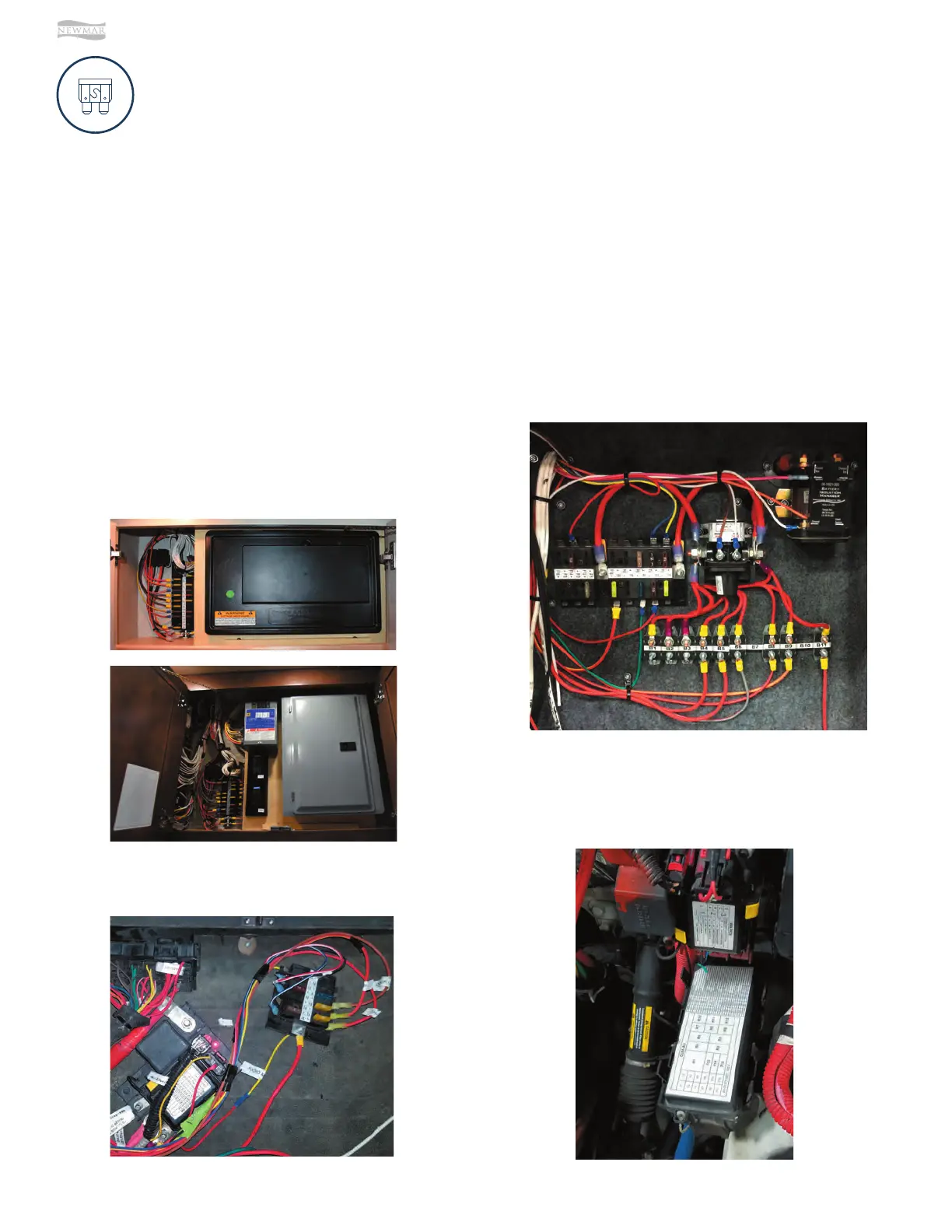

Shore Power Compartment Fuse Example
