NexLink NL102 User Manual
12

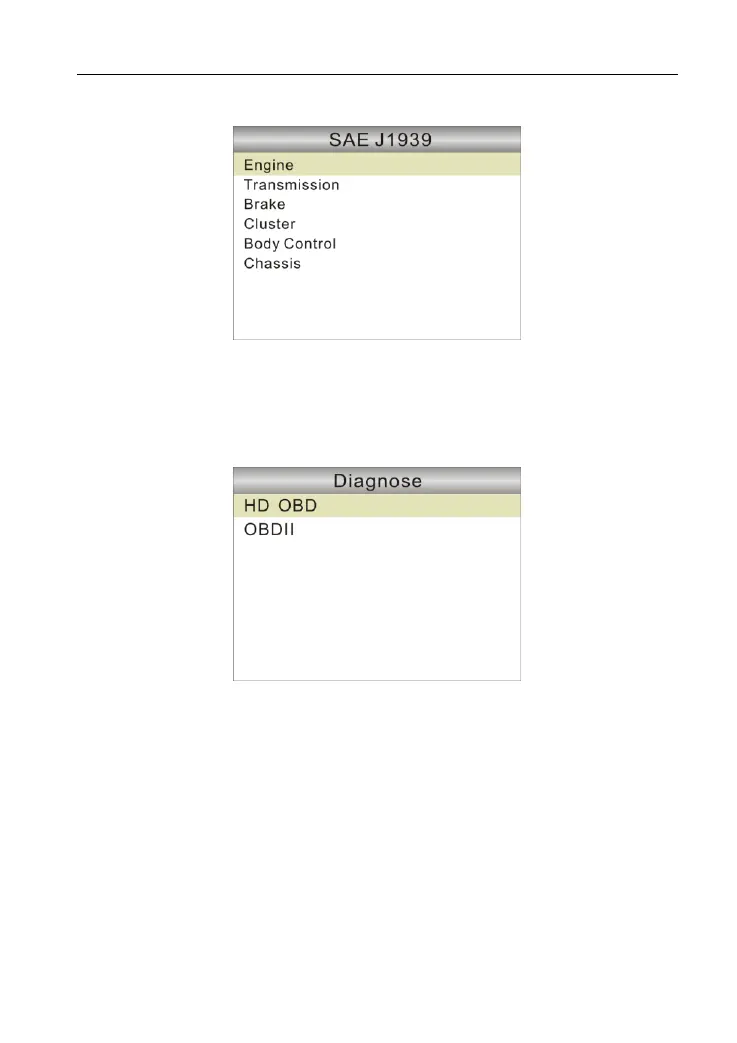

Figure 5-3
For detailed operations, please refer to
Chapter 5.1 “HD OBD Diagnosing”
.
If scanning failure occurs, the system will enter the screen as shown in Figure
5-4:
Figure 5-4
In this case, follow the diagnosis flowchart shown as below to proceed:
To Next Page
