3. Product Descriptions
3.1 Outline

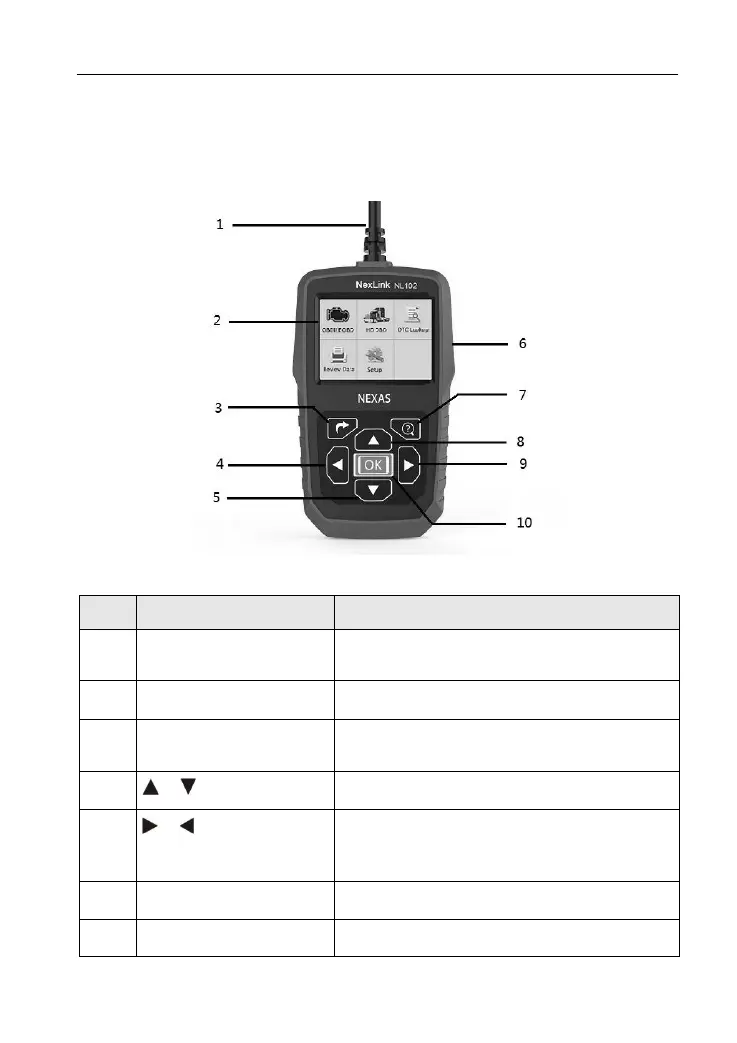

Figure 3-1
No.
Name
Descriptions
①
OBD II Cable
Connects the NL102 to the vehicle’s Data
Link Connector (DLC).
②
LCD display
Indicates test results.
③
ESC button
Confirms a selection (or action) from menu
list.
⑤/⑧
/
button
Move cursor up or down for selection.
④/⑨
/
button
Move cursor right or left for selection; Or turn
page up or down when more than one page
is displayed.
⑥
USB port
Connects to computer to update online.
⑩
OK button
Returns to previous menu.
