TDCONTROLLER USER GUIDE
___________________________________________________________________________________________________
P.21
Fuse holder (PS15)
When necessary, the fuse should be replaced by a fuse of the same rating
• for 230V : T100mAL250V
• for 115V : T200mAL250V
Mains Socket (PS15)
WARNING : This appliance must be earthed.
The socket is compatible with mains supply flexible cords which comply with IEC Publication 227.

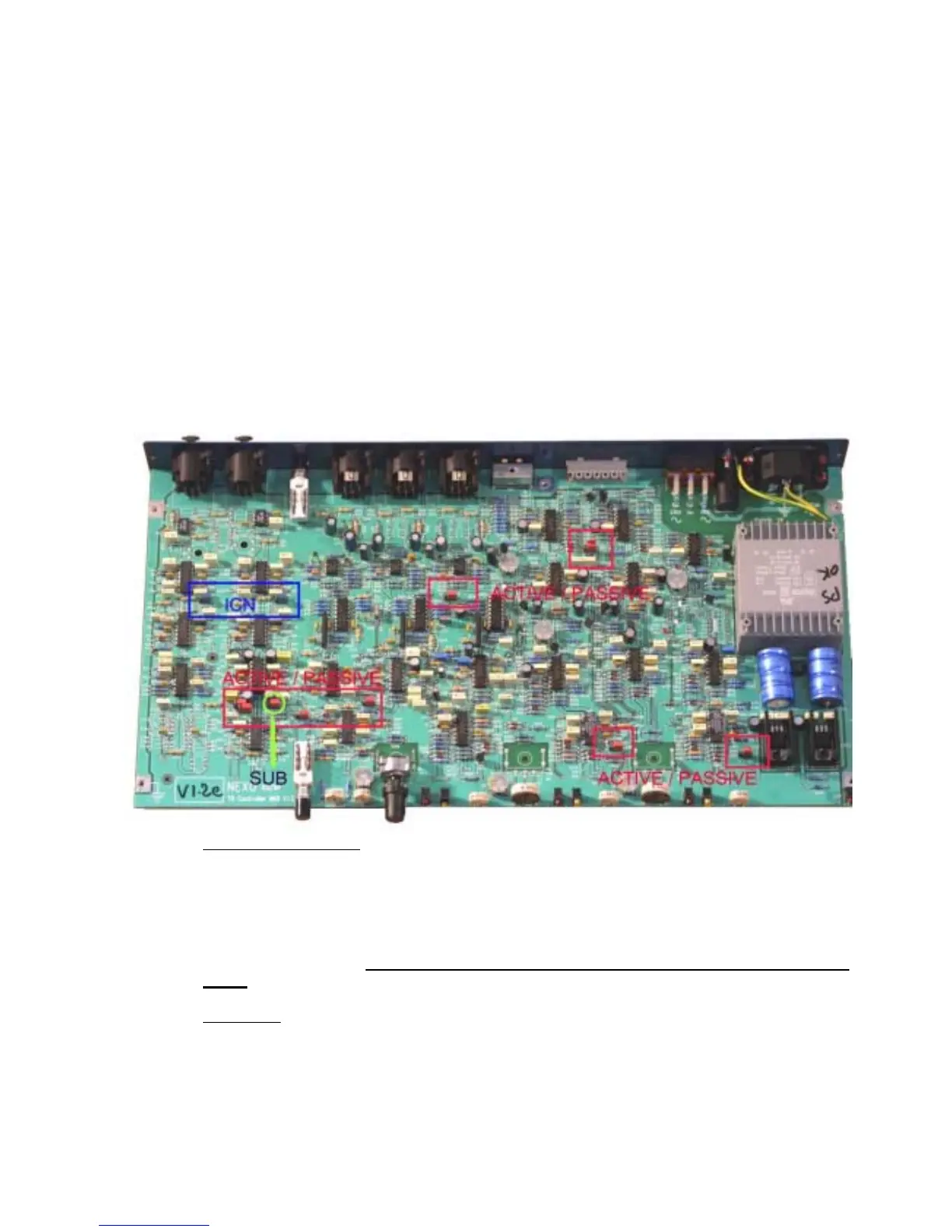

Functions requiring the opening of the TDcontroller
Active / Passive switching
The switching between active mode and passive mode is made by 9 RED jumpers, designated J3-J4-J5-
J8-J9-J10-J11-J12-J13.
All 9 jumpers must always be in the same position; right side for passive mode (label « P », left side for
active mode (label « A »). Incorrect jumper selection may damage your speakers and impair sound
quality !
ICN jumpers
If your PS15 cabinet is equipped with the Impedance Compensation Network (ICN) -since sn 23853, the
blue Jumpers J1 & J6 must be in the « P » position (right side).

Nexo PS15 Specifications

General

Impedance	8 ohms
Drivers	15" LF, 2" HF
Type	2-way passive speaker
Power Handling	500W RMS
Dimensions	675 mm x 434 mm x 368 mm
Weight	28 kg
Recommended Amplifier Power	500 to 1000 W
Connectors	2 x NL4
Woofer	15"
Tweeter	2"
Inputs	2 x NL4
Nominal Coverage	50° - 100° horizontal x 55° vertical
HF Dispersion	50° - 100° Horizontal x 55° Vertical (Rotatable)
